Agricultural Deep Water Well Hydraulic Drilling Rig 3 Wheeled Vehicle Mounted

1 Set
MOQ
Agricultural Deep Water Well Hydraulic Drilling Rig 3 Wheeled Vehicle Mounted
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO: XYC-200A
Motor: Diesel Engine
Drill Hole Diameter: 76-300mm
Drill Hole Depth: 200m
Bit Type: Drag Bit
Drilling Way: Rotary
Type: Tricycle Mounted Mobile
Drill Tower: Hydraulic Lifting Tower
Moving Type: Tricycle Chassis
Engine Brand: Changchai Or Jianghuai
Usage: Geotechnical Investigation, Ore, Water Well, Coal
Power Type: Diesel
Highlight:

Water Well Hydraulic Drilling Rig

,

3 Wheeled Hydraulic Drilling Rig

,

Agricultural Hydraulic Drilling Rig

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XYC-200A
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Supply Ability: 50 Sets/Month
Product Description

Agricultural Three Wheeled Hydraulic Water Well Drilling Machine, Vehicle Mounted Deep Drilling Equipment, Civil Engineering Drilling Rig



1, It is widely used in the geological general investigation and exploration, road, railway, port, bridge, water conservancy, tunnel and tall building basic exploration, kinds of hole in concrete structure, river, levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioner, and etc.

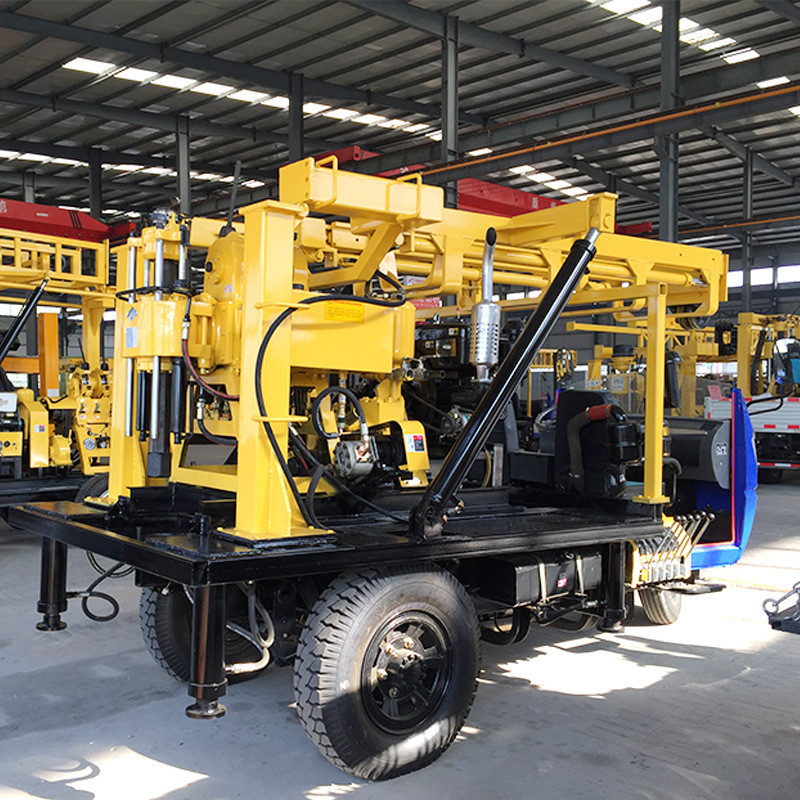

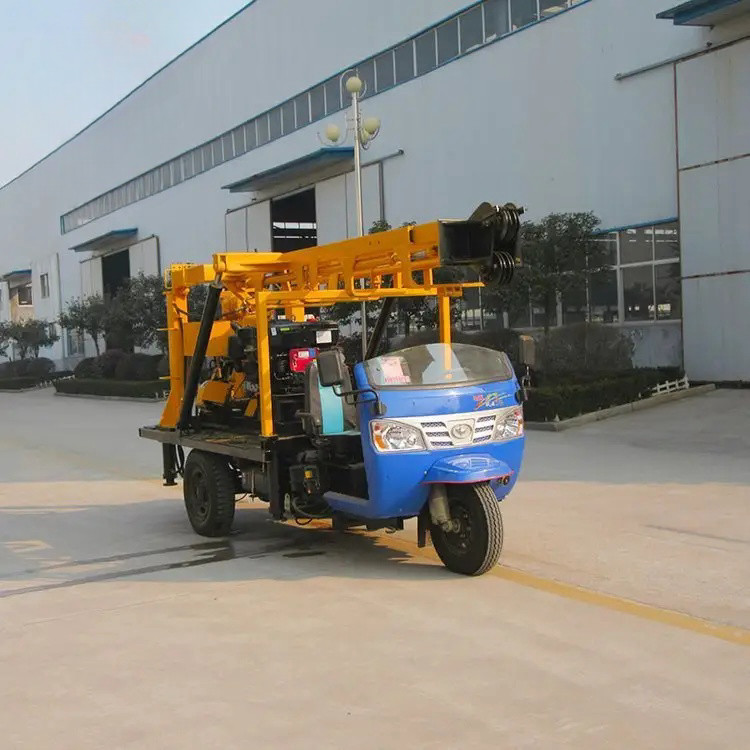

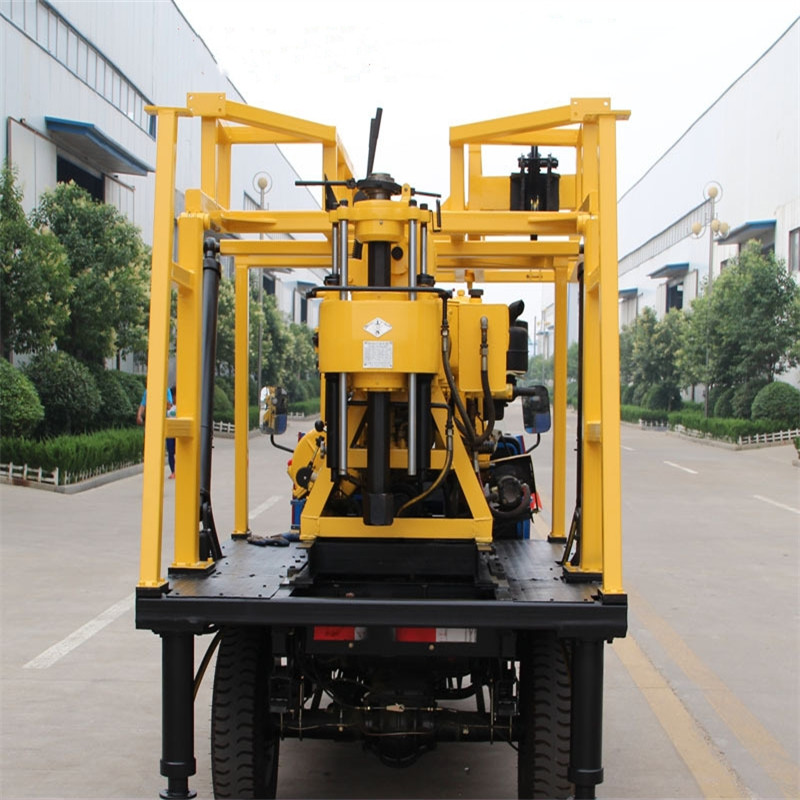

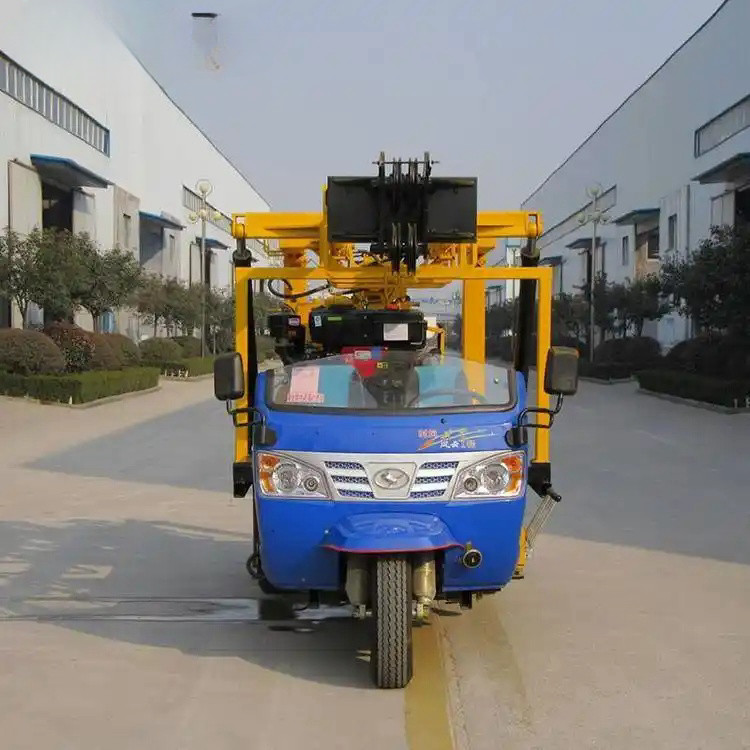

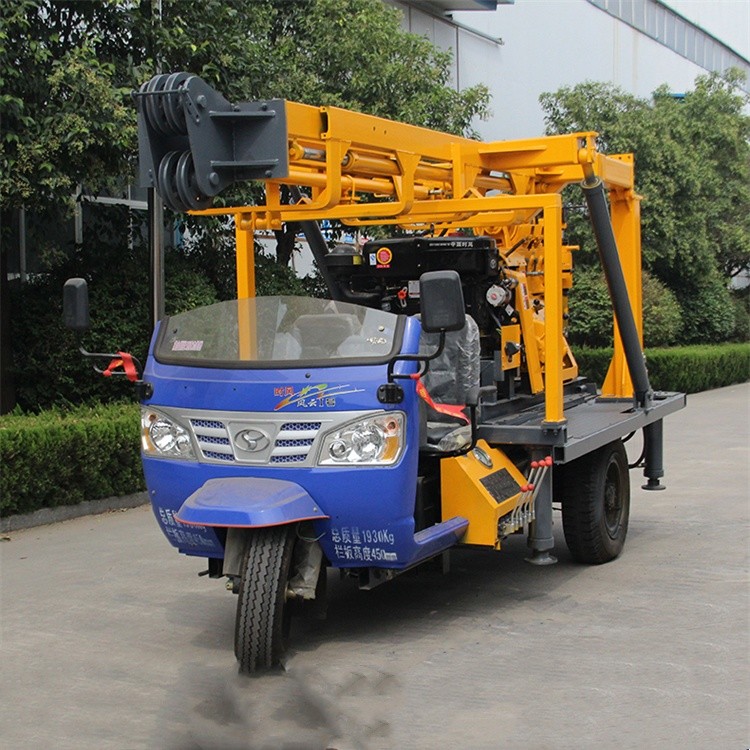

2, XYC-200A tricycle-mounted water well drilling rig is multi-functional hydraulic vehicle-mounted water well drilling rig.
 The tricycle is tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
 XYC-200A tricycle-mountedwater well drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
 The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
 The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
 The rig is adopted 53*59 drilling rod, which has high rigidity and strong delivery torque
 Equipped with national patent technology---taper clutch, made the machine easy to operate and free of maintenance.
 Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
 Vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.



3Technical specification of XYC-200A tricycle-mounted water well drilling rig

Model XYC-200A
Drilling depth 200m
Max. open hole diameter 75-260mm
End hole diameter(mm) 75
Drill rod diameter 50mm
Drilling tower height 6500mm
Drilling angle 90-75
Spindle
Spindle speed 64/128/287/557r/min
Spindle stroke 450mm
Hoist
Max. single line hoisting capacity 1600kg
Single line lifting speed 17/35/75/151r/min
Tightrope diameter 12.5mm
Tightrope cubic measure 35mm
Hug floodgate belt width 70mm
Mud Pump
Type Horizontal Single Urn Twin-action
Discharge displacement 170l/min.
Diesel S1115 22HP
Electric motor 15kw,1440r/min
Max. pressure 1.5mpa
Work pressure 0.7mpa
Water inlet diameter 30mm
Water outlet diameter 25mm
Triangle conveyre belt B1728mm
Chassis Tricar

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
