Home /Products/Water Well Drilling Rig/60m 80m Small Water Well Drilling Rig Portable Drilling Rig

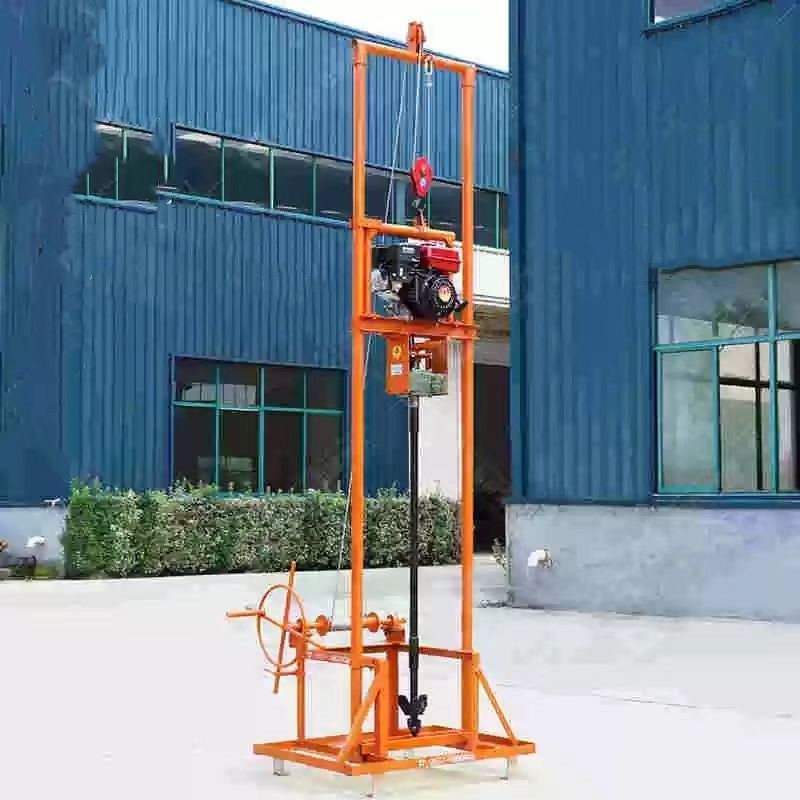

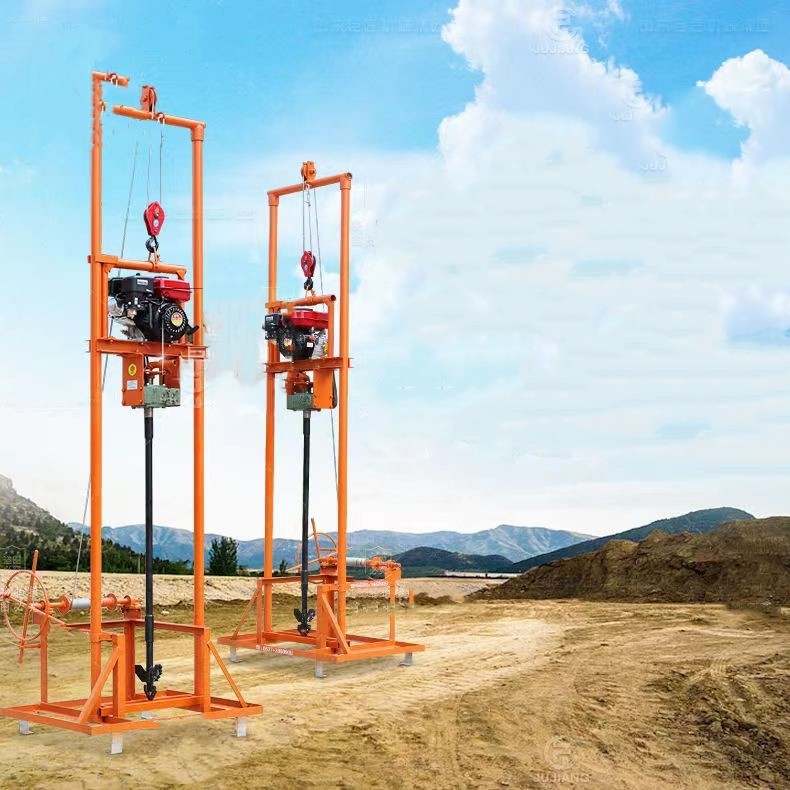

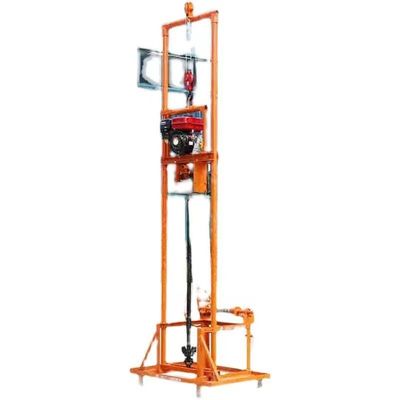

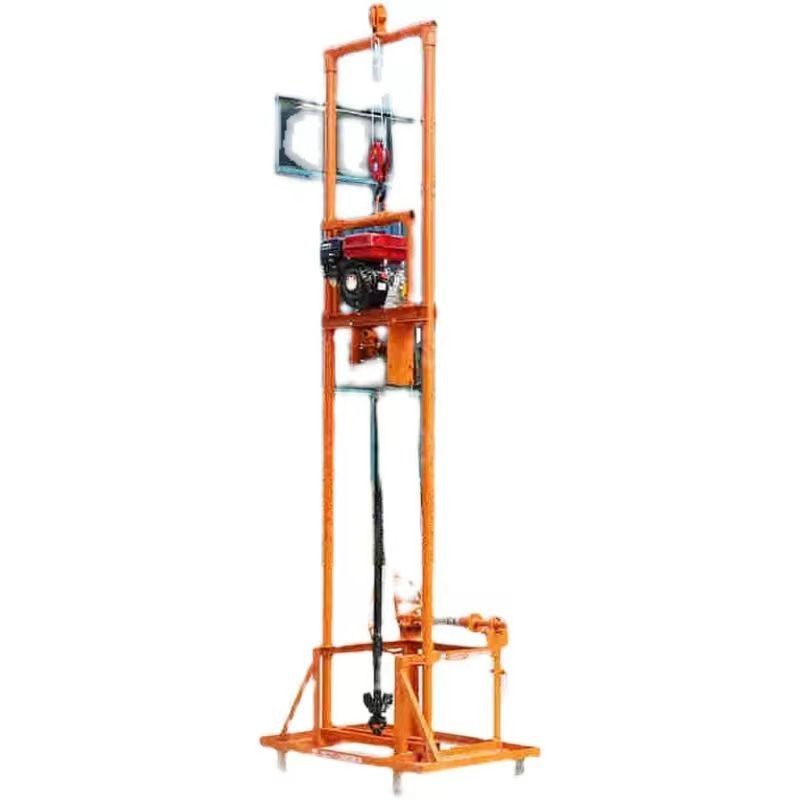

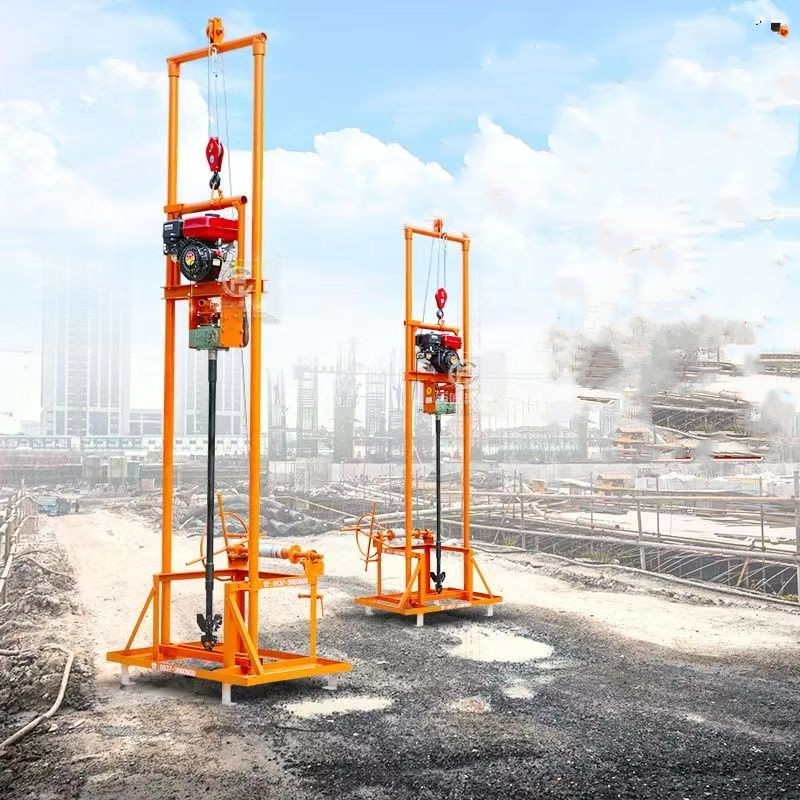

60m 80m Small Water Well Drilling Rig Portable Drilling Rig

1 Set
MOQ
60m 80m Small Water Well Drilling Rig Portable Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Small Water Well Drilling Rig

,

80m Water Well Drilling Rig

,

60m Water Well Drilling Rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: QYJ-100
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

QYJ-100 portable borehole water well drilling machine is mainly used for geothermal drilling, farm irrigation , house yard,
gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small
building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.

Features:
1. Light weight. The main engine is only weighted 0.135tons ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8. The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about

PRODUCT SPECIFICATIONS
Technical Parameters of Water Well Drilling Rig
1
Max. Drilling Diameter
70-300mm
2
Max. Drilling Depth
60-80m
3
Total Power
8.8 kw
4
Engine Power
1.2kw
5
Lifting Power
1.0kw
6
Pump
2.2kw,220V(flow head 46m)
7
Capacity of hoist
1.0t
8
Height of tower
3m
9
Total Weight
365KGS(45m drill rods)
10
Drilling Rod Length
1.2/1.5m piece
11
Diameter of Drilling Rod
33mm/42mm
Tag:

Well Drilling Rig

Core Drill Equipment

Water Well Drilling Machine
