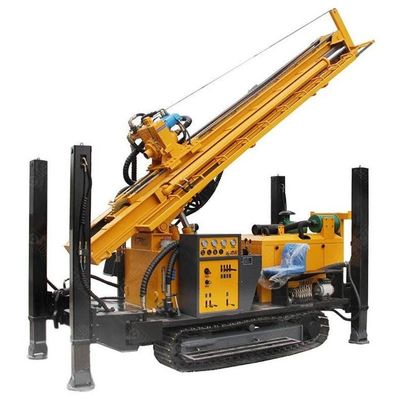

Crawler Water Well Drilling Rig Steel Reinforced Tracks 350m 380m With Root Pipes

1 Set
MOQ
Crawler Water Well Drilling Rig Steel Reinforced Tracks 350m 380m With Root Pipes
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: JDL-350
Condition: New
Motor: DC Motor
Drill Hole Diameter: 140-325mm
Drill Hole Depth: 350m
Bit Type: Diamond Bit
Drilling Way: Rotary
Type: Crawler
The Weight: 8.6t
Drill Pipe Diameter: 89/102mm
Drill Pipe Length: 1.5m/2.0m/3.0m/6.0,M
One-Time Advancement Length: 6.6m
Fast Feeding Speed: 33m/Min
Engine Power: 91kw
Working Pressure: 1.7-3.4MPa
Swing Torque: 6200-8500n.M
Air Consumption: 17-36m³/Min
Swing Speed: 66-135rpm
The Penetration Effciency: 15-35m/H
Specification: 6000*2000*2550mm
Origin: China
Highlight:

350m Water Well Drilling Rig

,

380m Water Well Drilling Rig

,

Crawler Water Well Drilling Tracks
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: JDL-350
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Supply Ability: 30 Sets/Month
Product Description



Product Description:

1. Double motor drive rotation, large torque, small size, adjustable speed
2. Adopt triple gear pump to ensure the oil pump is durable and reliable
3. Combined platform, beautiful design, equipped with pedals, easy to operate.
4. Equipped with clutch and auxiliary radiator, suitable for areas with high altitude and cold climate.
5. German technology walking motor; high torque and climbing ability, low failure rate
6. Dual systems can be installed: 1. Pneumatic system with air compressor 2. Mud pump system with mud pump



Product Parameters:



JDL 350 crawler water well drilling rig


The weight(T)
8.6
Drill pipe diameter(mm)
Φ89 Φ102
The hole diameter(mm)
140-325
Drill pipe length(m)
1.5m 2.0m 3.0m 6.0m
Drilling depth(m)
350
Rig lifting force(T)
22
One-time advance length(m)
6.6
Rapid rise speed(m/min)
18
Walking speed(km/h)
2.5
Fast feeding speed(m/min)
33
Climbing angles(Max.)
30
Width of loading(m)
2.7
Equipped capacitor(kw)
92
Hoisting force of winch(T)
2
Using air pressure(MPA)
1.7-3.4
Swing torque(N.m)
6200-8500
Air consumption(m³/min)
17-36
Dimension(mm)
6000×2000×2550
Swing speed(rpm)
66-135
Equipped with hammer
Medium and high wind pressure series
The penetration efficiency(m/h)
15-35
High leg stroke(m)
1.4
The engine brand
Yuchai engine

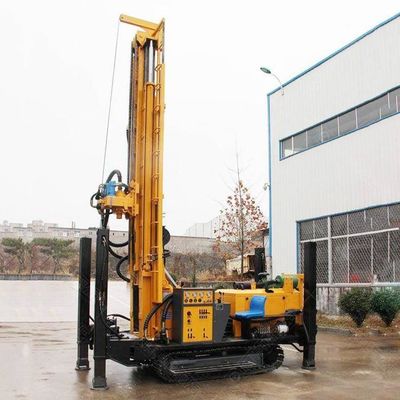

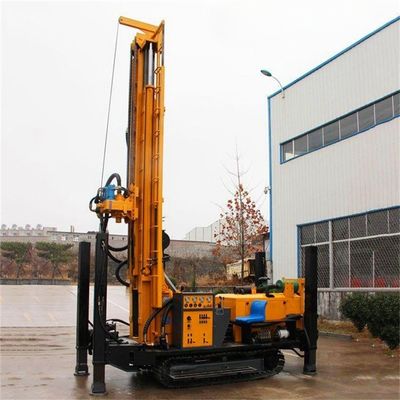

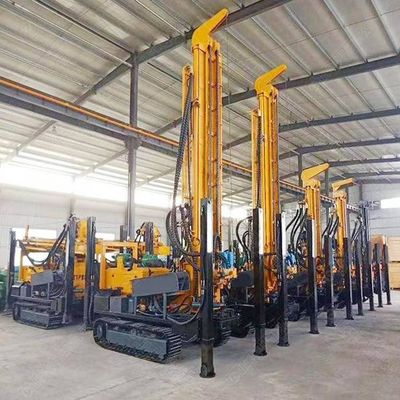

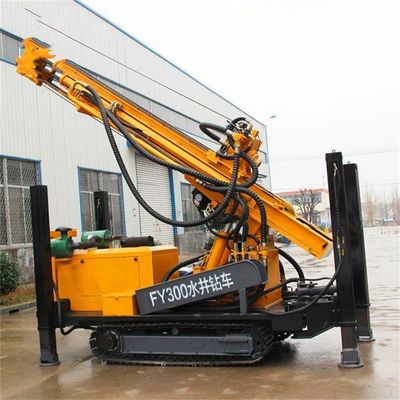

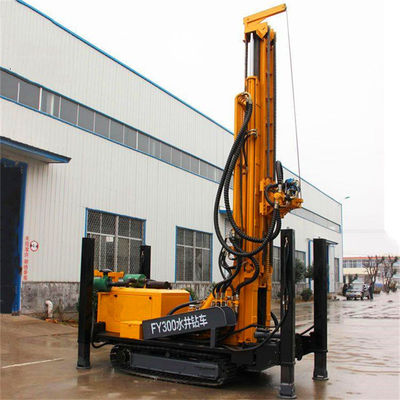

Crawler Water Well Drilling Rig Steel Reinforced Tracks 350m 380m With Root Pipes 0Crawler Water Well Drilling Rig Steel Reinforced Tracks 350m 380m With Root Pipes 1Crawler Water Well Drilling Rig Steel Reinforced Tracks 350m 380m With Root Pipes 2Crawler Water Well Drilling Rig Steel Reinforced Tracks 350m 380m With Root Pipes 3Crawler Water Well Drilling Rig Steel Reinforced Tracks 350m 380m With Root Pipes 4
