Name: Crawler Water Well Drilling Rig Machine 180m
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: JDL-180
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO: JDL180

Motor: DC Motor

Drill Hole Diameter: 140-254mm

Drill Hole Depth: 180m

Bit Type: Diamond Bit

Drilling Way: Rotary

Type: Crawler

The Weight: 4.5t

Drill Pipe Diameter: 76/89mm

Drill Pipe Length: 1.5m/2.0m/3.0m

Engine Power: 55kw

Working Pressure: 1.7-2.5MPa

Swing Torque: 3200-4600n.M

Air Consumption: 7-31m³/Min

Highlight:

Crawler Water Well Drilling Rig

180m Water Well Drilling Rig

Crawler Drilling Rig Machine

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: JDL-180

Payment & Shipping Terms

Packaging Details: in New Strong Plywood Case

Supply Ability: 30 Sets/Month

Gallery

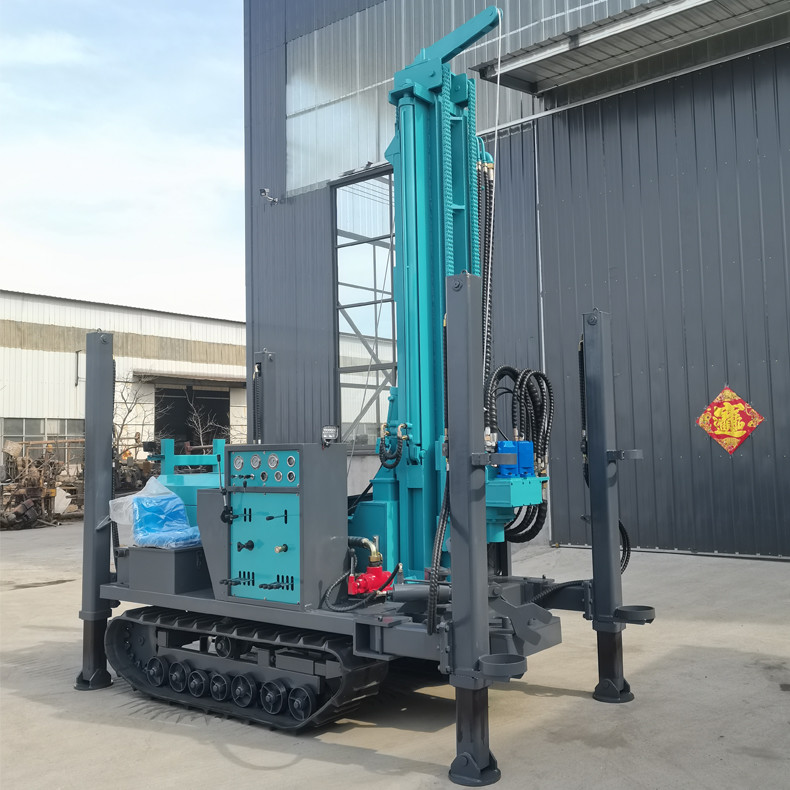

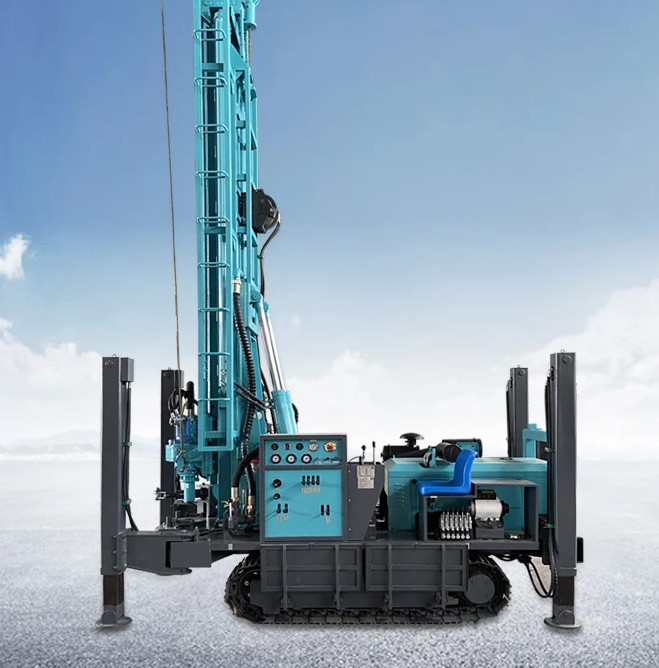

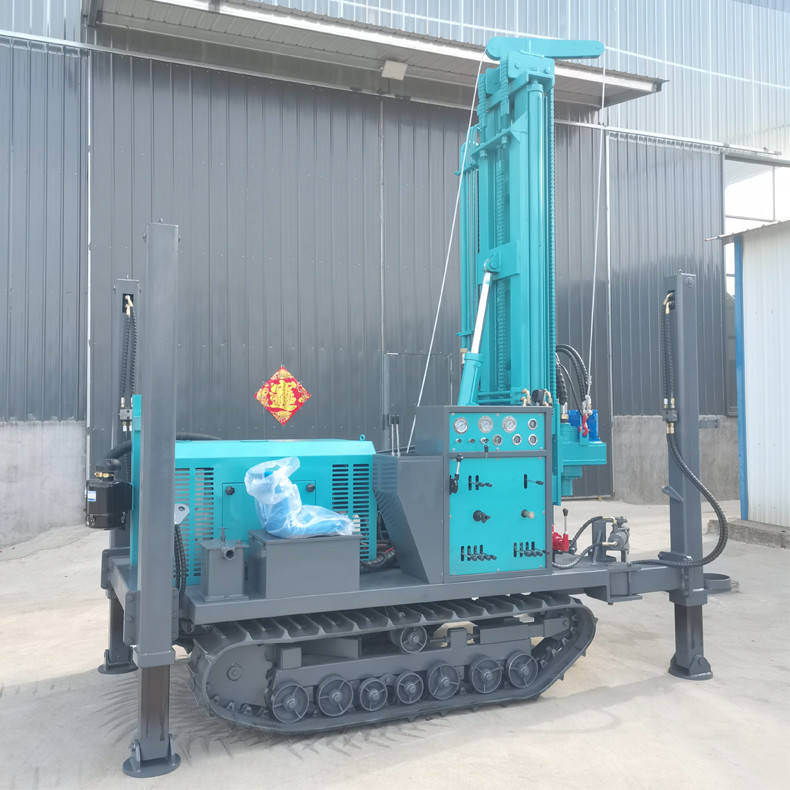

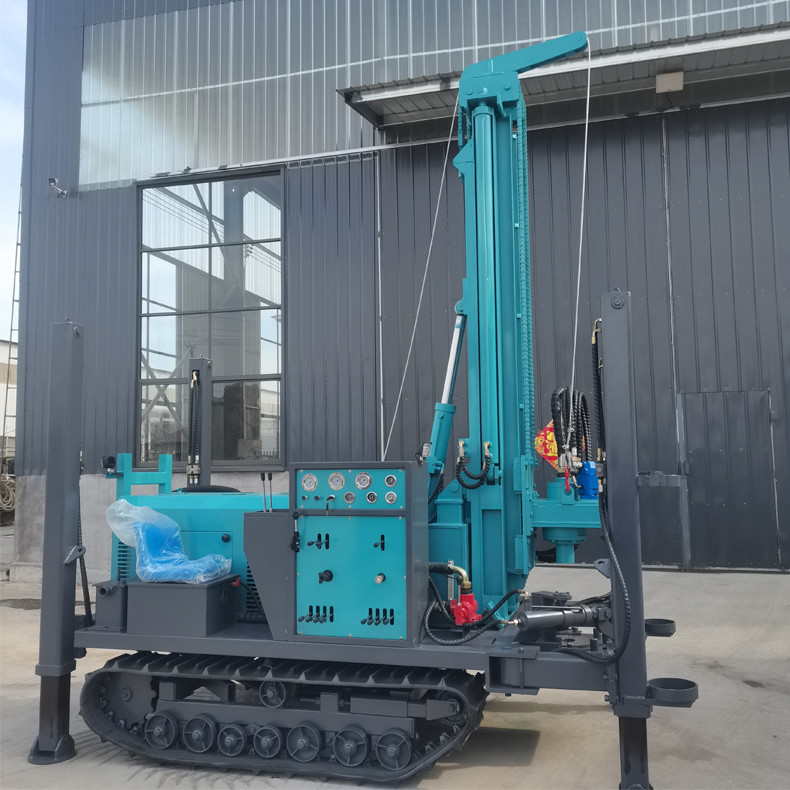

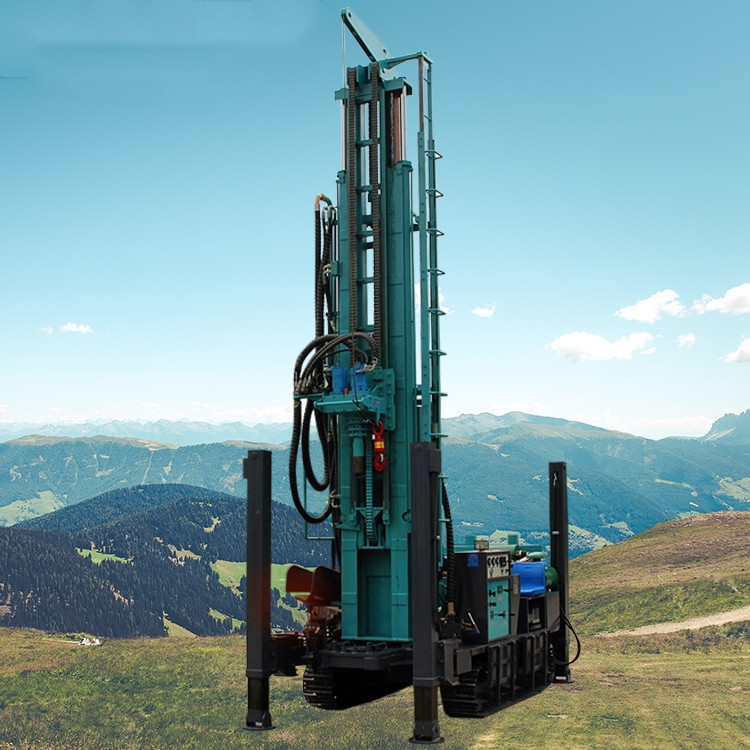

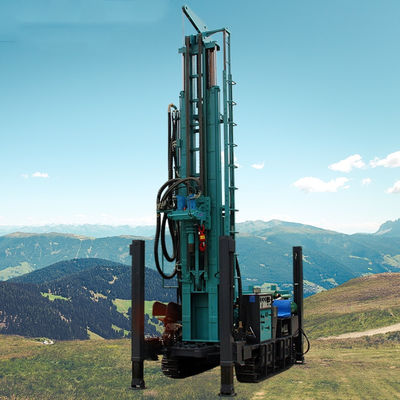

Crawler Water Well Drilling Rig Machine 180m

Product Description

180m Crawler Water Well Drilling Rig Machine

Product Description:

1. Equipped with 55KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks, high flexibility, less damage to hard roads.
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The operating system is simple and easy to operate
7. Easy to load and unload on the truck
8. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump

Product Parameters:

JDL 180 Water well drilling rig
The weight (T)	4.5
The hole diameter (mm)	140-254
Drilling depth (m)	180m
One-time advance length (m)	3.3
Walking speed (km/h)	2.5
Climbing angles (Max.)	30
Equipped capacitor (KW)	55KW
Using air pressure (MPA)	1.7-2.5
Air consumption (m3/min)	17-31
Drill pipe diameter (mm)	76/89
Drill pipe length (m)	1.5m/2.0m/3.0,m
Rig lifting force (T)	15
Swing speed (rpm)	45-70
Swing torque (N.m)	3200-4600
Dimension (mm)	395016302250
