Home /Products/Water Well Drilling Rig/Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine

Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine

1 Set
MOQ
Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Motor: DC Motor
Drill Hole Diameter: 140-325mm
Drill Hole Depth: 350m
Bit Type: Diamond Bit
Drilling Way: Rotary
Type: Crawler
The Weight: 8.6t
Drill Pipe Diameter: 89/102mm
Drill Pipe Length: 1.5m/2.0m/3.0m/6.0,M
One-Time Advancement Length: 6.6m
Fast Feeding Speed: 33m/Min
Engine Power: 91kw
Working Pressure: 1.7-3.4MPa
Swing Torque: 6200-8500n.M
Air Consumption: 17-36m³/Min
Swing Speed: 66-135rpm
The Penetration Effciency: 15-35m/H
Highlight:

200m water drilling rig

,

200m water well drilling rig

,

diesel water drilling rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: JDL-350
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Supply Ability: 30 Sets/Month
Product Description



Product Description:

Rotary full hydraulic controlled water well drilling rigs are multifunctional, it can be used with air compressor, mud pump. The portable drilling rigs are not only designed for water, they can also be used in all conditions based on pore-forming purpose. This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.



Droduct Parameters:

Factory direct sales of various water well drilling rigs

Model
JDL280
JDL300
JDL350
JDL450
JDL200
The weight(T)
7.6
7.2
8.6
9.4
5
Drill pipe diameter(mm)
76/89
76/89/102
89/102
89/102
76/89
The hole diameter(mm)
140-305
140-325
140-325
140-350
140-254
Drill pipe lenght(m)
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m/6.0m
1.5/2.0/3.0/6.0m
1.5/2.0/3.0m
Drilling depth(m)
280m
300m
350m
450m
200m
Rig lifting force(T)
17
18
22
25
13
One-tine advance length(m)
6.6
3.3/4.8
6.6
6.6
3.3
Equipped capacitor(kw)
74
85
92
103
65
Hoisting force of winch(T)
2
2
2
2
1.5
Swing torque(N.m)
4500-6000
5700-7500
6200-8500
7000-9500
3400-4700
Dimension(mm)
5900*1850*2360
4100*2000*2500
6000*2000*2550
5950*2100*2600
3950*1750*22
50
Swing speed(rpm)
40-70
40-70
66-135
50-135
45-70
The penetration effciency(m/h)
15-35
15-35
15-35
15-35
10-35
Rapid rise speed(m/min)
25
22
18
20
30
Walking speed(km/h)
2.5
2.5
2.5
2.5
2.5
Fast feeding speed(m/min)
30
40
33
40
60

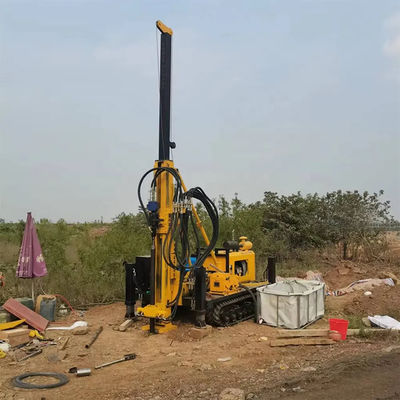

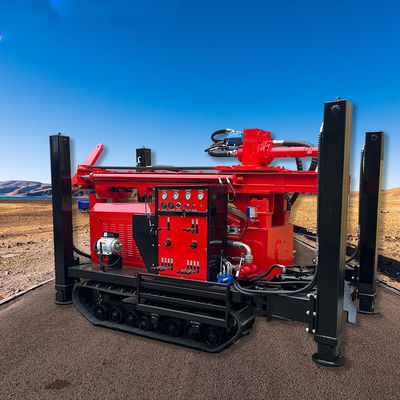

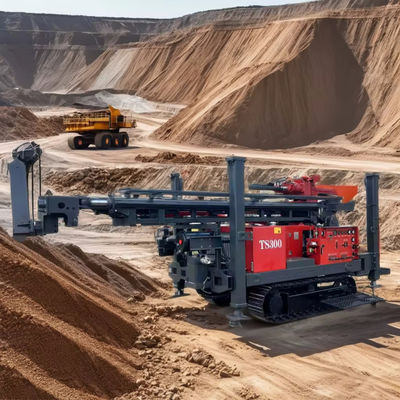

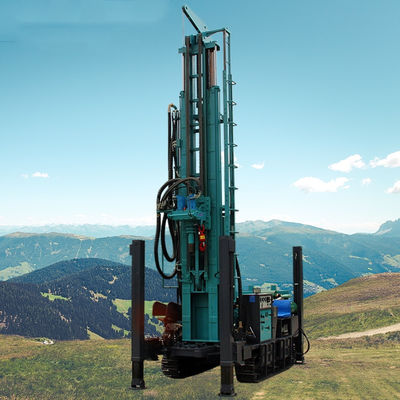

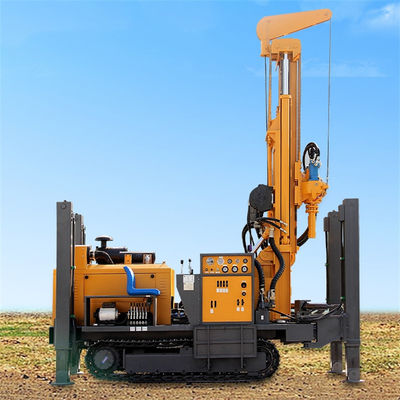

Product Images:

Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 0Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 1Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 2Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 3Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 4Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 5Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 6Crawler Water Well Drilling Rig with Drilling Depth 200m、300m、500m and Diesel Engine 7
