Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Motor: Diesel Engine

Drill Hole Diameter: 140-305mm

Drill Hole Depth: 150m

Type: Four-Wheel Trailer

Applicable Industries: Manufacturing Plant, Farms, Home Use, Constructio

Power Type: Diesel

Core Components: Motor, Pump, Engine

Highlight:

diesel water drilling rig

diesel water well drilling rig

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: QCY

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 50 Sets/Month

Gallery

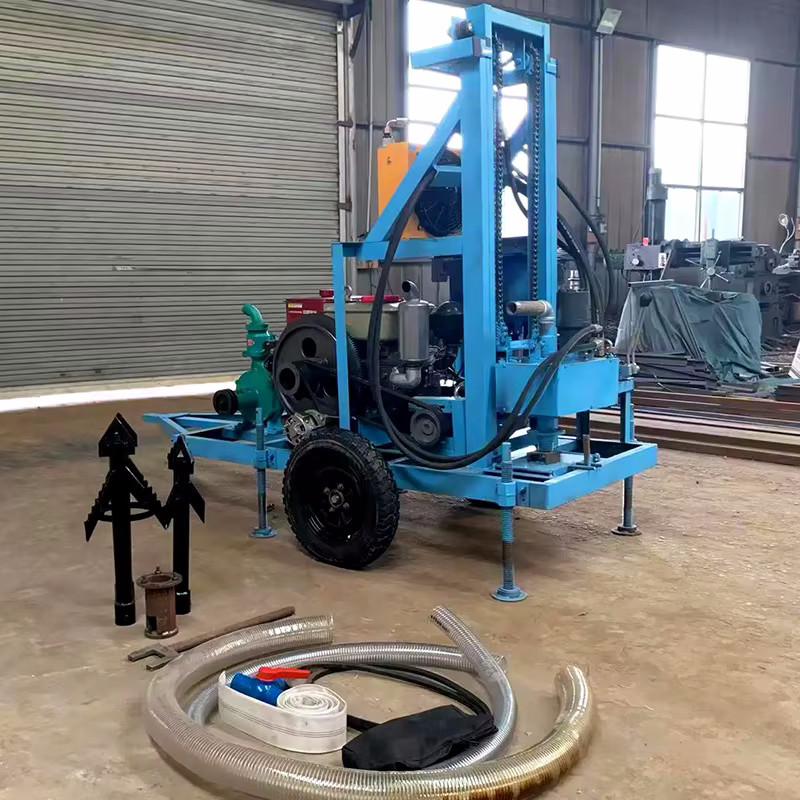

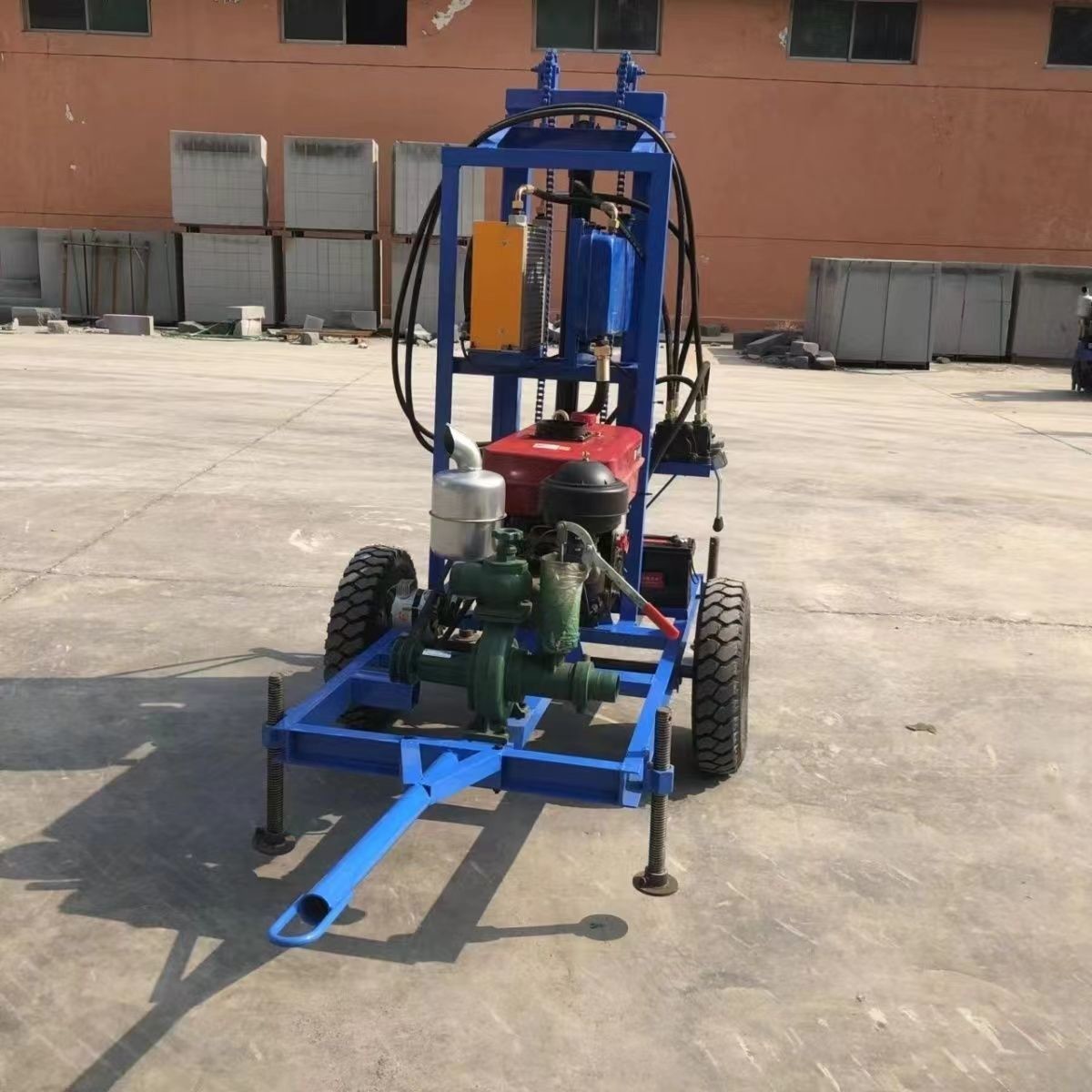

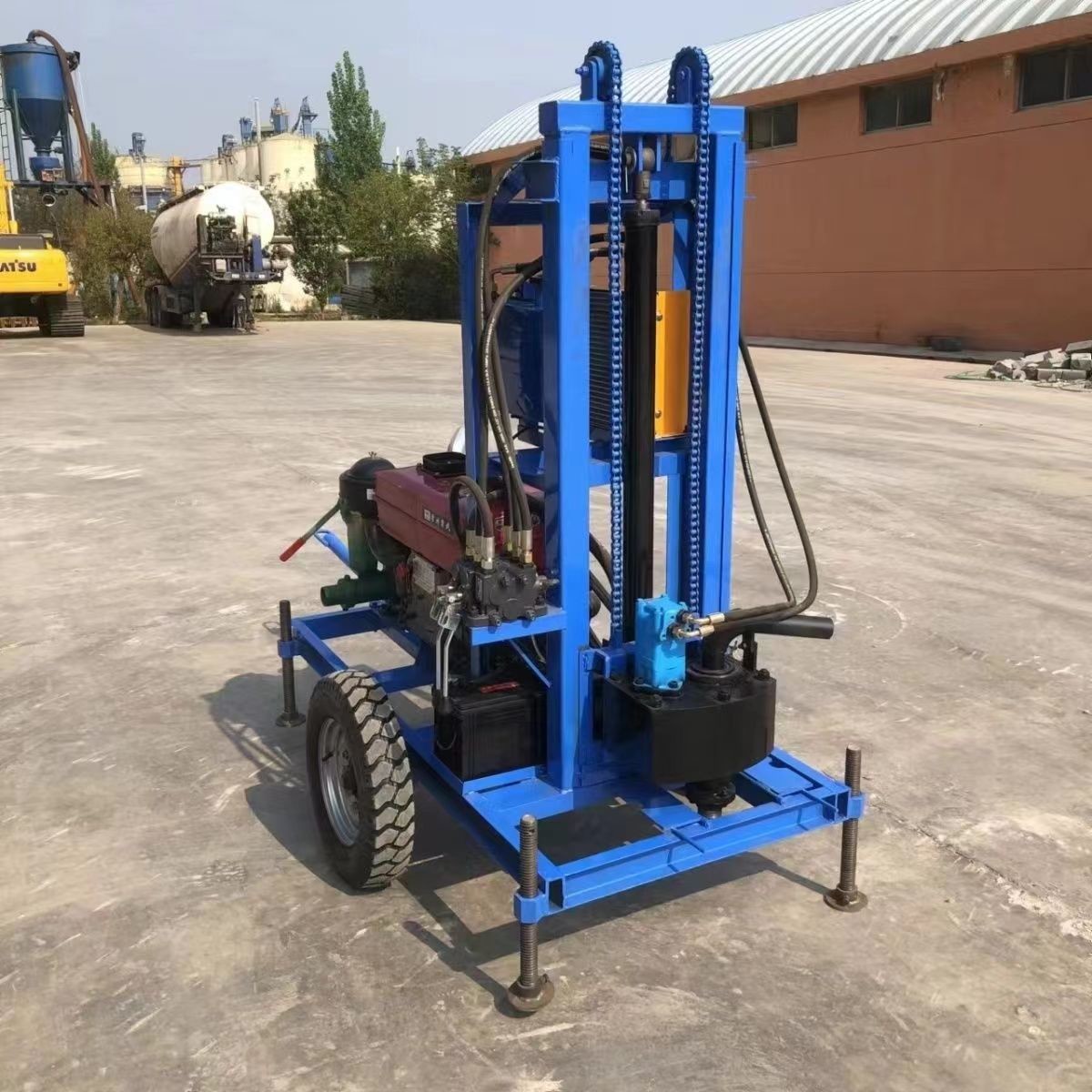

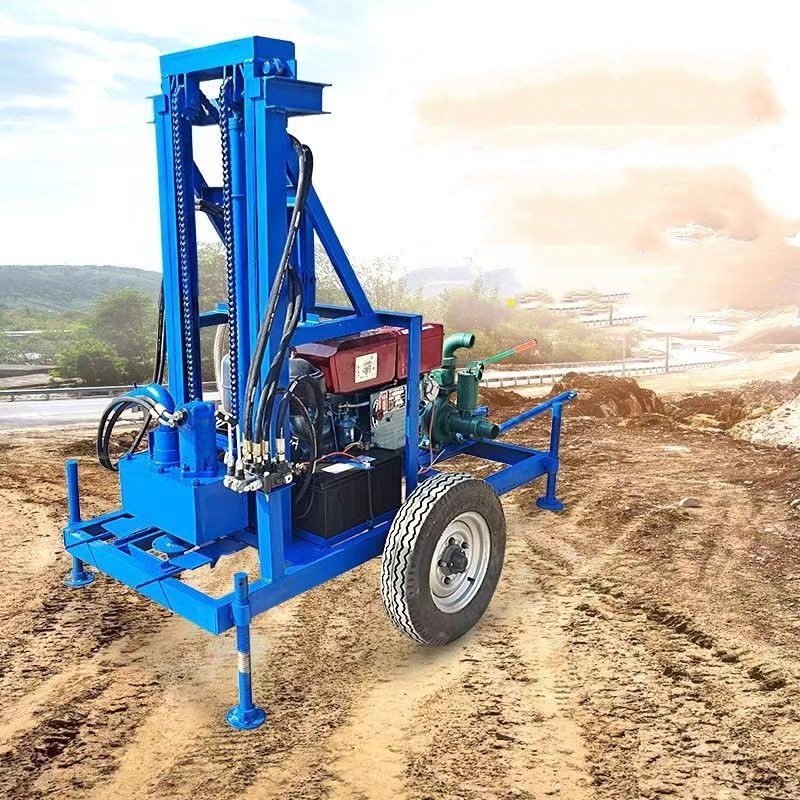

Hot Sale Mobile Diesel Small Water Well Soil Drill 150m Depth

Product Description

Hot Sale Mobile Diesel Small Water Well Soil Drill 150m Depth

Small Portable Diesel Rotary Diesel Water Well Mini Rock Drilling Rig Machine for Sale with Air Compressor Drill Rig
Small diesel hydraulic drilling machine is used in household drilling, factory drilling, taking domestic water, farmland
irrigation wells, installing water air conditioner, solar water heater, piling on site, etc.
It is suitable for soil layer and quicksand layer. If there is stone, it can be equipped with diamond coring bit.

Small diesel hydraulic well drilling rigs are used for drilling wells in households, drilling wells in factories, taking domestic water, irrigating wells in farmland, installing water air conditioners, solar water heaters, piling on construction sites, etc.

Specification

Model	QCY150D
Principle	Positive Cycle
Hydraulic Power	10Hp-Diesel Engine
Centrifugal Pump Power	8Hp-Diesel Engine
Max Drilling Depth	150m
Max Drilling Diameter	420mm
Drilling Pipe	51mm diameter, 1.5m/piece

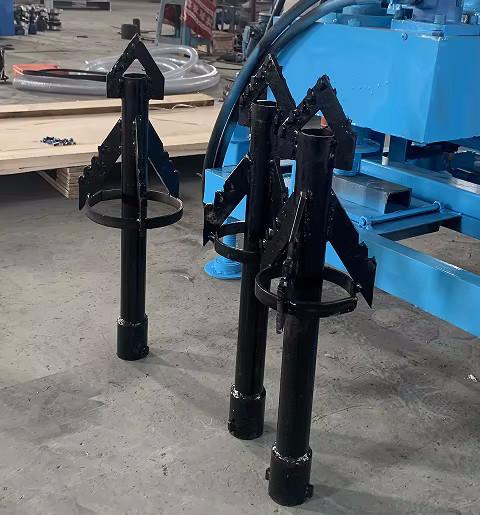

Drilling Bit	Alloy Steel For Soil	one small bit (60mm,90mm) +one big bit (160-300mm)
	PDC For Rocks	diameter should be less than 150mm
Other Parts For One Complete Machine	High pressure water pump-1 unit
	High pressure water pipe-5m
	Tools,seat,oil seal,English manual,Etc
Machine size	93cm * 70cm*180cm
Machine weight	320kg
Drilling method	rotary
Size unfolding height	2.5m
Drilling tools includes	Diesel engine, 150m rods, 2 3-wing bit, high pressure water pump,
	5m water pipe, manual
