Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig

1 Set
MOQ
Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig
Features Gallery Product Description Request A Quote
Features
Specifications
Model: 200type
Drill Hole Depth: 200m
Drill Hole Diameter: 76-220mm
Usage: Geotechnical Investigation, Water Well
Type: Core Drill Rig
Origin: China
Highlight:

geological crawler drilling rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XY-150 type
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig



Widely applicable
This drilling rig is suitable for drilling wells, water and electricity, transportation, bridges, dam foundations, survey and exploration, and geophysics
Exploration, road and building exploration, as well as drilling projects such as blasting holes

Model (YY series products) XY-130Y/130YY XY-18OY/18OYY XY-200Y/200YY
Depth (m) 130 180 200
Opening diameter. (mm) 220 220 325
Endend hole dia. (mm) 75 75 75
Rod dia (mm) 42-60 42-60 42-60
Drilling angle (°) 90-75 90-75 90-75
Traction power (kw) 13.2 13.2 15
Weight without power distribution (kg) 560 610 1150
Unqualified (mm) 2.4*0.7*1.4 2.4*0.6*1.4 2.7*0.9*1.6
Speed (r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Memory lesson (mm) 450 450 450
Maximum tension (kg) 1600 2000 2400
Speed of each unit (m/min) 0.41-1.64 0.35-2.23 0.12-0.95
The diameter of the wire rope is Rope dia. (mm) φ9.3 φ9.3 φ12.5
Capacity (m) 27 35 35
Fixed load (tons) 2 2 5
Are you free on Wednesday afternoon? 6 6 6
Size specification (L/min) 95 95 145
Maximum pressure.Pressure (Mpa) 1.2 1.2 2
Time (yuan/min) 93 93 93
Water spray hose dia. (mm) 51 51 51
Pumping hose dia. (mm) 32 32 32

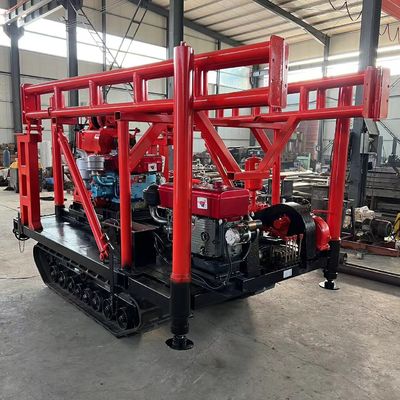

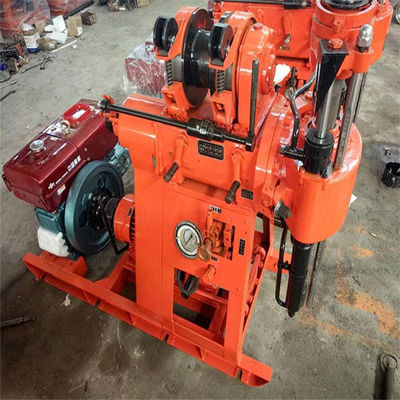

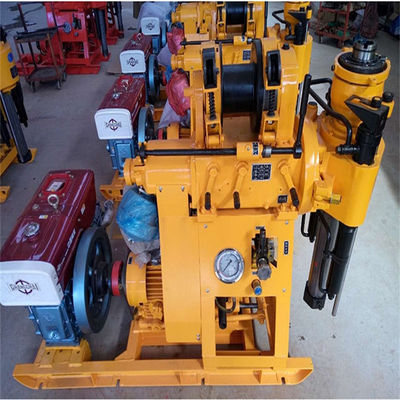

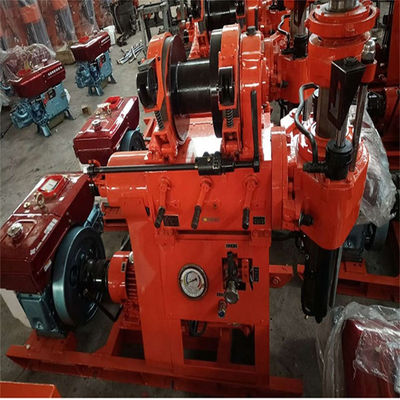

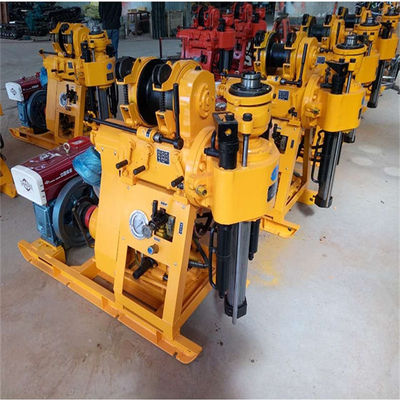

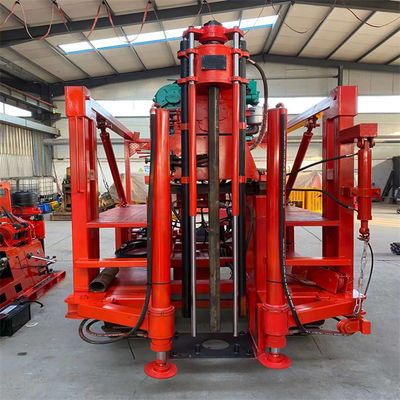

Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig 0Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig 1Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig 2Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig 3Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig 4Hydraulic rock coring drilling rig/geological exploration sampling equipment/hydraulic exploration multi-purpose engineering geological drilling rig 5
