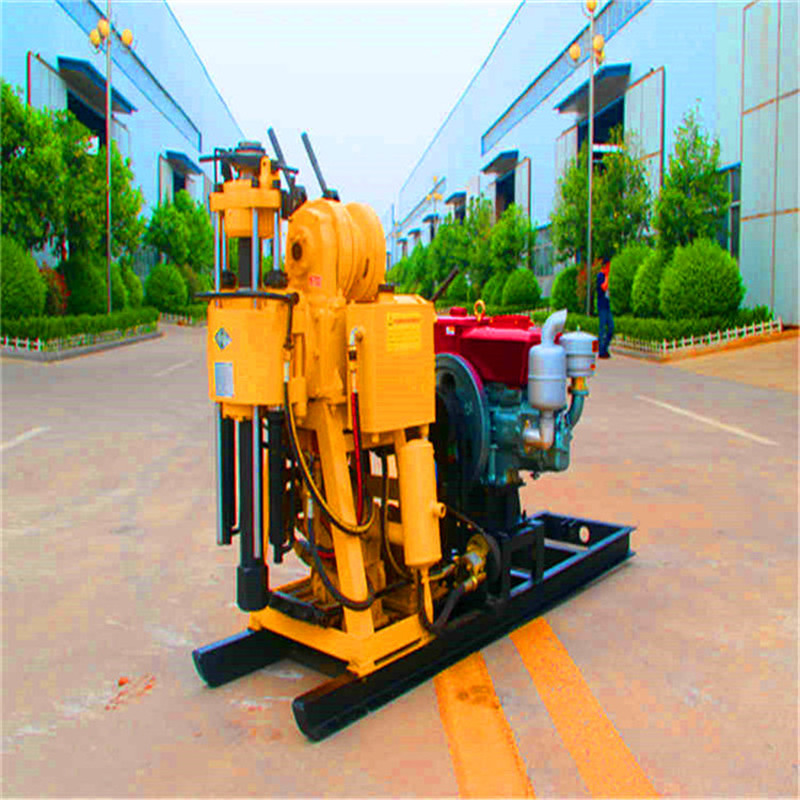

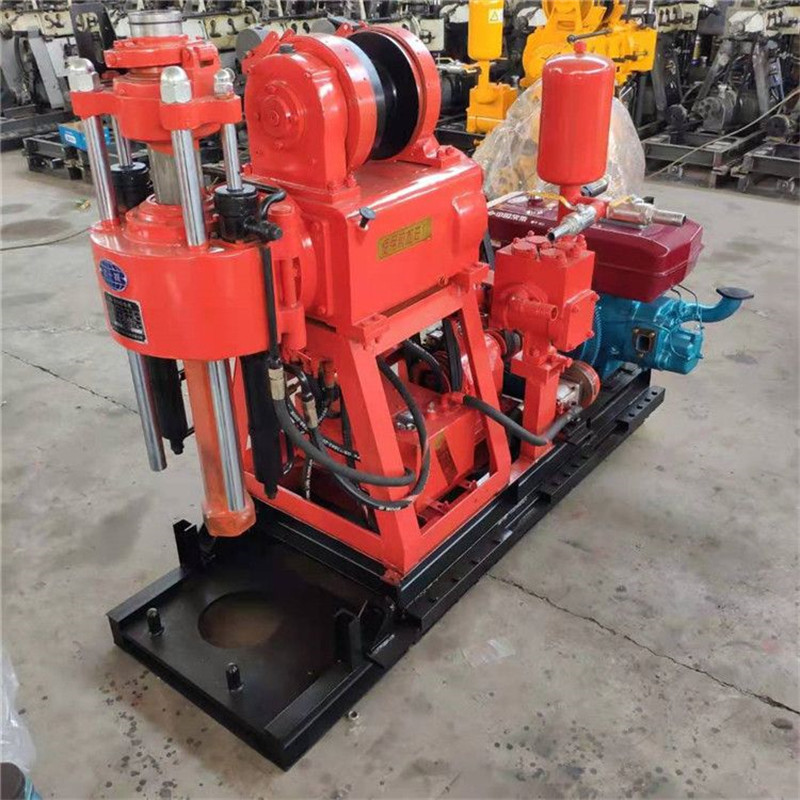

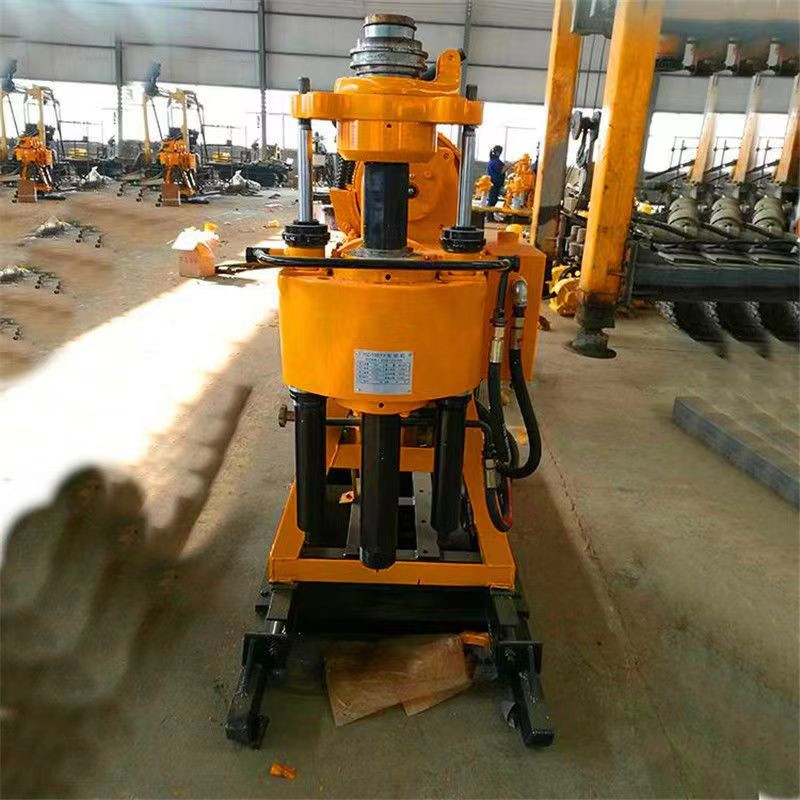

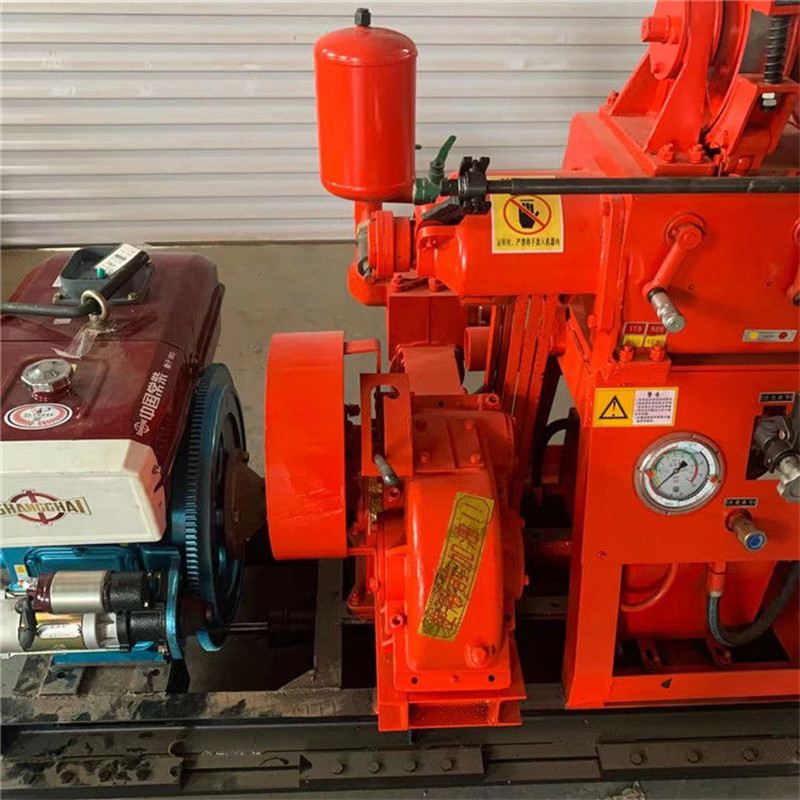

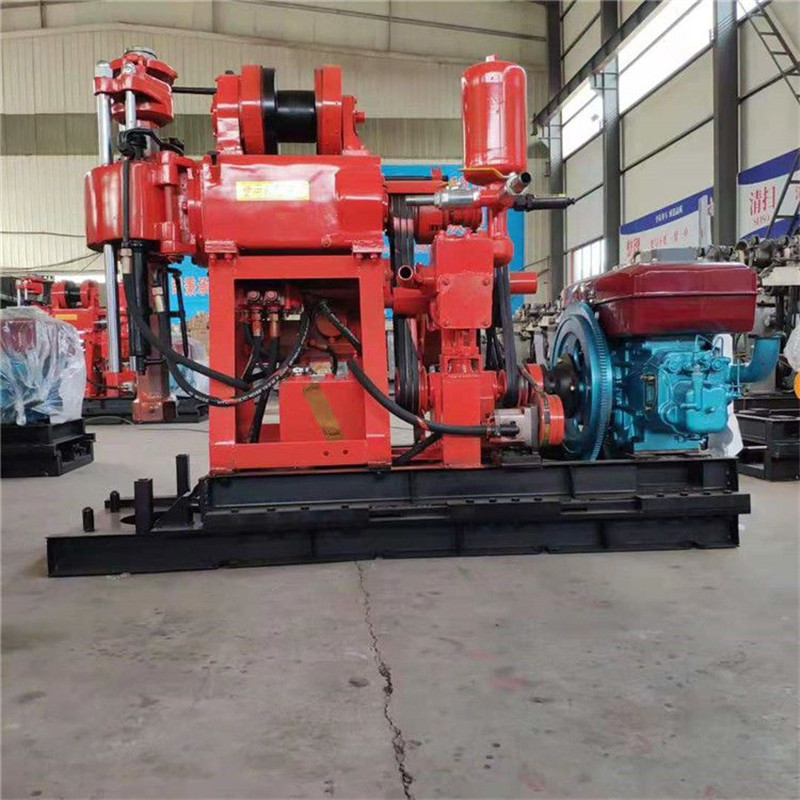

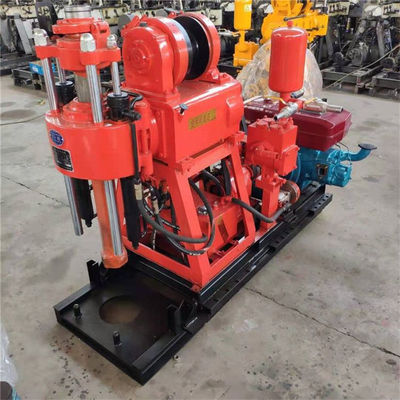

Tower Crawler Drilling Rig for 200 Meter Drilling in Hydraulic Engineering Construction Site Survey, With Strong Bearing Capacity
Geological drilling rig, core drilling rig, survey drilling rig, mining drilling rig, water well drilling rig, engineering drilling rig
Product Application:
It is widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Product Features:
1. Good stability and high reliability.
2. Multilevel positive and reverse rotate speed.
3. The complete hydraulic chuck and vertical spindle, hydraulic chuck on top and manual chuck at the bottom
4. Steel Skid mounted with Hydraulic retraction system
5. Convenient to transport with the small volume and light weight.
6. Perfect frame's rigidity, low center of gravity and good stability.
Parameters of XY-200 hydraulic core drilling rig
| Model |
XY-200 |
| Maximum opening diameter |
400mm |
| Maximum borehole depth |
200m |
| Diameter of the end hole |
75mm |
| Borehole dip angle |
90-75° |
| Machine overall size |
2.75*0.95*1.60m |
| Drill pipe diameter |
50mm |
| Weight of drill rig diameter of drill pipe (without power) |
760kg |
| Spindle |
| Shaft rotation speed |
71/142/310/20r/min |
| Vertical axis stroke |
450mm |
| Windlass |
| Maximum lifting weight of single rope |
2008kb |
| Drum lifting speed |
17/35/75/160 rm/s |
| Wire rope diameter: |
13mm |
| Wire rope capacity |
35mm |
| Width of sluice |
70mm |
| Mud pump |
| Type: horizontal single cylinder double action |
flow:180L/min |
| Maximum pressure |
1.5mpa |
| Working pressure |
0.7mpa |
| Inlet size |
50mm |
| Outlet pipe diameter |
45mm |
| Power |
| Diesel oil |
22hp |
| Rated speed |
2200r/min |
| Electric machinery |
15kw |
| Rated speed |
1460r/min |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
