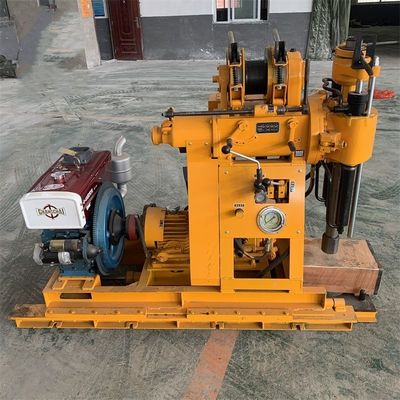

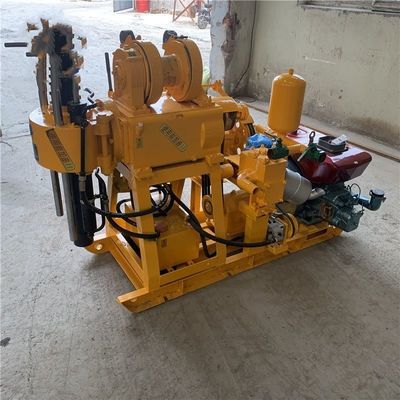

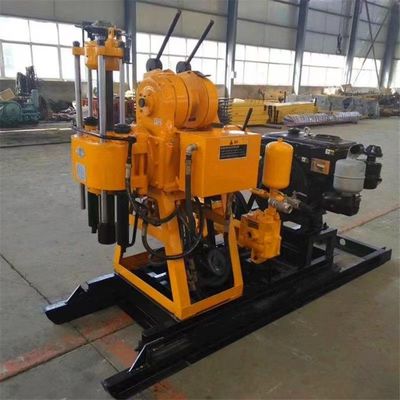

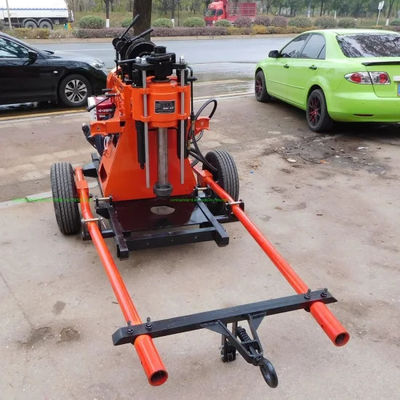

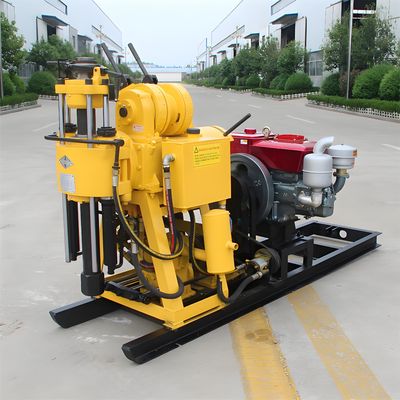

Name: Multi Functional Geological Core Drilling Equipment For Various Engineering Projects
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: XY-4
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO: XY-4

Motor: Diesel Engine

Drill Hole Diameter: 76-300mm

Drill Hole Depth: 700-1000m

Bit Type: Diamond Bit

Drilling Way: Rotary

Power Type: Electric Motor / Diesel

Use: Coring Rig

Core Components: Pump, Bearing, Engine

Drill Rod Diameter: 42mm

Spindle Stroke: 600mm

Maximum Pull Force Of The Spindle: 80kN

Highlight:

Geological Core Drilling Equipment

Multi Functional Core Drilling Equipment

Engineering Core Drilling Equipment

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: XY-4

Payment & Shipping Terms

Packaging Details: in New Strong Plywood Case

Supply Ability: 30 Sets/Month

Gallery

Multi Functional Geological Core Drilling Equipment For Various Engineering Projects

Product Description

Multi Functional Geological Core Drilling Rig, Suitable for Various Engineering Projects

Exploration drilling rig, geological drilling rig, deep hole drilling rig

1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.

Tech paraneter	Model	XYD-130	XYD-180	XYD-200
	Drilling depth(m)	130	180	65
	Open hole dia (mm)	220	220	325
	End hole dia(mm)	75	75	75
	Drill rod dia(mm)	42-60	42-60	42-60
	Drill angle(°)	90-75	90-75	90-75
	Matching power(kw)	13.2	13.2	15
	Weight without power(kg)	3350	3400	3600
	Dimension(m)	3.81.952.7	3.81.952.7	3.81.952.7
Spindle	Speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Spindle	Stroke(mm)	450	450	450
Crawler chassis	Crawler size(m)	3509048	3509048	3509048
	Clinbing angle(°)	20°	20°	20°
	Walking speed(kn/h)	10km/h	10km/h	10km/h
	hydraulic landing leg valid height(mm)	1300	1300	1300
Drill mast	Rated load(ton)	18	18	18
Drill mast	Height(m)	6.5	6.5	6.5
Winch	Dispalcement(L/min)	160	160	160
	Max. pressure(MPa)	1.3	1.3	1.3
	Times/min	165	165	165
	Inlet hose dia(mm)	51	51	51
	0ut let hose dia(mm)	32	32	32

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
