4-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig

1 Set
MOQ
4-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO: XY-1A
Condition: New
Motor: Diesel Engine
Drill Hole Diameter: 100-150mm
Drill Hole Depth: 150-200m
Drill Rod Diameter: 42mm
Drill Hole Inclination: 90° -75°
After-Sales Service Provided: Video Technical Support
Machine Type: Geological Survey Coring Equipment
Highlight:

tower core drilling rig

,

tower crawler drilling rig

,

geological core drilling rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

4-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig



1. Used for house foundation survey, mineral survey, reservoir management and other projects.
2. The speed can be adjusted in a wide range and the torque at low speed is large.
3. The operating handles are centralized and the layout is reasonable.
4. Compact structure, small size and easy to move.





Model XY-1A-4 Drilling Rig
Drilling rig
Drill depth(m) 180
Initial hole diameter(mm) 150
Final hole diameter(mm) 75, 46
Drill rod diameter(mm) 42
Drill hole inclination 90° -75°
Dimensions(L*W*H) (mm) 1700X 780X 1274
Weight(Excluding engie)(kg) 620
Stroke(mm) 350
Rotary table
Rotate speed(five speed)(r/min) 1010, 790, 470, 295, 140
Stroke (mm) 450
Max. upward movement speed (m/s) 0.05
Max. downward movement speed (m/s) 0.067
Max. feed pressure(KN) 15
Max. lifting force(KN) 25
Diesel engine
Model ZS1105
Power(Kw) 13.2
Rated speed(r/min) 2200
Motor type Y160M-4
Power(KW) 11
Rated speed(r/ min) 1460

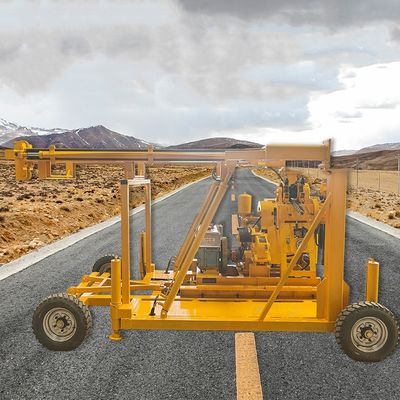

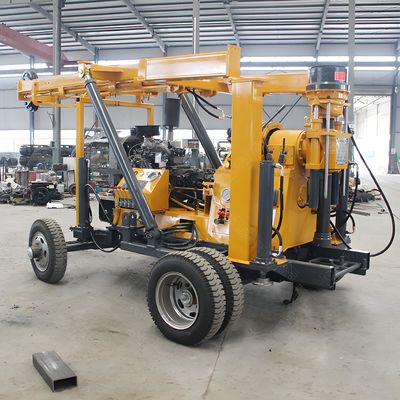

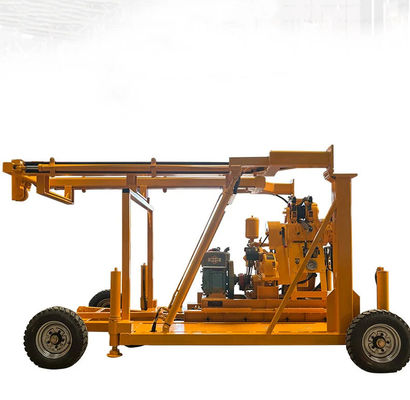

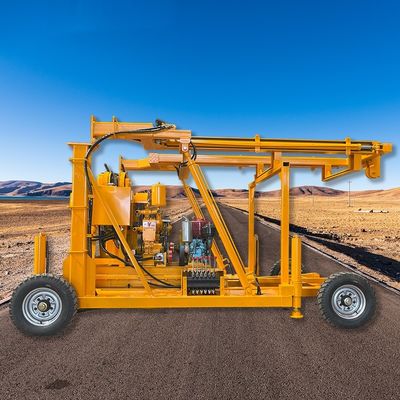

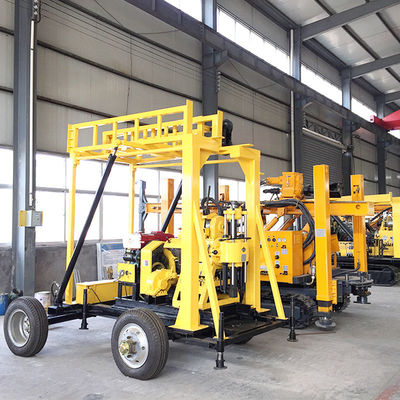

4-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 04-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 14-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 24-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 3

4-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 44-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 54-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 64-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 74-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 84-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 94-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 104-Wheel Hydraulic Tower Core Drilling Rig/Hydraulic Geotechnical Sample Investigation Core Drilling Rig 11
