Features

Specifications

Model NO.: HW916

Motor: DC Motor

Drill Hole Diameter: 100-150mm

Drill Hole Depth: <100m

Bit Type: Diamond Bit

Drilling Way: Rotary

Rotary: 176 Kw

Max Drill Deep: 30m

Engine Brand: Yuchai

DTH Hammer: 4inch

Working Pressure: 17bar

F.a.D: 16 M3/Min

Transportation Dimensions: 7,550X2,500X3,060 Mm

Rotation Speed: 0-100 Rpm

Weight: 9310kgs

Highlight:

Mining Blasting Drilling Machine

DTH Hammer Blasting Drilling Machine

Hydraulic Crawler Blasting Drilling Machine

Basic Infomation

Place of Origin: China

Brand Name: Aoxing

Certification: ISO9001

Model Number: 916

Payment & Shipping Terms

Supply Ability: 50 Sets/Month

Gallery

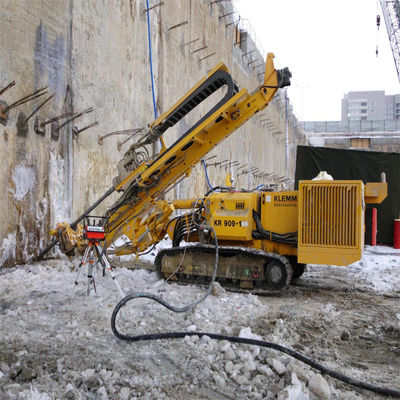

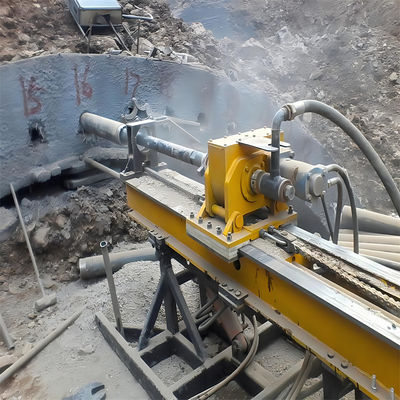

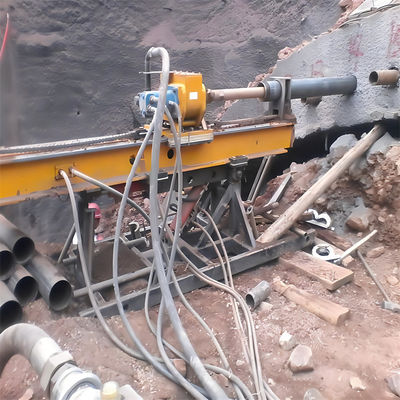

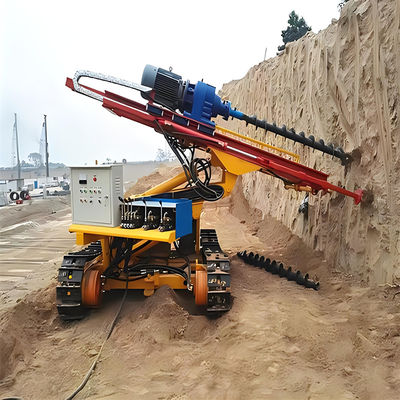

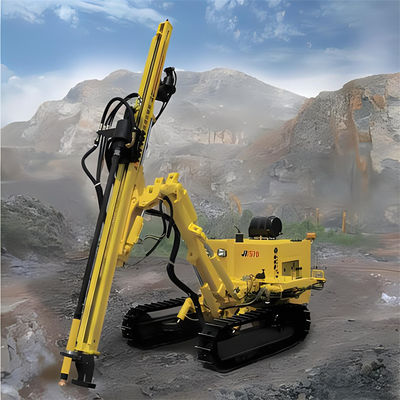

DTH Hammer Rotary Mining Blasting Drilling Machine Hydraulic Crawler Type

Product Description

Hydraulic Crawler Type DTH Hammer Rotary Mining Blasting Drilling Machine

Powerful Yuchai Engine
Both models are powered by the Yuchai YCD4T22T-105A engine, delivering a substantial 78 kW, ensuring consistent and reliable power for demanding drilling operations.

- Versatile Drill Pipe
Equipped with φ60*3000 mm drill pipes, capable of handling drilling diameters ranging from φ90 to φ100 mm, offering flexibility for various drilling requirements.

- High Working Torque
The machines boast a maximum working torque of 2400 N.m, providing the strength needed to tackle tough materials with ease.

- Adjustable Swing Speed
With a swing speed range of 0-150 rpm, operators can adjust the speed to match the drilling conditions, optimizing efficiency and performance.

Model	HW916	HW916-1
engine	Yuchai YCD4T22T-105A	Yuchai YCD4T22T-105A
power(KW)	78	78
Drill pipe type(mm)	φ60*3000	φ60*3000
Drilling diameter(mm)	φ90-100	φ90-100
Maximum working torque(N.m)	2400	2400
Swing speed(rpm)	0-150	0-150
Propulsion(kN)	15	15
Lifting power(kN)	25	25
Propulsion method	oil cylinder chain	oil cylinder chain
Leveling angle
Walking speed(km/h)	2	3
Gradeability	30°	30°
gross weight(kg)	4800	4800
Shipping dimensions(mm)	570021002600	570021002600
Dust collection method	detachable	Dry dust collection

DTH Hammer Rotary Mining Blasting Drilling Machine Hydraulic Crawler Type 0
