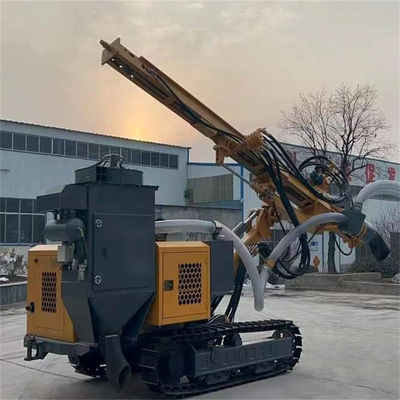

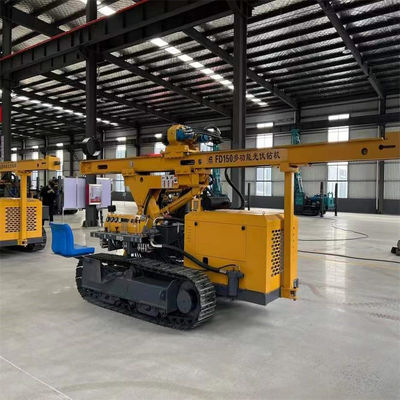

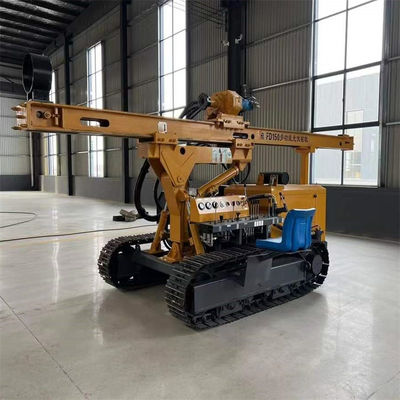

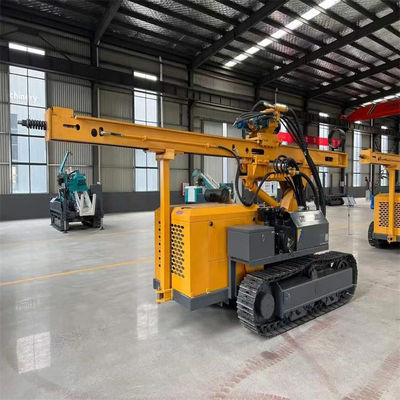

Rock Drilling Pneumatic DTH Drilling Rig Dia 100-150mm Drill Hole with AC Motor

1 Set
MOQ
Rock Drilling Pneumatic DTH Drilling Rig Dia 100-150mm Drill Hole with AC Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: HW930
Condition: New
Motor: AC Motor
Drill Hole Diameter: 100-150mm
Drill Hole Depth: <100m
Bit Type: Hammer Bit
Drilling Way: Impactor
Model: Hw930
Power (Kw): 598
Drilling Diameter (mm): 110-165
Maximum Torque (Nm: 3500
Propulsion (Kn): 20
Lifting Force (Kn): 45
Shipping Dimensions (mm): 7370*2360*2560
Origin: China
Highlight:

Pneumatic DTH Drilling Rig

,

DTH Rock Drilling Rig

,

Dia 100mm DTH Drilling Rig
Basic Infomation
Place of Origin: China
Brand Name: Aoxing
Certification: ISO9001
Model Number: HW930
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Product Description

Rock Drilling Pneumatic DTH Drilling Rig



Configurations:



  • 1. HW412A/HW412A-1 drill equipped with double cycloidal hydraulic motor driven rotary head, largetorque, fast rotation speed which can meet the requirements of drilling hole diameter ofφ110 mm withφ90mm drill pipe.

  • 2. Piston tramming motor, special processed casted track shoe for stronger tramming traction force& longer service life, lowering machine maintenance cost.

  • 3. All controls integrated on the control panel for convenient operation by single operator, higher work efficiency& lower drilling cost, safer and more comfortable operation.

  • 4. Optional own developed dust collection system with high efficiency & eco-friendly.

Technical Parameter

Diesel Engine Specifications
Rig Model Power Rated Power
HW412A Xichai
4DW91-50GBG3U



36.8kW
HW412A-1



YC4DK80



58kW Dust collection system as standard equipment
General Specifications
Drill Pipe Sizes 60*2000 mm
Hole range 90-110 mm
Rotation torque (Max.) 1,650 N.m
Rotation Speed 70-150 rpm
Feed Force 15 kN
Pull Up Force 25 kN
Feed Type Chain / cylinder
Tramming Speed (Max.) 2.5 km/h
Gradient 25°
Total Weight 3,350Kg/ 3,760 kg
Transportation Dimensions 4900X2000X2200 mm



Rock Drilling Pneumatic DTH Drilling Rig Dia 100-150mm Drill Hole with AC Motor 0Rock Drilling Pneumatic DTH Drilling Rig Dia 100-150mm Drill Hole with AC Motor 1
