Home /Products/PDC Drill Bit/Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling

Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling

1 Piece
MOQ
Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO: 113
Standard: AISI
Surface Treatment: Polishing
Manufacturing Process: Forging
Material: Carbon Steel
Machine Type: Drilling Tool
Use: Well Drilling
Highlight:

pdc drag drill bit

,

well pdc drill bit

,

well drag drill bit
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: 55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 500 Piece/Month
Product Description

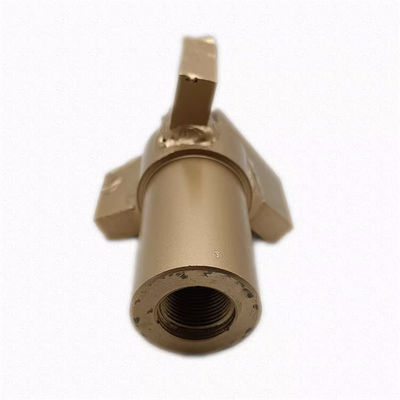

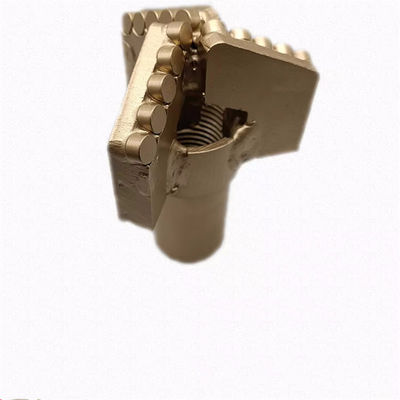

3 wings alloy scraper bits are one piece construction of alloy steel cast with tungsten carbide cutting tips and gauge sides to ensure longer life. It has 3 wings and 3 flushing holes. Compared with 4 wings, 3 wings step drag bits tend to drill faster and aggressive, whereas, are shorter lasting and less durable.3 wings alloy scraper bits will produce larger cuttings force than chevron style drag bit. Rotary table speed of step drag bits should be between 60 and 80 rpm with light weight on bit .
3 wings step drag bits are economical tools when drilling softer geological formations and shallower depths, they are primarily designed for soft tomedium formations, such as Clay, Loam, Silt ,Most soft-to-medium soils that have some moisture, etc.



Name
Three wing alloy scraper bit
Use
Water well,foundation pit
Application
Soft foundation stratum, soil layer, sediment, backfilling
Size
110mm 130mm 150mm Various models can be custom
Warranty 1 year
Applicable Industries Construction works , Energy & Mining, Other
Video outgoing-inspection Provided
Brand Name Flashdrill
Type drill bit
blades 3
Machine Type drilling tool
Material Carbide
Product Name Pdc drill bit



Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 0Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 1Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 2Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 3Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 4Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 5Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 6Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 7Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 8Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 9Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 10Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 11Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 12Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 13Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 14Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 15Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 16Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 17Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 18Diamond 3-Wing Scraper PDC Drag Drill Bit for Water Well Mining Drilling 19

Tag:

PDC Drilling Bit

Diamond Drill Bits

Diamond PDC Bit
