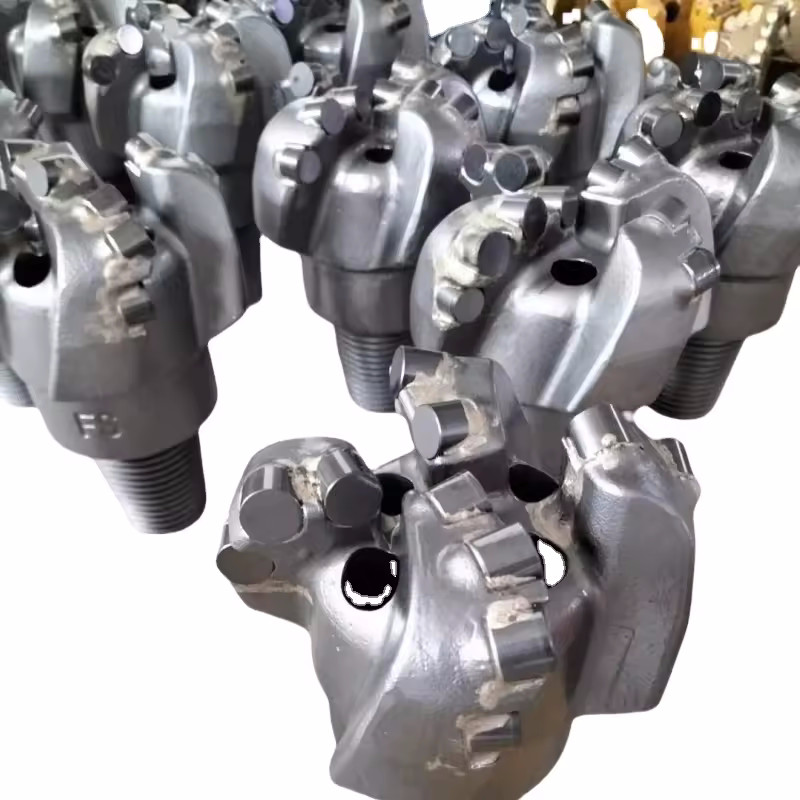

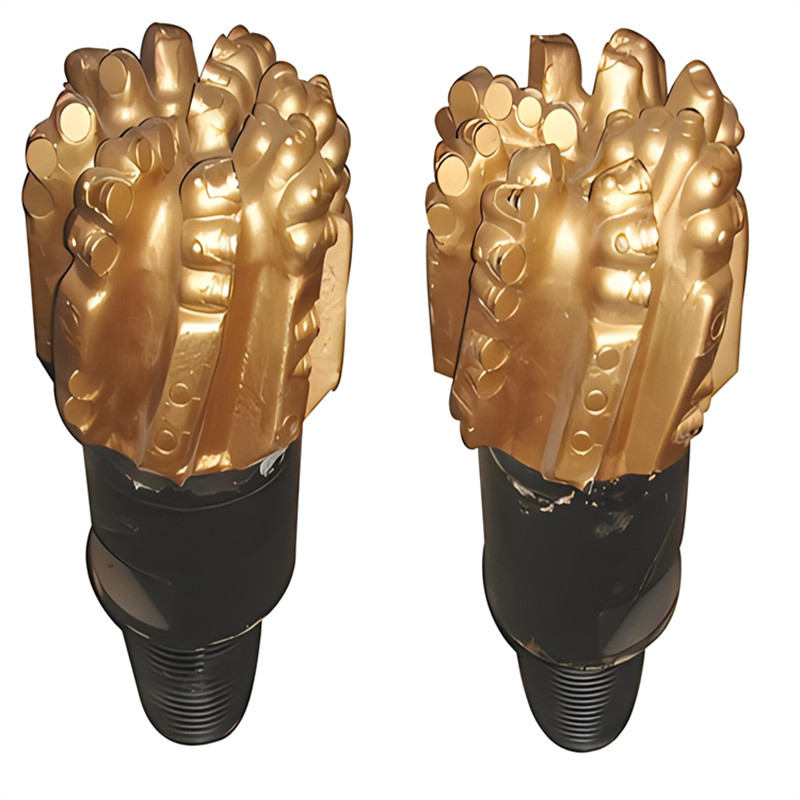

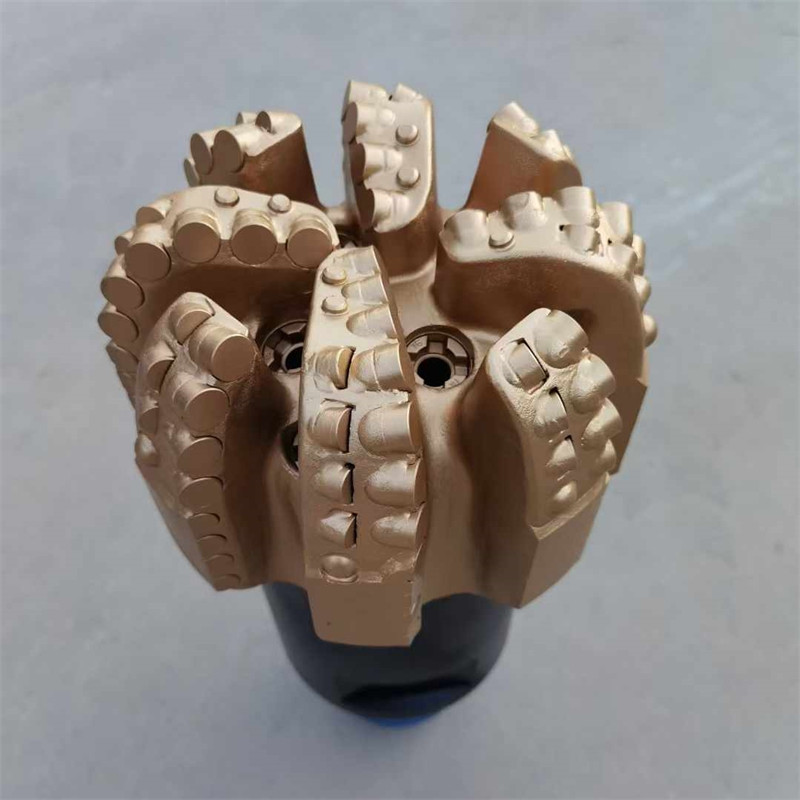

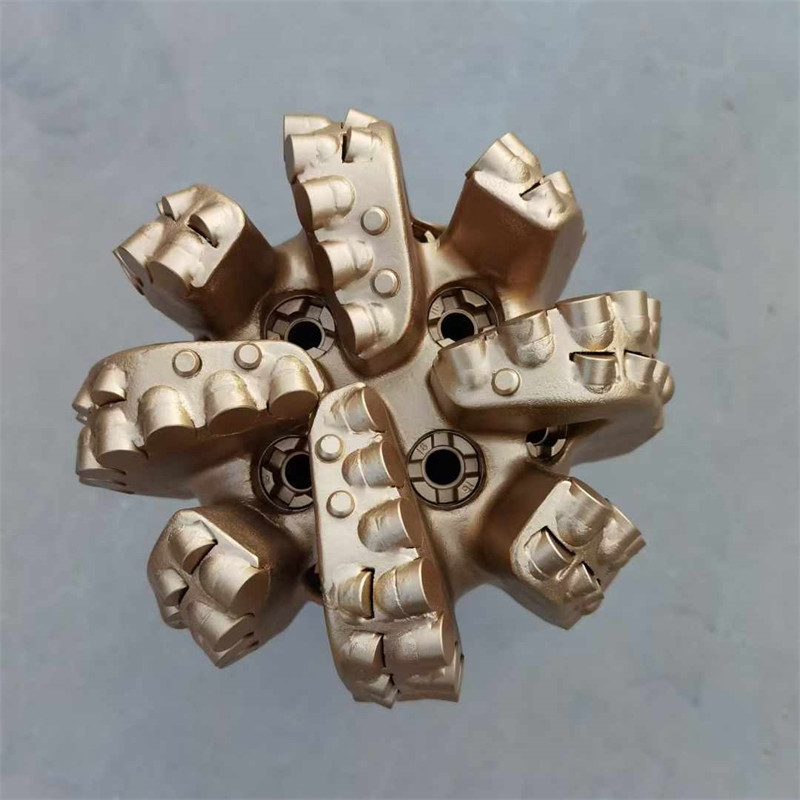

Rock Tungsten Carbide Drilling Bits Water Well Diamond PDC Oil Drill Bit

Rock Tungsten Carbide Drilling Bits Water Well Diamond PDC Oil Drill Bit
Features Gallery Product Description Request A Quote
Features
Specifications
Manufacturing Process: Forging
Surface Treatment: Polishing
Material: Carbon Steel
Processing Type: Forging
Size: 3 7/8~13 5/8 Inch
Usage: Well Drilling
Highlight:

Rock Tungsten Carbide Drilling Bits

,

Diamond PDC Oil Drill Bit

,

Water Well Diamond PDC Bit
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: 3 7/8~13 5/8
Payment & Shipping Terms
Packaging Details: in Plywood Case
Product Description

Pearldrill Rock Bits Tungsten Carbide Bits Water Well Diamond Bits PDC Oil Drill Bit

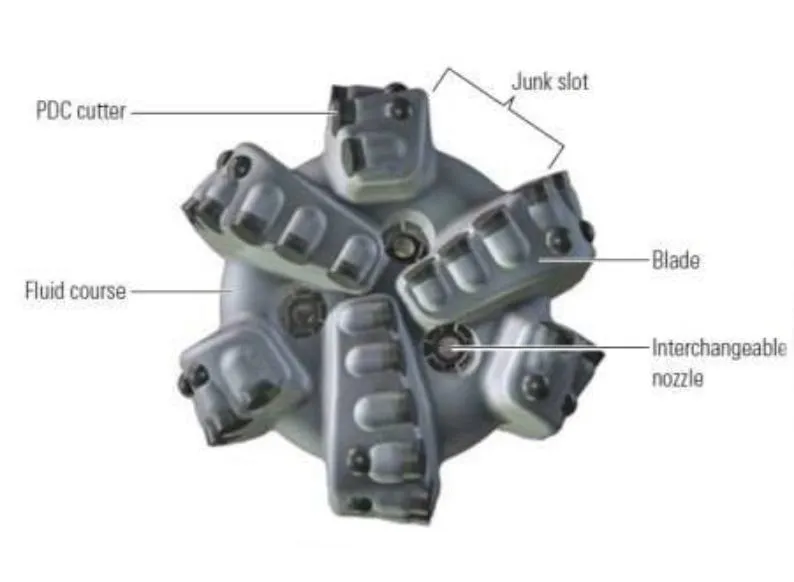

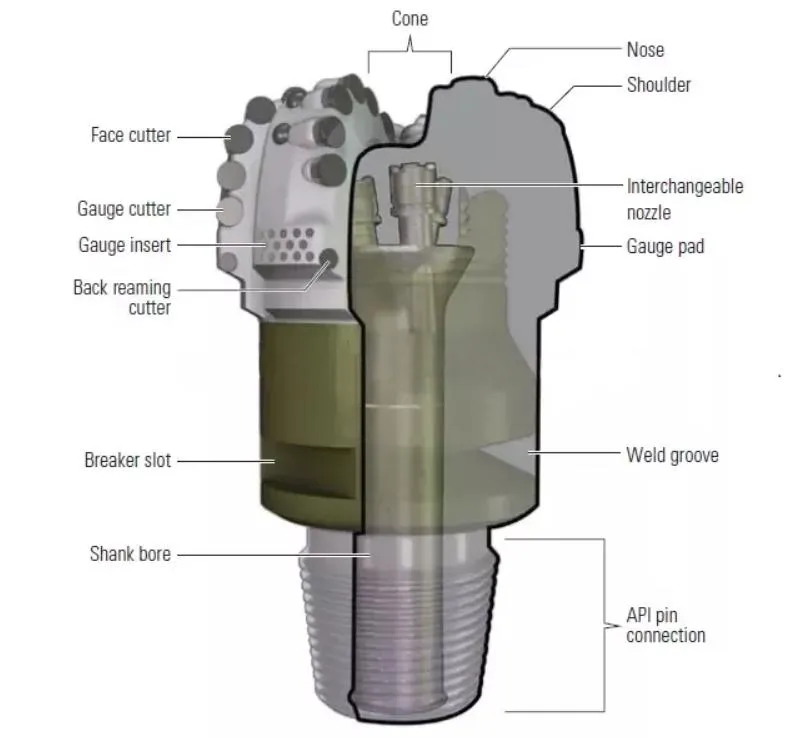

Oil PDC bits Structural drawings
Rock Bit Carbide Bit Water Well Bit Diamond Bit PDC Oil Bit Drill Bit Non-Core Bit Drilling BitRock Bit Carbide Bit Water Well Bit Diamond Bit PDC Oil Bit Drill Bit Non-Core Bit Drilling BitRock Bit Carbide Bit Water Well Bit Diamond Bit PDC Oil Bit Drill Bit Non-Core Bit Drilling Bit
Oil PDC bits technical Data
Regular Models of PDC Bits
Regular Sizes Regular IADC API Reg Pin Make-up Torque(N.m)
3 7/8"(98.4mm) 126/216/637 2 3/8 4100~4700
4 5/8"(117.4mm) 126/216/517/537/637 2 7/8 6100~7500
5 1/4"(133.3mm) 3 1/2 9500~12200
5 5/8"(142.8mm)
5 7/8"(149.2mm)
6"(152.4mm) 126/127/216/517/537/617/637
6 1/4"(158.7mm)
6 1/2"(165mm)
7 1/2"(190mm) 126/216/517/537 4 1/2 16300~21700
7 5/8"(193mm)
7 7/8"(200mm)
8 1/2"(215.9mm) 117/127/217/437/517/537/617/637
9 1/2"(241.3mm) 6 5/8 38000~43400
9 7/8"(250.8mm)
10 5/8(269.8mm)
11 5/8(295.3mm)
12 1/4"(311.1mm)
13 5/8"(346.0mm) 127/217/517/537/617/637
14 3/4"(374.6mm) 7 5/8 46100~54200
17 1/2"(444.5mm) 114/115/125/215/515/535/615/635
26"(660.4mm) 114/115/125/215/515/535/615


Product Features
1. Soft to medium-hard formation application
Medium Parabolic crown profile and heavy cutter density provide high ROP in medium to hard formations with
medium compressive strength and small abrasive layers.

2. Multi-function hydraulics
The deep blade design can get high ROP in medium to hard formations and can effectively cool the bit in hard
and abrasive formations

3. Longer Bit Life
High intensified gage design provides for long runs on steerable system through hard and abrasiive formations
as steering application.

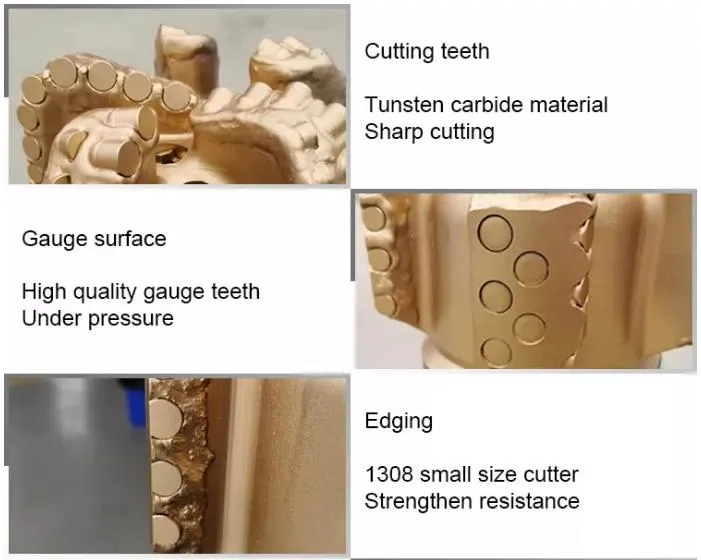

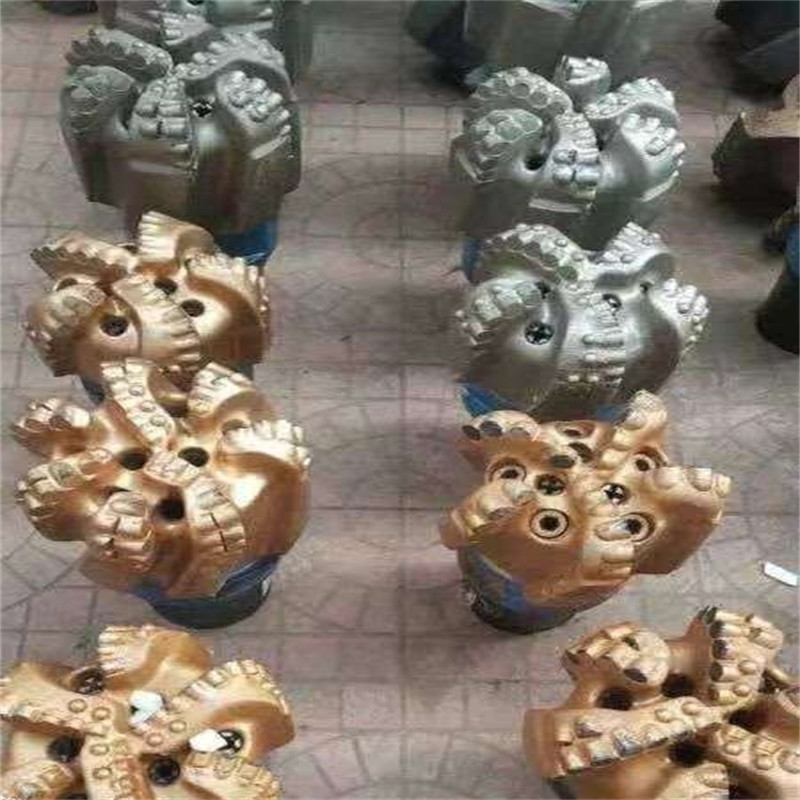

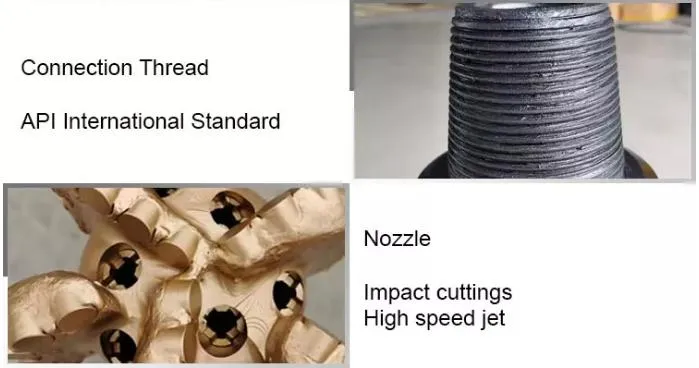

Detailes Show
Rock Bit Carbide Bit Water Well Bit Diamond Bit PDC Oil Bit Drill Bit Non-Core Bit Drilling BitRock Bit Carbide Bit Water Well Bit Diamond Bit PDC Oil Bit Drill Bit Non-Core Bit Drilling Bit



Rock Tungsten Carbide Drilling Bits Water Well Diamond PDC Oil Drill Bit 5Rock Tungsten Carbide Drilling Bits Water Well Diamond PDC Oil Drill Bit 6Rock Tungsten Carbide Drilling Bits Water Well Diamond PDC Oil Drill Bit 7Rock Tungsten Carbide Drilling Bits Water Well Diamond PDC Oil Drill Bit 8
