Petroleum PDC Drill Bit For Deep Water Wells And Geothermal

1 Piece
MOQ
Petroleum PDC Drill Bit For Deep Water Wells And Geothermal
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: 2 3/8"~7 5/8"
Standard: AISI
Manufacturing Process: Forging
Applicable Industries: Energy & Mining
Type: Deep Well Drill Bits
Origin: China
Highlight:

Petroleum PDC Drill Bit

,

Deep Water Wells PDC Bit

,

Geothermal PDC Drill Bit
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: 2 3/8"~7 5/8"
Payment & Shipping Terms
Packaging Details: in Plywood Case
Product Description

Petroleum PDC Bit for Deep Water Wells and Geothermal



Oil PDC bits Structural drawings
5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling
Oil PDC bits technical Data
Regular Models of PDC Bits
Regular Sizes Regular IADC API Reg Pin Make-up Torque(N.m)
3 7/8"(98.4mm) 126/216/637 2 3/8 4100~4700
4 5/8"(117.4mm) 126/216/517/537/637 2 7/8 6100~7500
5 1/4"(133.3mm) 3 1/2 9500~12200
5 5/8"(142.8mm)
5 7/8"(149.2mm)
6"(152.4mm) 126/127/216/517/537/617/637
6 1/4"(158.7mm)
6 1/2"(165mm)
7 1/2"(190mm) 126/216/517/537 4 1/2 16300~21700
7 5/8"(193mm)
7 7/8"(200mm)
8 1/2"(215.9mm) 117/127/217/437/517/537/617/637
9 1/2"(241.3mm) 6 5/8 38000~43400
9 7/8"(250.8mm)
10 5/8(269.8mm)
11 5/8(295.3mm)
12 1/4"(311.1mm)
13 5/8"(346.0mm) 127/217/517/537/617/637
14 3/4"(374.6mm) 7 5/8 46100~54200
17 1/2"(444.5mm) 114/115/125/215/515/535/615/635
26"(660.4mm) 114/115/125/215/515/535/615


Product Features
1. Soft to medium-hard formation application
Medium Parabolic crown profile and heavy cutter density provide high ROP in medium to hard formations with
medium compressive strength and small abrasive layers.

2. Multi-function hydraulics
The deep blade design can get high ROP in medium to hard formations and can effectively cool the bit in hard
and abrasive formations

3. Longer Bit Life
High intensified gage design provides for long runs on steerable system through hard and abrasiive formations
as steering application.


Detailes Show

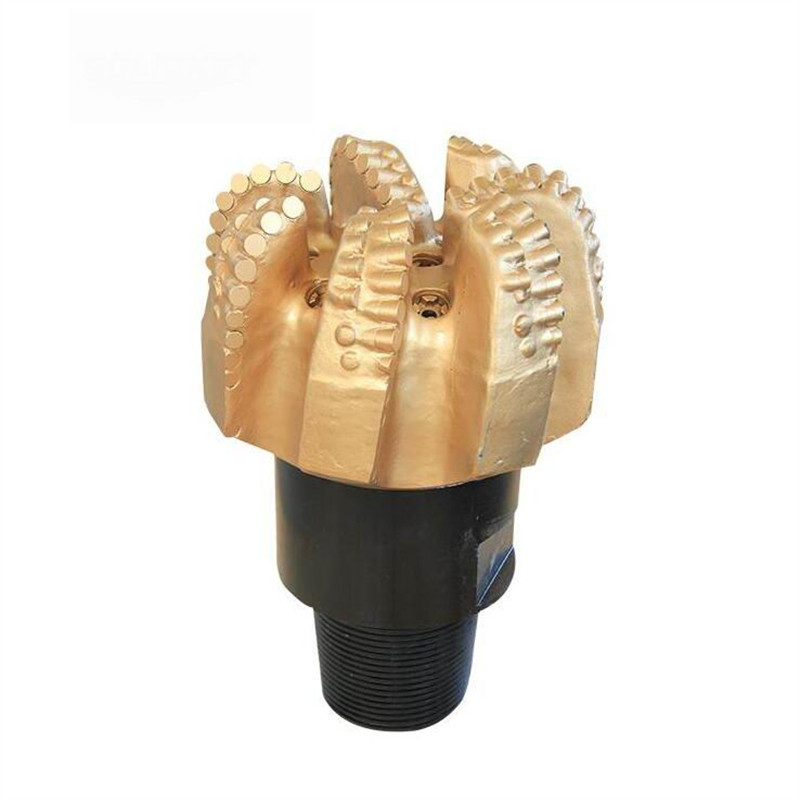

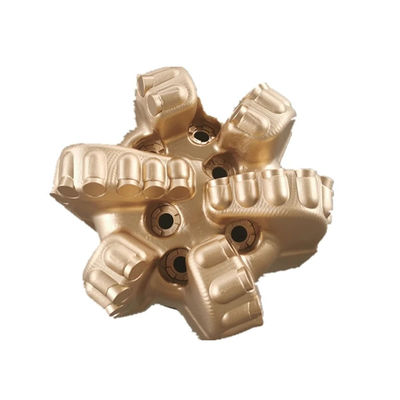

5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling

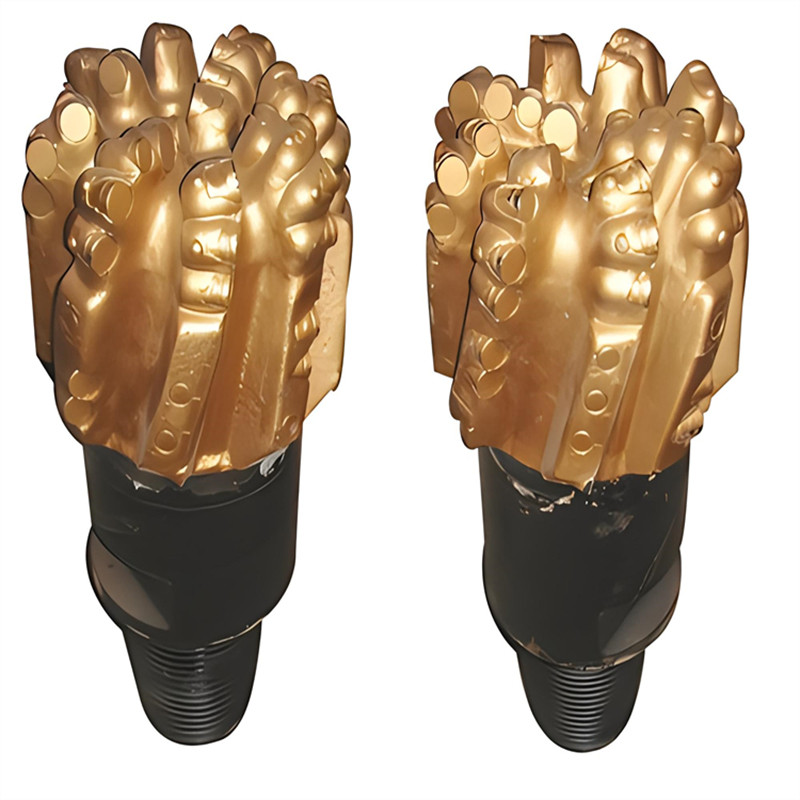

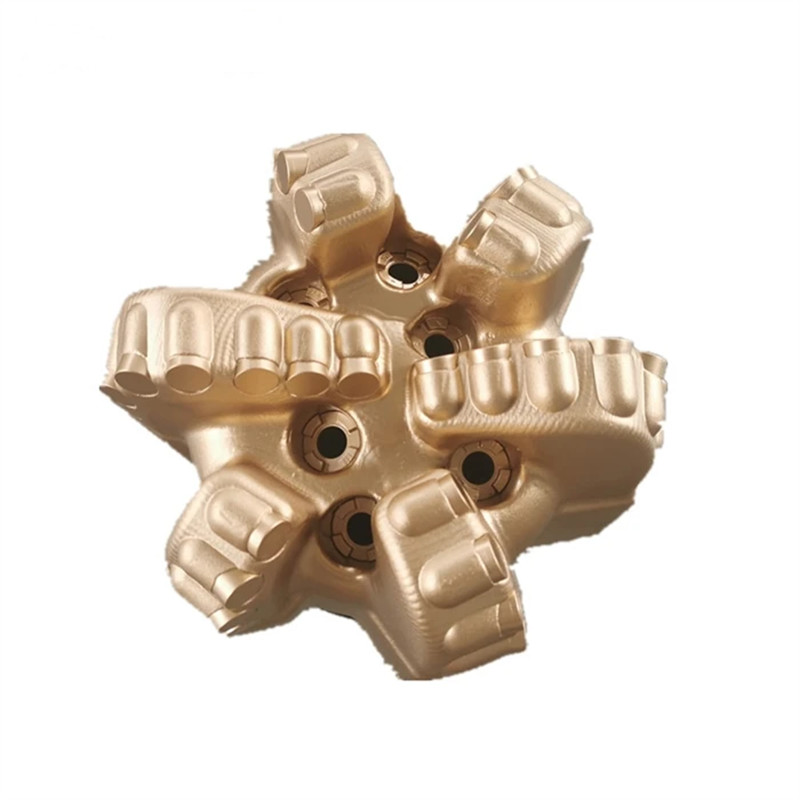

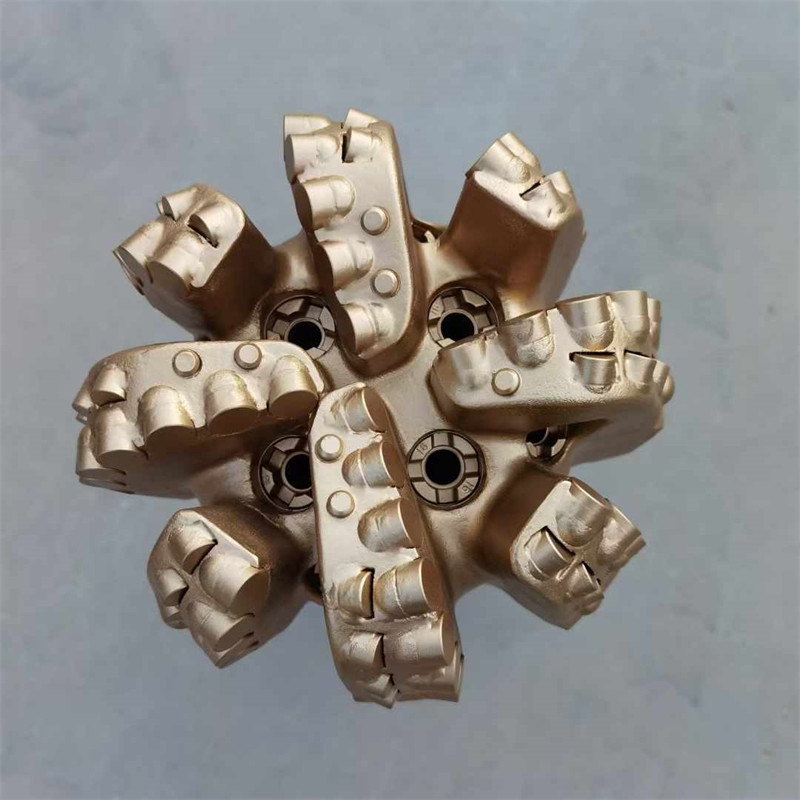

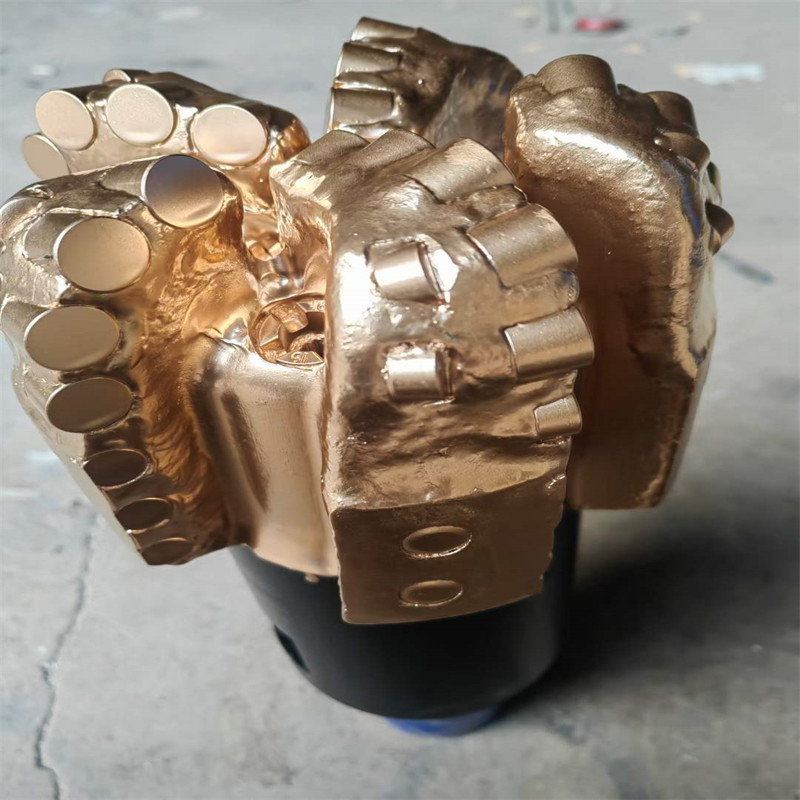

Petroleum PDC Drill Bit For Deep Water Wells And Geothermal 3Petroleum PDC Drill Bit For Deep Water Wells And Geothermal 4Petroleum PDC Drill Bit For Deep Water Wells And Geothermal 5Petroleum PDC Drill Bit For Deep Water Wells And Geothermal 6
