Name: 75mm Supply of 3-Wing Internally Concave PDC Drill Bit, Drill Bit for Water Well Drilling
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: 55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: 55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm

Length: 250mm

Type: PDC Drill Bit

Material: PDC Cutter+Steel Body

Usage: Well Drilling, Geological Exploration

Application: Coal Mining, Quarry Drilling, DTH Drilling

Diameter: 2"~26"

Origin: China

Highlight:

concave pdc drill bit

concave pdc oil drill bit

well pdc drill bit

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: 55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 500 Piece/Month

Gallery

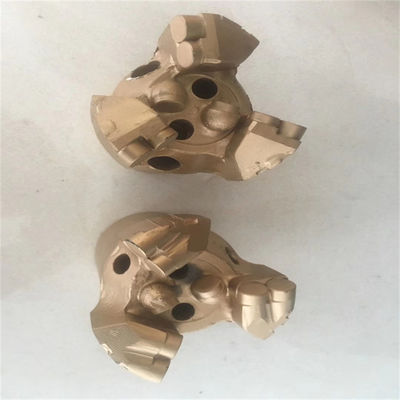

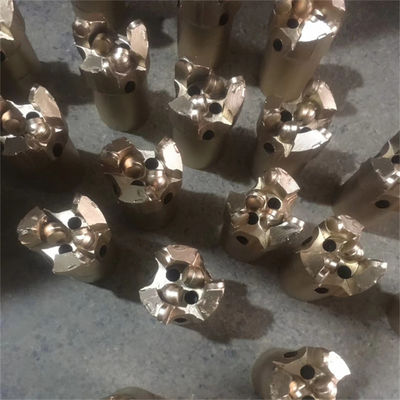

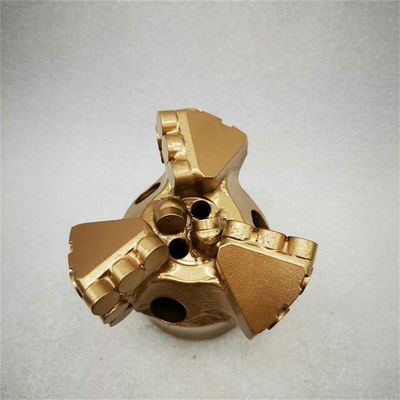

75mm Supply of 3-Wing Internally Concave PDC Drill Bit, Drill Bit for Water Well Drilling

Product Description

75mm Supply of 3-Wing Internally Concave PDC Drill Bit, Drill Bit for Water Well Drilling

Pdc Drill Bit Feature:

1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.PDC cutter can improve the life and shield the risk of complex formation drill not passed.
4.Drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth

Features of diamond concave no core drill bits:
1. Big hole design, chip space is big, high drilling efficiency in soft rock.
2. Cutting free surface, sharp blade, with self-sharpening feature, high drilling efficiency.
3. High resistance to wear.
4. According to stratum characteristics, selecting different drilling and surface structure, bit strong adaptability.
5. High effective utilization rate of drilling time and auxiliary time is short, effectively reduce the labor intensity of workers and good comprehensive benefits.

Details of Drag Bit

Size	55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm
Bit Type	pillar type,concave,three wings,four wings,five wings,six wings
PDC Cutter Size	1303,1308,1304,1603
Body Materials	steel,tungsten carbide matrix
Suitable Rock	mud stone,limestone,shale,sandstone,granite

Specifications:

Specification diameter(mm)	Size		Cutting Wings		Water Hole		Threading
Specification diameter(mm)	Dia(mm)	Height(mm)	Pillar Quantity	Blade Quantity	Quantity	Quantity	Threading
56	56	115	2	3	4	6--8	Square Taper Lock
60	60	115	2	3	4	6--8
65	65	115	2	3	4--5	6--8
75	75	125	2	3--4	4--6	6--10
78	78	128	2	3--4	4--6	6--10
85	85	128	2	3--4	4--6	8--12
94	94	128	2	3--4	4--8	8--12
113	113	135	3	3--4	6--8	8--12
133	133	135	3	3--4	6--8	8--12

75mm Supply of 3-Wing Internally Concave PDC Drill Bit, Drill Bit for Water Well Drilling 0

75mm Supply of 3-Wing Internally Concave PDC Drill Bit, Drill Bit for Water Well Drilling 4
