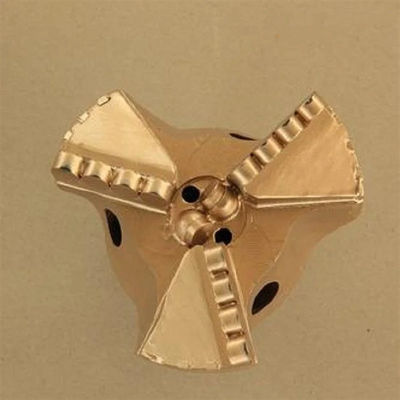

Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits

1 Piece
MOQ
Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: 55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm
Length: 250mm
Type: PDC Drill Bit
Material: PDC Cutter+Steel Body
Usage: Well Drilling, Geological Exploration
Application: Coal Mining, Quarry Drilling, DTH Drilling
Diameter: 2"~26"
Origin: China
Highlight:

pdc drag bit concave

,

mining pdc drag bit

,

mining pdc drill bit
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: 55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 500 Piece/Month
Product Description

Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits





Pdc Drill Bit Feature:

1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.PDC cutter can improve the life and shield the risk of complex formation drill not passed.
4.Drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth

Details of Drag Bit

Size

55mm,65mm,75mm,94mm,108mm,113mm,133mm,

145mm,153mm,175mm,185mm,193mm
Bit Type pillar type,concave,three wings,four wings,five wings,six wings
PDC Cutter Size 1303,1308,1304,1603
Body Materials steel,tungsten carbide matrix
Suitable Rock mud stone,limestone,shale,sandstone,granite

Parameter

Drilling Diameter Blade Count Cutter Size Nozzle Number Bit Slot Pin Size
5 5/8'' 3 1308 3 2.7''*1.5'' 2 7/8''
5 5/8'' 5 1308 5 2.7''*1.5'' 2 7/8''
6'' 4 1308 4 4''*1.5'' 3 1/2''
6'' 5 1308 5 4''*1.5'' 3 1/2''
8 1/2'' 4 1308 4 5''*2'' 4 1/ 2''
8 1/2'' 5 1308 5 5''*2'' 4 1/2''
8 1/2'' 6 1308 6 5''*2'' 4 1/2''
9 1/2'' 5 1308 5 5''*2'' 4 1/2''
9 1/2'' 6 1308 6 5''*2'' 4 1/2''
12 1/4'' 5 1308 5 6''*2'' 6 5/8''

Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 0Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 0Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 2Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 3

Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 4Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 5Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 6Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 7Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 8Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 9Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 10Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 11Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 12Mining Drill Bit Water Well Drilling Non Core PDC Drag Bit Concave Drill Bits 13
