Name: Diamond Bit Core Drill Equipment For Road And Building Exploration Engineering
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: XY-150 type
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: XY100/XY150/XY180/XY200

Condition: New

Drill Hole Diameter: 76-220mm

Drill Hole Depth: 100-300M

Bit Type: Diamond Bit

Drilling Way: Rotary

Drilling Rig Base: Sliding Skid Base/Crawler Chassis/Wheels

Application: Core Sampling/Spt/Engineering Drilling

After-sales Service: Provide Train Video Or Remote

Warranty: Main Parts Within Six Months

Highlight:

Diamond Bit Core Drill Equipment

Road Core Drill Equipment

Building Core Drill Equipment

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: XY-150 type

Payment & Shipping Terms

Packaging Details: in New Strong Plywood Case

Supply Ability: 50 Sets/Month

Gallery

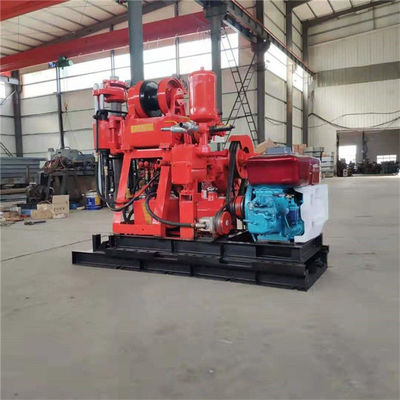

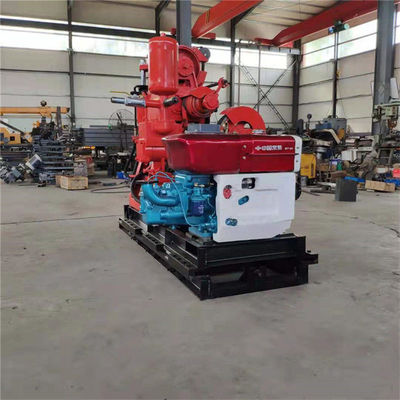

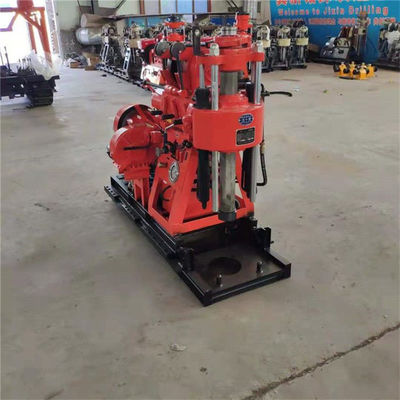

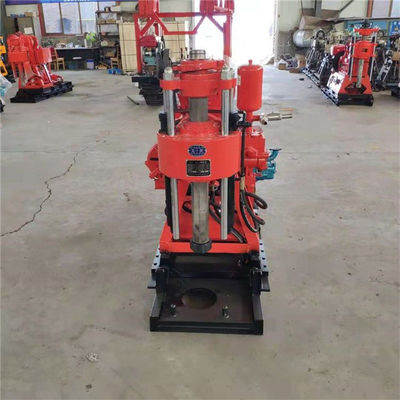

Diamond Bit Core Drill Equipment For Road And Building Exploration Engineering

Product Description

Drilling Machine, Drilling Equipment for Road and Building Exploration Engineering, Core Drilling Rig

XY Series are spindle core geotechnical and geophysical drilling rigs most perfectly suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, they are mainly used for:

Soil sampling with auger drilling.
Anchor drilling
Micro piling.
Geothermal drilling.
Core drilling with conventional coring tools.
Water well drilling by carbide and rotary drilling.

Specification

Model (YY series products)	XY-130Y/130YY	XY-18OY/18OYY	XY-200Y/200YY
Depth (m)	130	180	200
Opening diameter. (mm)	220	220	325
Endend hole dia. (mm)	75	75	75
Rod dia (mm)	42-60	42-60	42-60
Drilling angle (°)	90-75	90-75	90-75
Traction power (kw)	13.2	13.2	15
Weight without power distribution (kg)	560	610	1150
Unqualified (mm)	2.40.71.4	2.40.61.4	2.70.91.6
Speed (r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Memory lesson (mm)	450	450	450
Maximum tension (kg)	1600	2000	2400
Speed of each unit (m/min)	0.41-1.64	0.35-2.23	0.12-0.95
The diameter of the wire rope is Rope dia. (mm)	φ9.3	φ9.3	φ12.5
Capacity (m)	27	35	35
Fixed load (tons)	2	2	5
Are you free on Wednesday afternoon?	6	6	6
Size specification (L/min)	95	95	145
Maximum pressure.Pressure (Mpa)	1.2	1.2	2
Time (yuan/min)	93	93	93
Water spray hose dia. (mm)	51	51	51
Pumping hose dia. (mm)	32	32	32

Diamond Bit Core Drill Equipment For Road And Building Exploration Engineering 0
