Hydraulic Core Drilling Rig for Geological Exploration of Highways and Railways
Specification:
XY Series are spindle core geotechnical and geophysical drilling rigs most perfectly suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, they are mainly used for:
- Soil sampling with auger drilling.
- Anchor drilling
- Micro piling.
- Geothermal drilling.
- Core drilling with conventional coring tools.
- Water well drilling by carbide and rotary drilling.

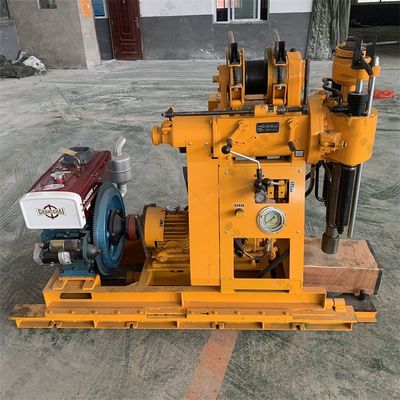

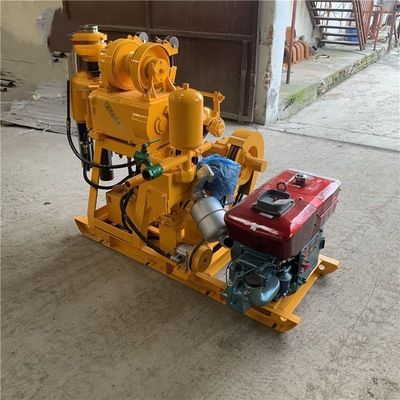

Specifications of XY-100 hydralic core drilling rig
| Model |
XY-100 |
| Drilling depth |
110 |
| Maximum open hole caliber |
220mm |
| End hole caliber |
75mm |
| Drill rod caliber |
50mm /42mm |
| Drilling angle |
90 |
| Drilling rig weight (exclude diesel engine) |
610kg |
| Unity machine dimensions |
2.1*0.9*1.3m |
| Spindle |
| Spindle speed |
130/300/480/730/830/1045 r/min |
| Spindle stroke |
450mm |
| Hoist |
| Max. lifting capacity with single rope |
1600kg |
| Lifting speed with single rope |
1.06/0.67/0.32 m/s |
| Wire rope caliber |
13mm |
| Wire rope cubic measure |
35mm |
| Hug floodgate caliber |
254mm |
| Hug floodgate belt width |
50mm |
| Distance between drill and hole |
230mm |
| Mud pump |
| Type |
Horizontal single-urn twin-action |
| Displacement (with diesel engine/electric motor) |
170l/min |
| Max. pressure |
1.5mpa |
| Work pressure |
0.7mpa |
| Power |
| Diesel engine |
S1100 |
| Electric motor |
Y160M-4 / 10KW |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

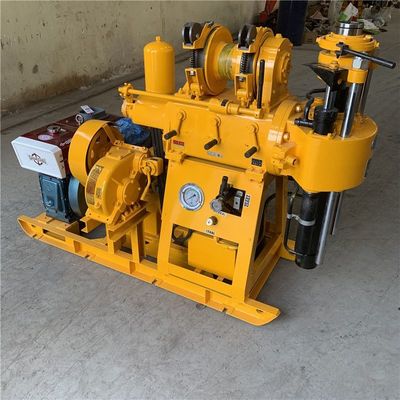

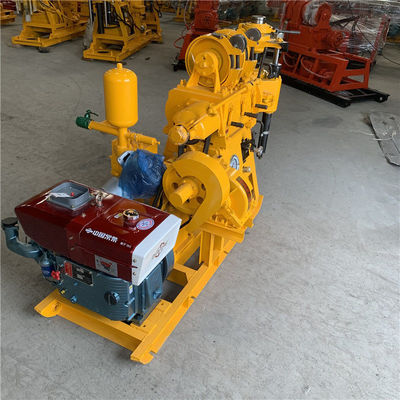

Parameters of XY-150 hydraulic core drilling rig
| Model |
XY-150 |
| Drilling depth(m) |
150 |
| Maximum opening diameter(mm) |
219 |
| The final hole diameter(mm) |
73 |
| Rod diameter(mm) |
42/50 |
| Spindle speed (r/min) |
140/295/470/790/1010 |
| Spindle stroke(mm) |
450 |
| Hoisting capacity (kn) |
14 |
| Steel wire diameter(mm) |
9.3 |
| Maximum pressure (mpa) |
1.2 |
| Working pressure (mpa) |
0.7 |
| displacement(l/min) |
150 |
| Hydraulic pump pressure (mpa) |
1.2 |
| Hydraulic pump rotation speed (r/min) |
1800 |
| Matched driving power (diesel engine and motor) |
S1105 diesel engine and 11kw motor |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
