Spt Core Drill Equipment Xy-1A with 100-150m Engineering Borehole

100-150m Engineering Borehole Spt Drill Rig Xy-1A Drilling Machine

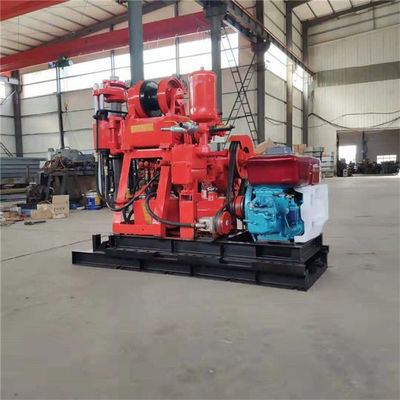

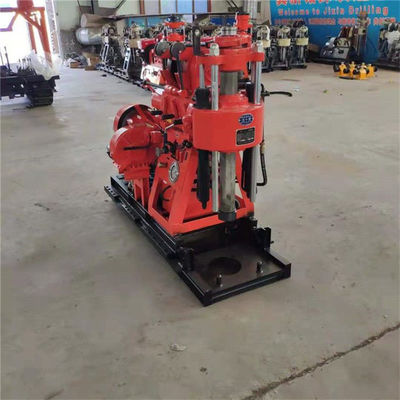

TheXY-1A drill rig is designed on the basis of the xy-1 type rig, which is a low-speed, high-torque rotary drill with a hydraulic pressure.
1. Use and Application Scope of Drill
1.1 It is mainly used in the exploration of solid mineral deposits and geological survey of engineering, and the inspection holes of various concrete structures.
1.2 Diamond, alloy and steel bits can be drilled according to the different strata.
1.3 When the final hole diameter is 75mm and 46mm respectively, the depth of the rated borehole is 100m and 180m respectively, and the maximum depth shall not exceed 110% of the depth of drilling, the rated opening diameter is 110mm and the maximum opening diameter is 150mm.
2 Drill Characteristics
2.1 With oil pressure feeding mechanism, improve drilling efficiency and reduce workers' labor intensity.
2.2 Equipped with a ball card holding mechanism and a six-way active drill pipe, which can be carried out without stopping down, high efficiency, convenient operation and safe and reliable.
2.3 Equipped with hole bottom pressure gauge to indicate pressure, easy to grasp the situation in the hole.
2.4 The handle is concentrated and easy to operate.
2.5 Compact structure, small volume, light weight, strong decomposition, easy to move, suitable for work in the plains or mountains
