50Type Lightweight Core Drill Equipment For Hilly Terrain Core Sampling

1 Set
MOQ
50Type Lightweight Core Drill Equipment For Hilly Terrain Core Sampling
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO: 50Type
Condition: New
Motor: Diesel Engine
Drill Hole Diameter: 75-108mm
Drill Hole Depth: 50
Type: Core Drilling Rig
After-sales Service: Provide Train Video Or Remote
Warranty: Main Parts Within Six Months
Highlight:

Lightweight Core Drill Equipment

,

Hilly Terrain Core Drill Equipment

,

Hilly Terrain Core Sampling Equipment

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: 50 type
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Supply Ability: 50 Sets/Month
Product Description

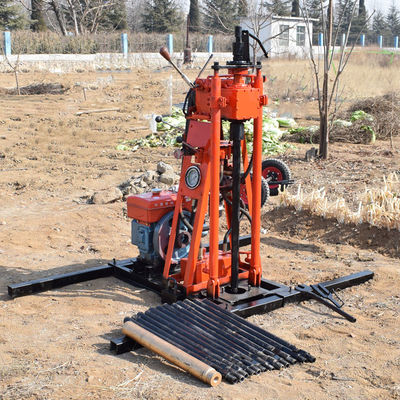

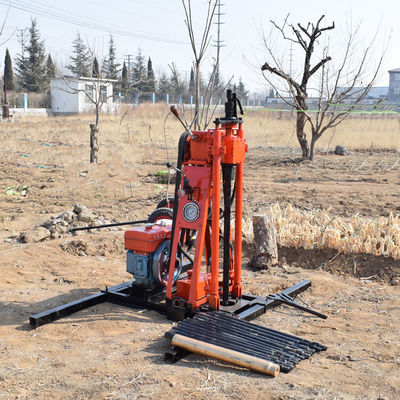

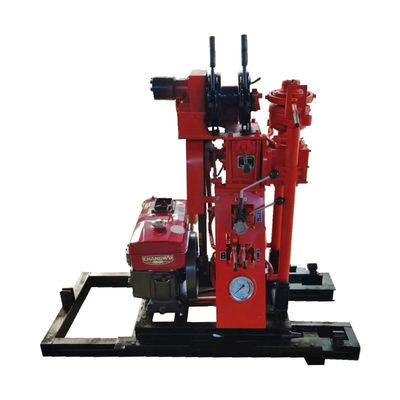

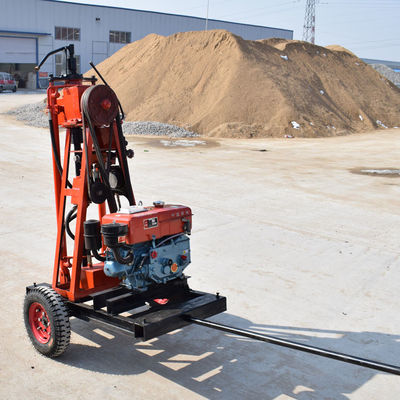

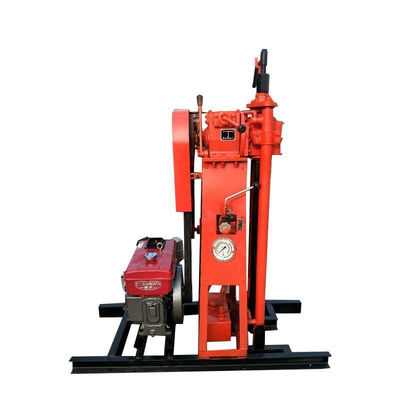

50Type Drill Rig Lightweight Drilling Equipment for Hilly Terrain Core Sampling



Product Description:

50Y Portable Core Drill is a compact and lightweight drilling rig designed for challenging terrains like mountains and hillsides. It features a hydraulic system for efficient core sampling.

Features:

  • 50m drilling depth with a maximum hole opening diameter of 108mm.
  • 90° drilling angle capability.
  • Equipped with an 8HP diesel engine, providing 5.88KW power.

Advantages:

  • Lightweight and portable design for easy transportation.
  • Simple structure and fast drilling speed.
  • Large core sample diameter for better analysis.

Applications:

  • Suitable for geological exploration in mountainous and hilly areas.
  • Ideal for water well drilling and environmental testing.
  • Perfect for construction projects requiring soil sampling and core drilling.

This drill is an excellent choice for professionals needing a reliable and efficient tool for demanding drilling tasks in difficult terrains.

Technical Specifications:

Specification Details
Drilling Depth (m) 50
Max Hole Opening Diameter (mm) 108
Final Hole Diameter (mm) 75
Active Drill Rod 50*3000mm
Drill Rod Diameter (mm) 42
Drilling Angle 90°
Power (Diesel Engine) 8HP 5.88KW
Structural Weight 330kg (including diesel engine)
Dimensions 15006801260mm
Vertical Shaft Vertical Shaft
Vertical Shaft Speed 142/285/570r/min
Vertical Shaft Stroke 450mm
Lifting Force 350kg
Pressure Force 250kg



Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.



50Type Lightweight Core Drill Equipment For Hilly Terrain Core Sampling 050Type Lightweight Core Drill Equipment For Hilly Terrain Core Sampling 150Type Lightweight Core Drill Equipment For Hilly Terrain Core Sampling 250Type Lightweight Core Drill Equipment For Hilly Terrain Core Sampling 350Type Lightweight Core Drill Equipment For Hilly Terrain Core Sampling 4





Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.



The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed grouting machines, mud stations, sprayers, Lurong test packers and Lurong test equipment, diamond drill bits, hole extenders, geological drill rods and casings, exploration drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.



Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.



We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.





Product Name:Hydraulic drilling rig, core drilling rig, soil investigation drilling rig, survey drilling rig, mining drilling rig, water well drilling rig, core drilling equipment
