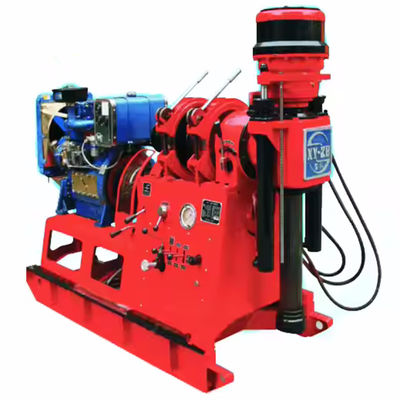

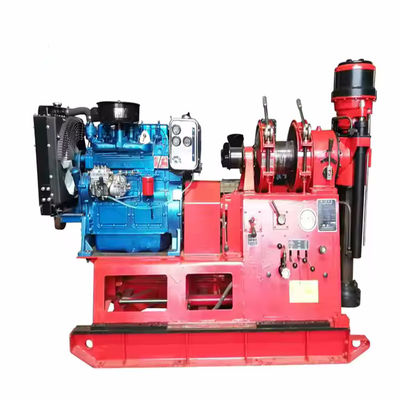

| Model |
XY-2B |
| Drilling rig |
| Drill depth(m) |
530 |
| Initial hole diameter(mm) |
400 |
| Final hole diameter(mm) |
75, 46 |
| Drill rod diameter(mm) |
42 50 60 73 |
| Drill hole inclination |
90° -75° |
| Dimensions(L*W*H) (mm) |
2220×900×1880 |
| Weight(Excluding engie)(kg) |
1200 |
| Stroke(mm) |
450 |
| Rotary table |
| Rotate speed(five speed)(r/min) |
57-1024 |
| Stroke (mm) |
560 |
| Max. upward movement speed (m/s) |
0.08 |
| Max. downward movement speed (m/s) |
0.09 |
| Max. feed pressure(KN) |
50 |
| Max. lifting force(KN) |
60 |
| Diesel engine |
| Model |
4105 |
| Power(Kw) |
34 |
| Rated speed(r/min) |
1980 |
| Motor type |
Y180L-4 |
| Power(KW) |
22 |
| Rated speed(r/ min) |
1650 |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
FAQ:
- ,1. What are our payment methods?
100% prepayment for small sample orders., Prepay 30% deposit for bulk products and pay the remaining 70% before shipment.
2. How to transport products?
Express delivery, air freight, sea freight, train, etc.
3. How to place an order?
Please provide us with the required specifications, models, and quantities, and we will create a PI to confirm the order details. Once we have confirmed everything, we can arrange for payment and finally ship within the time frame we have specified.
4. How to inspect the goods?
Support customers to come to the factory for on-site inspection, support customers to designate third-party companies for inspection, and support video inspection.
5. Can you provide us with the necessary documents for customs clearance?
Yes, of course. We will send you commercial invoices, sales contracts, packing lists, and bills of lading (FOB or CFR, CIF terms).
6. After sales service
The product comes with an English manual and spare parts. We provide 24-hour service through online chat and phone, lifetime free technical support, and overseas service: if you need it, we can dispatch engineers to provide on-site service.
