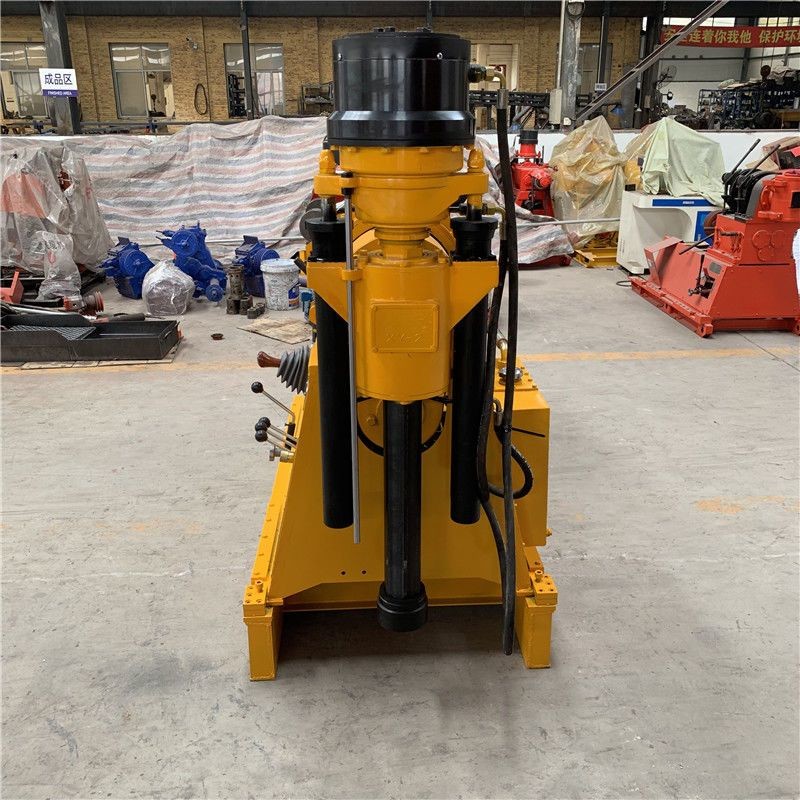

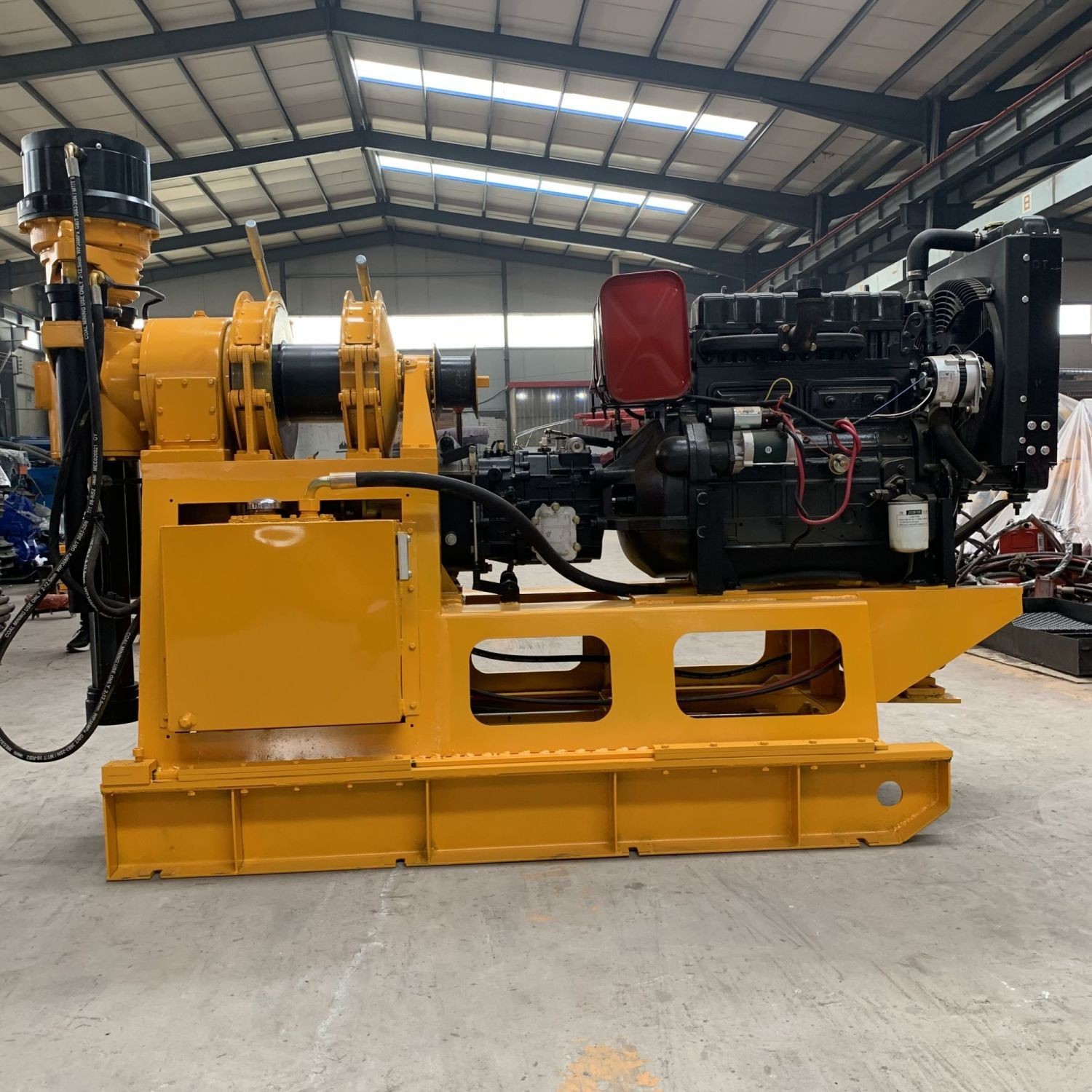

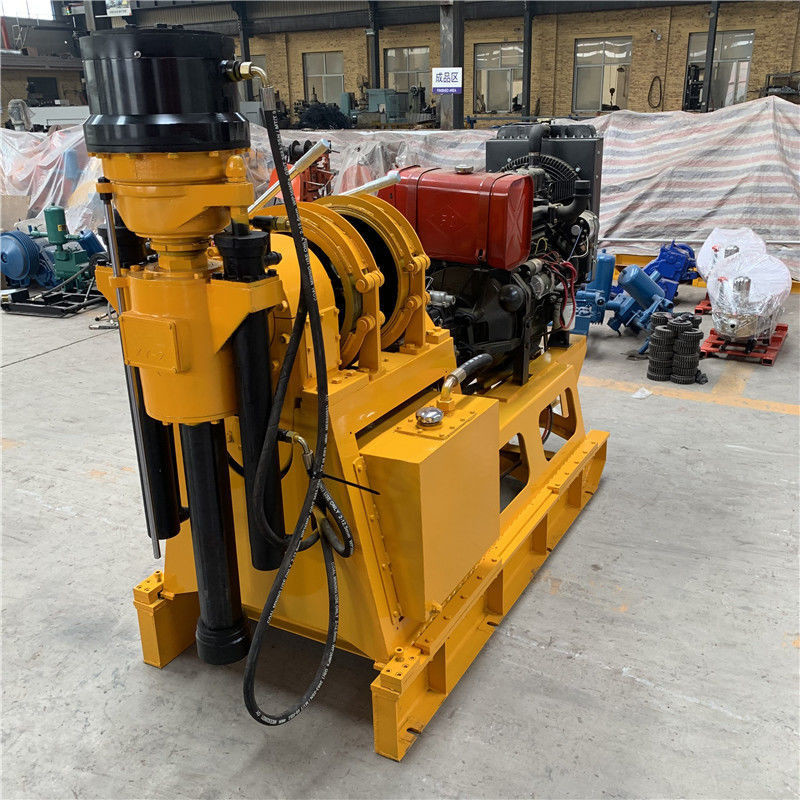

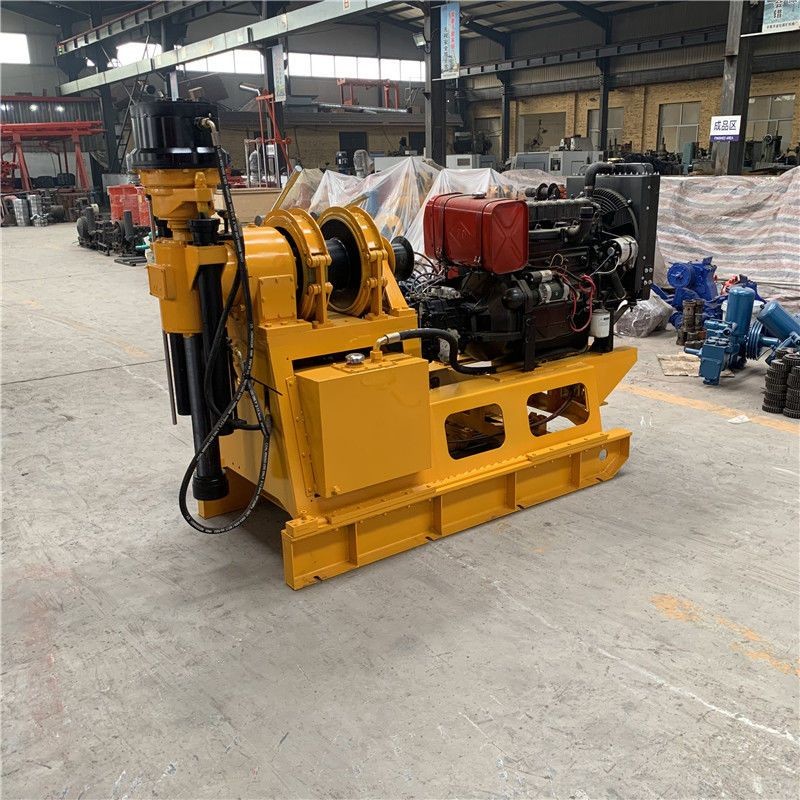

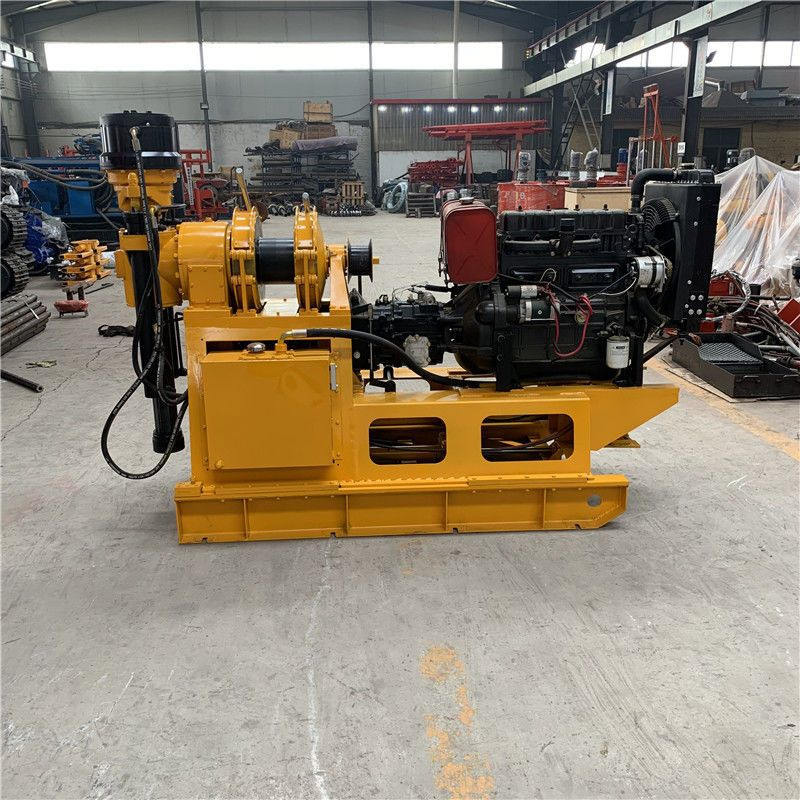

XY-2 Geological Hydraulic Core Drilling Rig With Vertical Shaft

Model XY-2 Widely Used Vertical Shaft Vertical Shaft Hydraulic Geological Core Drilling Rig with Strong Power

1. Scope of application of XY-2 hydraulic core drilling rig

XY-2 Drilling rig is suitable for industrial , civil construction and engineering geological survey work such as highways, railways, bridge foundations, dam sites, water conservancy, water wells, prospecting, shallow oil and natural gas mining, mine tunnel ventilation, drainage, and large-diameter foundations,Pile hole construction, etc. Depending on the layer, diamond, carbide, spiral and other drill bits can be used for configuration. This model of rig has the advantages of compact structure, light weight, small size and good detachability. This drilling rig is the rare and ideal equipment to adapt to new market demands.

2. Main features of XY-2 hydraulic core drilling rig

(1)The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;

(2)With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient;

(3)The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;

(4)With a normally closed hydraulic chuck, it is convenient and flexible to operate;

(5)The vertical shaft through hole has a large diameter, which can be replaced with a large hexagonal active drill rod;

3. Technical parameters of XY-2 hydraulic core drilling rig

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
