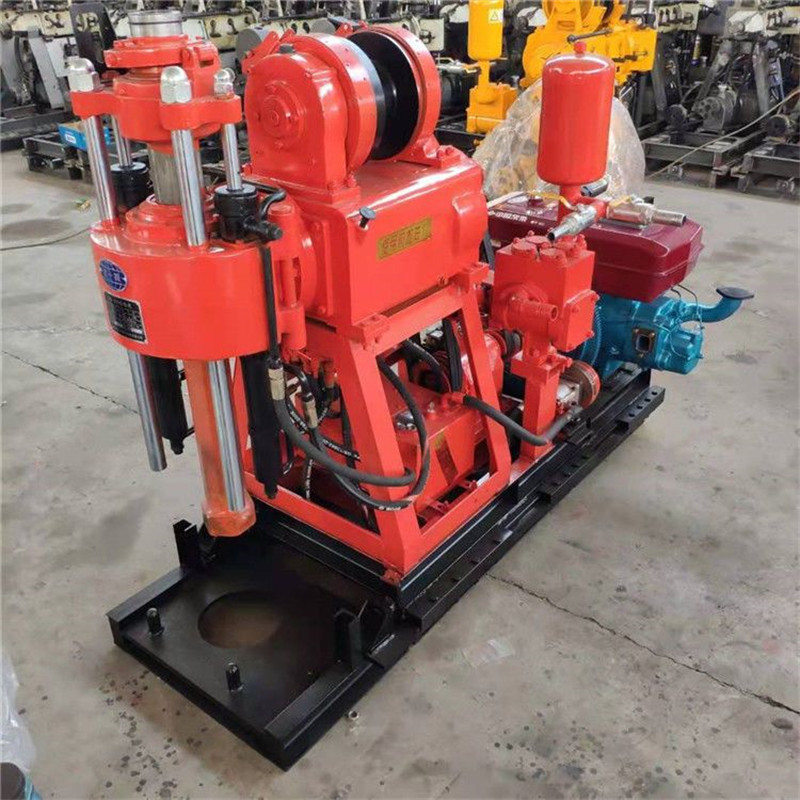

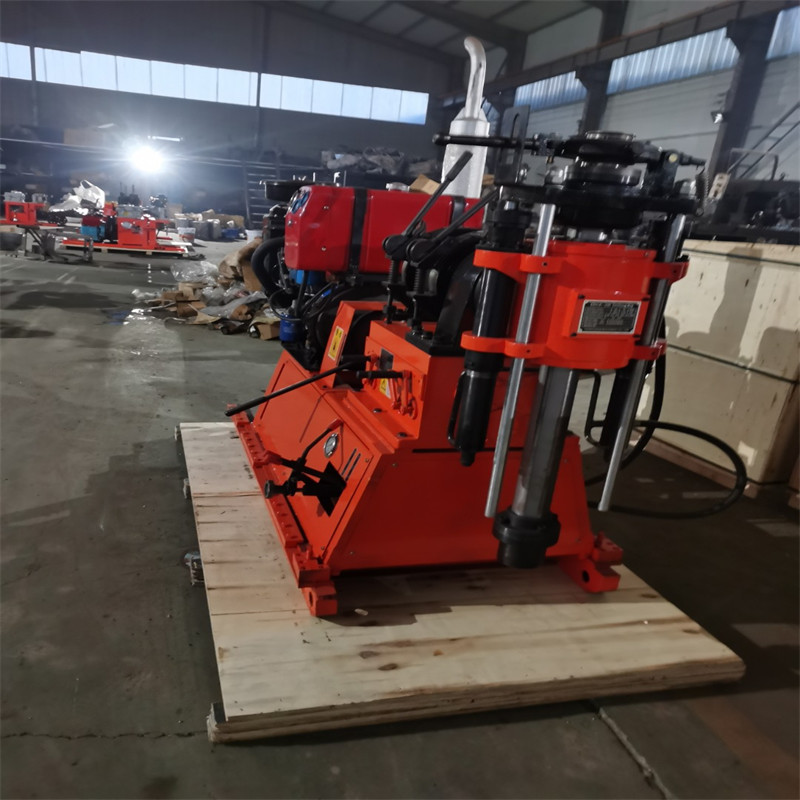

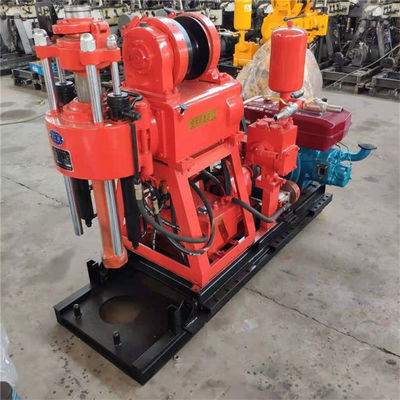

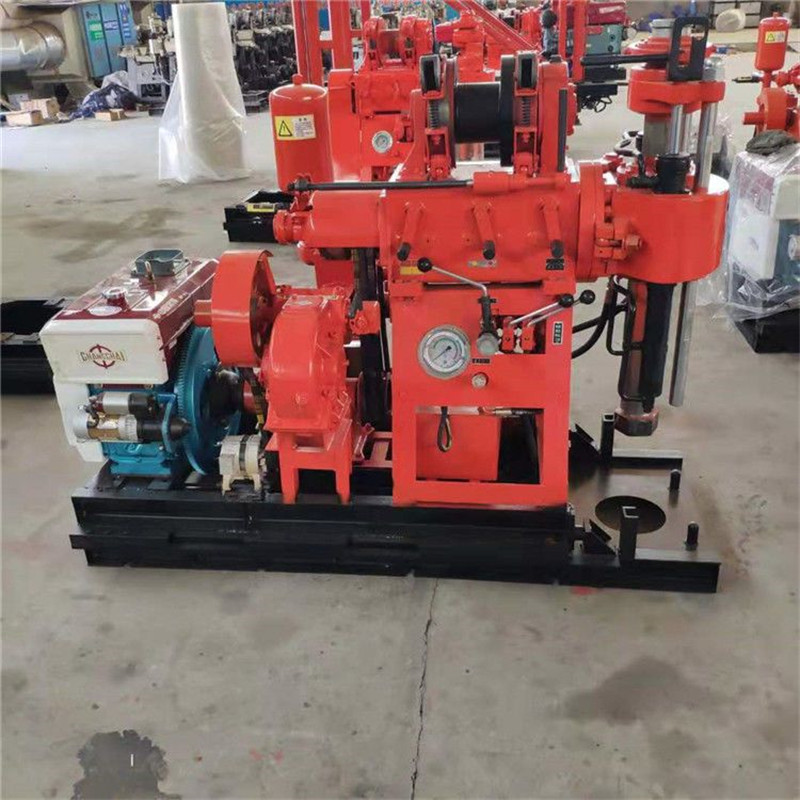

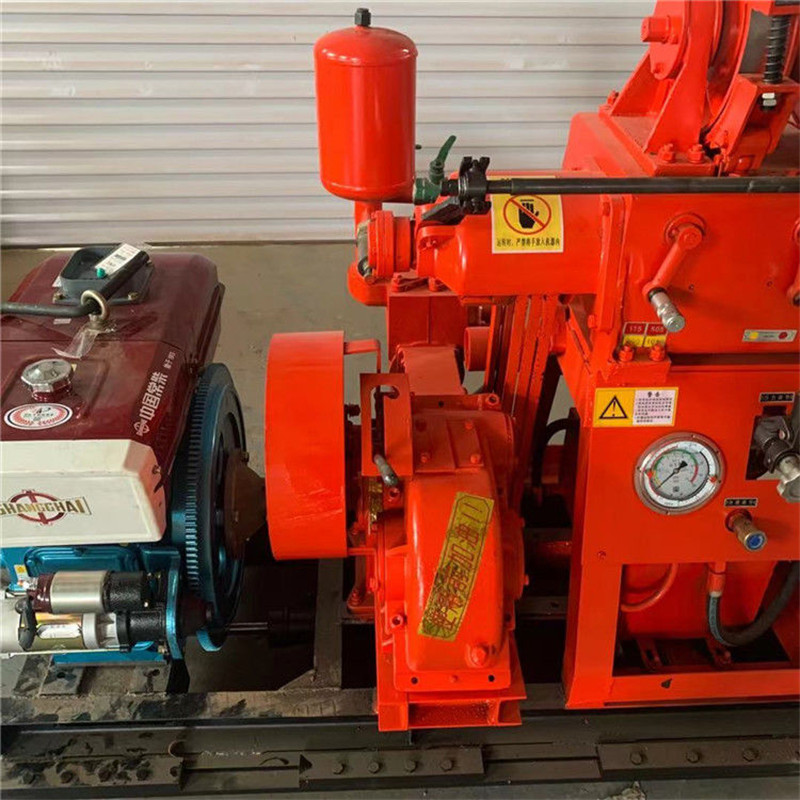

200mHydraulic Geotechnical Geological Core Sampling Drilling Rig

1 Set
MOQ
200mHydraulic Geotechnical Geological Core Sampling Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Hydraulic Geotechnical Geological Core Sampling Drilling Rig: XY-200
Motor: Diesel Engine
Drill Hole Diameter: 75-300mm
Drill Hole Depth: 200m
Bit Type: Diamond Bit
Drilling Way: Rotary
Usage: Soil Survey, Water Well, Coal
Highlight:

geological core drill rig

,

geological core drill equipment

,

diamond bit core drill rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XY-200 type
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

1. Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 hydraulic core drilling rig

Model XY-200
Maximum opening diameter 400mm
Maximum borehole depth 200m
Diameter of the end hole 75mm
Borehole dip angle 90-75°
Machine overall size 2.75*0.95*1.60m
Drill pipe diameter 50mm
Weight of drill rig diameter of drill pipe (without power) 760kg
Spindle
Shaft rotation speed 71/142/310/20r/min
Vertical axis stroke 450mm
Windlass
Maximum lifting weight of single rope 2008kb
Drum lifting speed 17/35/75/160 rm/s
Wire rope diameter: 13mm
Wire rope capacity 35mm
Width of sluice 70mm
Mud pump
Type: horizontal single cylinder double action flow:180L/min
Maximum pressure 1.5mpa
Working pressure 0.7mpa
Inlet size 50mm
Outlet pipe diameter 45mm
Power
Diesel oil 22hp
Rated speed 2200r/min
Electric machinery 15kw
Rated speed 1460r/min

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
