Name: XY-150 Type Wheel Mounted Spt Soil Test Core Drilling Machine
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: XY-150 type
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: XY-150Type

Condition: New

Motor: Diesel Engine

Drill Hole Diameter: 46-300mm

Drill Hole Depth: 150m

Bit Type: Diamond Bit

Drilling Way: Rotary

Usage: Geotechnical, Soil Test, Water Well

Diesel Engine: Changchai Zs1105

Highlight:

diamond bit core drill rig

diesel engine core drill rig

diamond bit core drill equipment

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: XY-150 type

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 30 Sets/Month

Gallery

XY-150 Type Wheel Mounted Spt Soil Test Core Drilling Machine

Product Description

XY-150 Type Wheel Mounted Spt Soil Test Core Drilling Machine

XY-150Type is a portable and multipurpose engineering exploration drilling rig, applicable to the engineering geological exploration in fields of industrial and civil buildings, railways, bridges, hydropower engineering, as well as small-diameter foundation pile hole drilling.

1. Large torque, multiple drilling speeds in an appropriate range.

2. With 2-wheels trailer, the rig can be moved by towing the trailer.
3. Capable to drill inclined holes at different angle.
4. High efficiency drilling with hydraulic feeding structure.
5. Multiple usages, geotechnical investigation for engineering constructions, SPT soil test, mineral exploration, small size pile hole, water well boring.

The technical parameter of the XY-150Type Drilling Rig:

Basic Parameters
Drilling depth	45-180m
Drilling diameter	300-76mm
Drill pipe diameter	42mm 50mm AW BW AWJ BWJ
Gross weight of drilling machine(engine not included)	500kg
Dimension (length ×width × height)	2050 × 1180× 1420 mm
Revolving Plate
Rated speed	60 200 400 610 1100 r/min
Maximum torque	1800N*m
Driving travel	450mm
Maximum Cylinder driving force	20KN
Maximum Cylinder lifting force	30KN
Lifter
Lifting capacity	24KN
Bobbin line speed (2 layers)	0.20 0.72 1.26 2.8 m/s
Bobbin diameter	125mm
Rope diameter	11mm
Rope capacity	26m
Oil pumps:
Displacement:	20ml/r
Normal speed	2500r/min
Normal pressure	20MPa
Max pressure	25MPa
Drive motor
Type	Changchai ZS1105 diesel engine
Rated power	13.2KW
Rated speed	2200r/min
weight	163kg
Frame
Type	Sliding type(with base frame)
Movable travel of drill	400m
Distance between drill and hole-opening	280mm

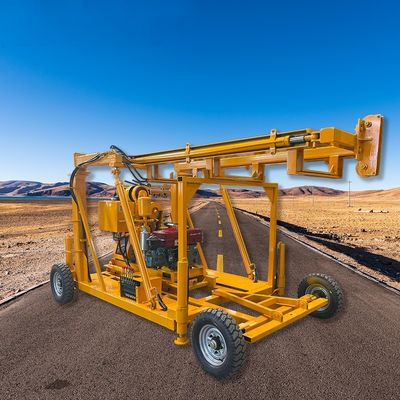

XY-150 Type Wheel Mounted Spt Soil Test Core Drilling Machine 0

XY-150 Type Wheel Mounted Spt Soil Test Core Drilling Machine 2
