Name: Xy-1 100m Hydraulic Rotary Geotechnical Investigation Core Drilling Rig Water Well Drilling Rigs
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: XY-100 type
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Motor: Diesel Engine

Drill Hole Diameter: 100-150mm

Drill Hole Depth: 100-150m

Diesel Model: 7.5kw

Bit Type: Diamond Bit

Drilling Way: Rotary

After-Sales Service Provided: Video Technical Support

Machine Type: Geological Survey Coring Equipment

Highlight:

100m core drilling rig

100m crawler drilling rig

geological core drilling rig

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: XY-100 type

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 30 Sets/Month

Gallery

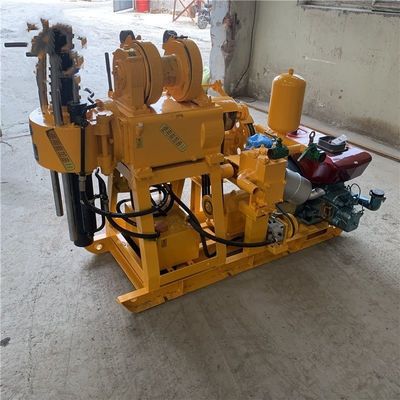

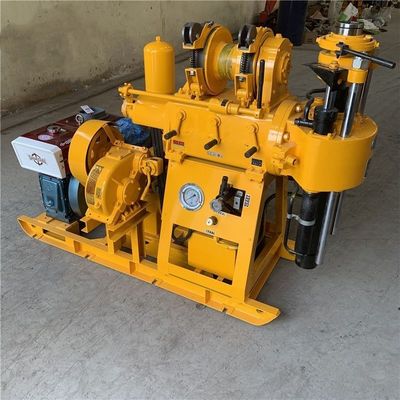

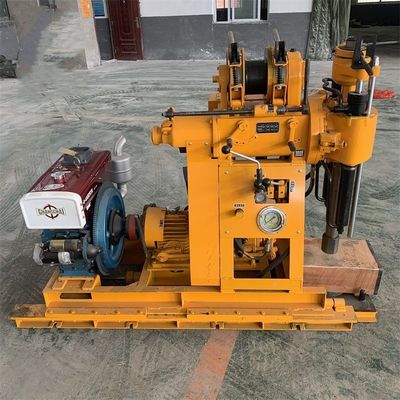

Xy-1 100m Hydraulic Rotary Geotechnical Investigation Core Drilling Rig Water Well Drilling Rigs

Product Description

XY-1 Core Drilling Rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction survey, blast holes, and other drilling operations.

With hydraulic automatic feeding device, elevated drilling efficiency.
The holding mechanism with upper spherical jaws is used as a substitute for chuck. The rod can be replaced without shutdown.
Centralized handles, easy operation, safe and reliable.
The drilling machine, pump, and diesel engine are installed on a common base frame in order to have a compact structure and occupy a small field area.

Lightweight, high detachability, easy transportation, and suitable for operations in plains or mountain areas.

Technical Specifications

Drill

Specification	Value
Drilling depth	100m
Drill rod diameter	42mm
Initial hole diameter	110mm
Final hole diameter	75mm
Angle range	90°-75°
Dimensions (LxWxH)	1640x730x1440(mm)
Weight (without power unit)	500kg

Swivel Head

Specification	Value
Spindle speed (3-speed)	142, 285, 570r/min
Spindle stroke	450mm
Upward displacement speed	0.05m/s
Downward displacement speed	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN

Hoist

Specification	Value
Max. lifting capacity (1-speed, single rope)	10KN
Cable volume (number) of hoisting drum	27m
Wire rope diameter	9.3mm
Oil Pump	Model Y3C-12/125

Mud Pump

Specification	Value
Model	(Horizontal reciprocating single-acting piston pump)
Displacement max	95L/min (diesel engine) / 77L/min (motor)
Allowable working pressure max	1.2Mpa
Continuous working pressure	0.7Mpa
Suction pipe diameter	32mm
Discharge pipe diameter	25mm

Power (Diesel Engine or Motor)

Specification	Value
Model (Diesel Engine)	S1100A2
Rated Power	12.1KW
Rated Speed	2200r/min
Model (Motor)	Y132M-4
Rated Power	7.5KW
Rated Speed	1440r/min

Drilling machine advantages:
1. With hydraulic automatic feeding mechanism, high drilling efficiency

2. The upper ball clamping mechanism is used instead of the chuck, which can realize the non-stop reverse lever

3. The handle is centralized, easy to operate, safe and reliable

4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same chassis

5. Small footprint, light weight, strong decomposability, easy to relocate, suitable for various terrains such as plains and mountains

Xy-1 100m Hydraulic Rotary Geotechnical Investigation Core Drilling Rig Water Well Drilling Rigs 0

Xy-1 100m Hydraulic Rotary Geotechnical Investigation Core Drilling Rig Water Well Drilling Rigs 3

Tag:

Tel :	+86-15132806565
Fax :	Hengshui Aoxing Metal Products C

Xy-1 100m Hydraulic Rotary Geotechnical Investigation Core Drilling Rig Water Well Drilling Rigs

100m core drilling rig

100m crawler drilling rig

geological core drilling rig
