Portable Soil Investigation Core Drilling Rig and Spt Equipment

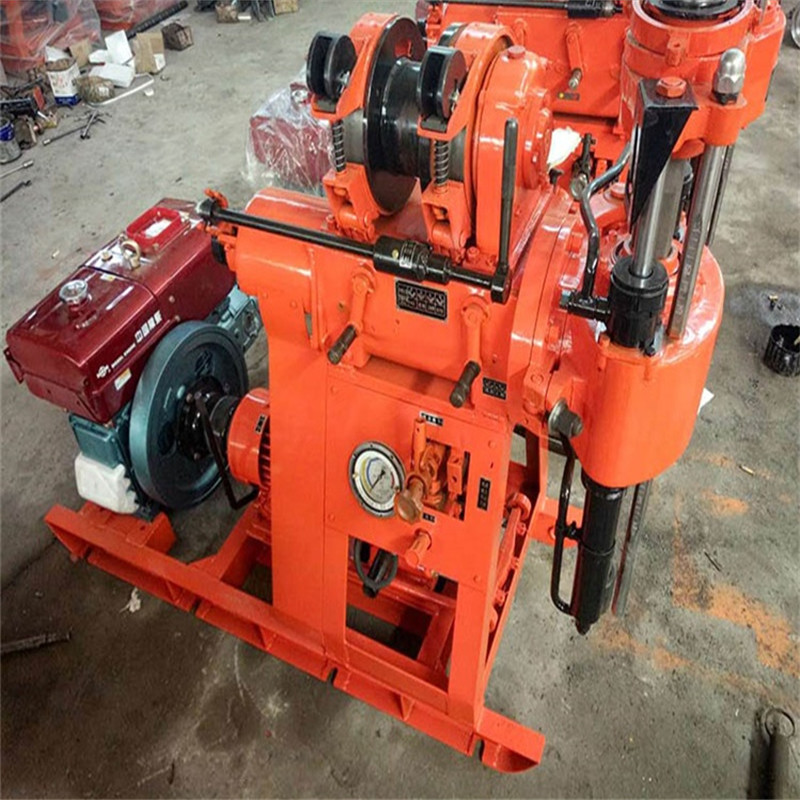

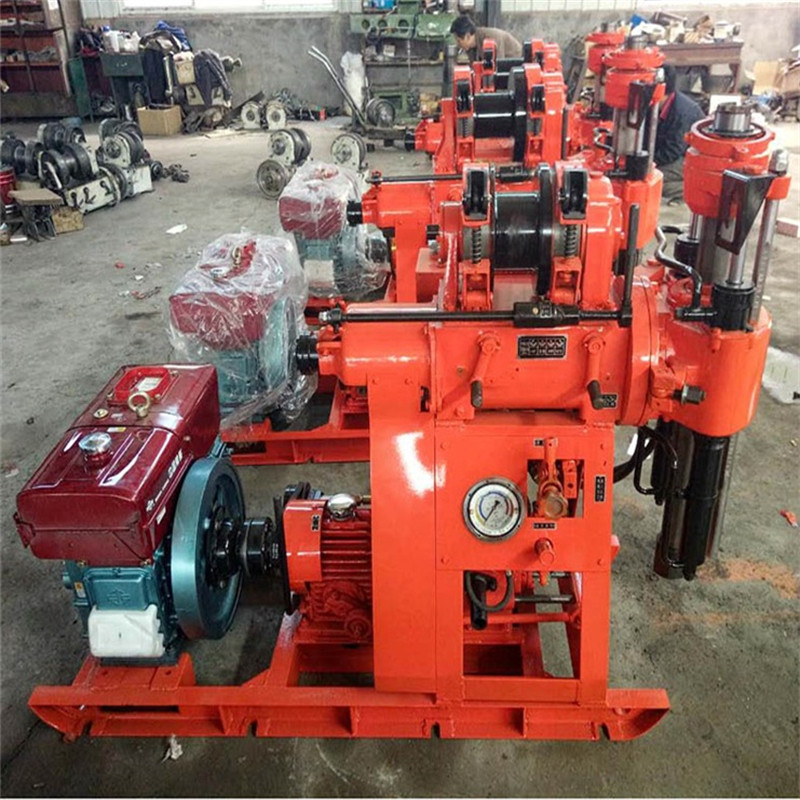

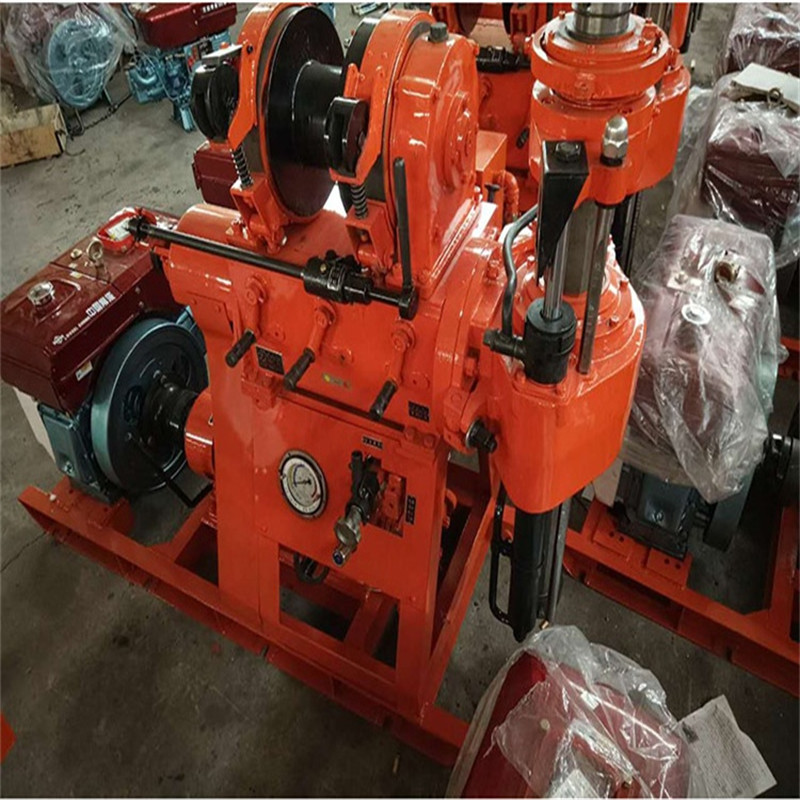

XY-100/XY180/XY-200 small drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc. Drilling dia. will from 50-200mm or larger according to clients requirement. Different layer condition will need different bits, soil or soft layer will need clay bit, or ally bit, drag bit, for hard rock will need diamond bit, tricone bit etc.

Features:

1.with oil pressure automatic feed mechanism, it can improve drilling efficiency and reduce workers' physical work.

2.it adopts ball cassette clip to replace chuck and can perform non-stop rod reversing. It is easy to operate ,safe and reliable.

3.a pressure gauge is equipped at the bottom of a hole to grasp the condition of the hole.
4.the centralized handle is easy to operate and easy to maintain.

5.compact structure: drilling rig, pump and diesel engine are on the same base.

6.light weight and easy decomposition to quick to move, so it is applicable to plains and mountainous areas.
