Core geological exploration drilling rig

1 Set
MOQ
Core geological exploration drilling rig
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

geological core drill rig

,

geological core drill equipment
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: 130/180/200
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 30 Sets/Month
Product Description

Introducing the XY Core Drill Rig – the ultimate solution for drilling projects in Geological Survey Exploration, Geophysical Exploration, Road and Construction Exploration, and Blast and Breakhole.



Specification

Model (YY series products) XY-130Y/130YY XY-18OY/18OYY XY-200Y/200YY
Depth (m) 130 180 200
Opening diameter. (mm) 220 220 325
Endend hole dia. (mm) 75 75 75
Rod dia (mm) 42-60 42-60 42-60
Drilling angle (°) 90-75 90-75 90-75
Traction power (kw) 13.2 13.2 15
Weight without power distribution (kg) 560 610 1150
Unqualified (mm) 2.4*0.7*1.4 2.4*0.6*1.4 2.7*0.9*1.6
Speed (r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Memory lesson (mm) 450 450 450
Maximum tension (kg) 1600 2000 2400
Speed of each unit (m/min) 0.41-1.64 0.35-2.23 0.12-0.95
The diameter of the wire rope is Rope dia. (mm) φ9.3 φ9.3 φ12.5
Capacity (m) 27 35 35
Fixed load (tons) 2 2 5
Are you free on Wednesday afternoon? 6 6 6
Size specification (L/min) 95 95 145
Maximum pressure.Pressure (Mpa) 1.2 1.2 2
Time (yuan/min) 93 93 93
Water spray hose dia. (mm) 51 51 51
Pumping hose dia. (mm) 32 32 32

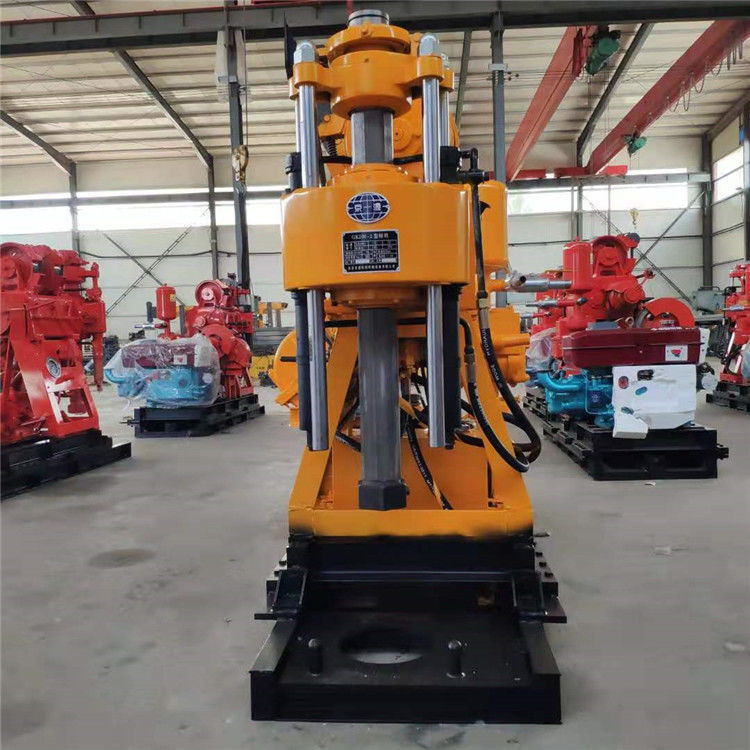

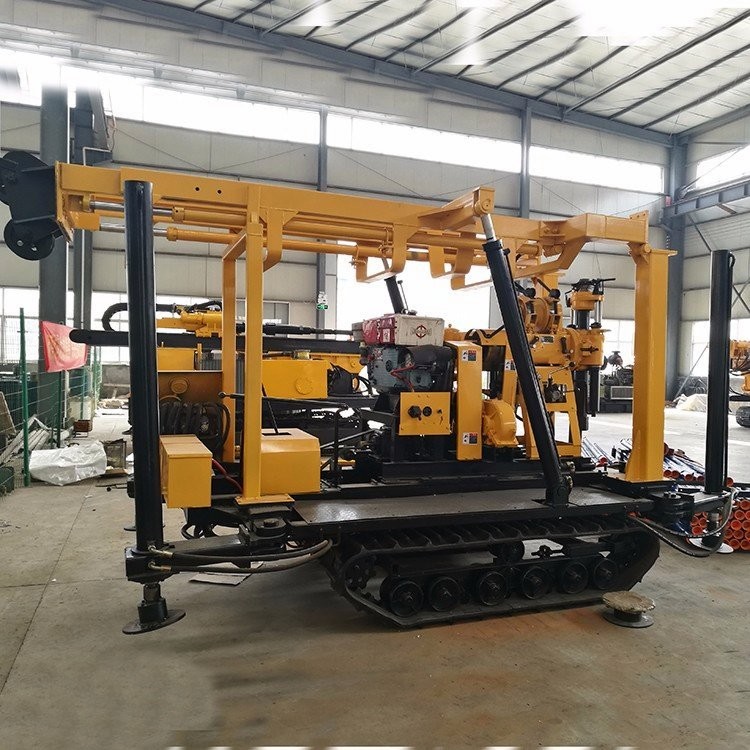

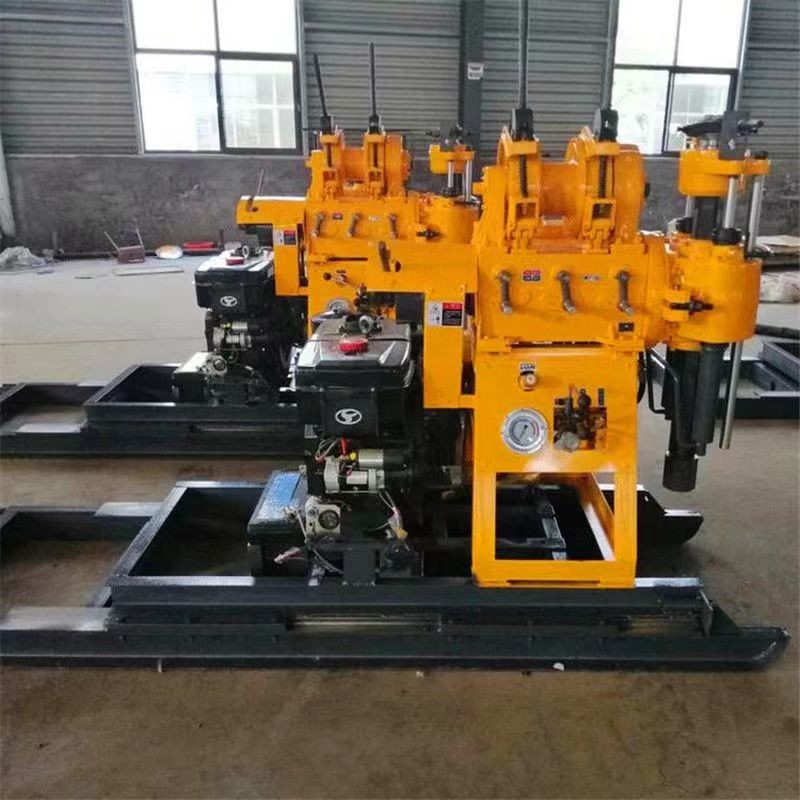

Core geological exploration drilling rig 0Core geological exploration drilling rig 1



Advantage:

1. It has an automatic oil pressure feeding mechanism to improve drilling efficiency and reduce the labor intensity of workers.

2. The ball card clamping mechanism is used instead of the chuck, and the non-stop inverted bar can be implemented, which is easy to operate, safe and reliable.

3. The hoist is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong shocks.

4. The four sets of bearings of the vertical shaft box are positioned to ensure that the rotary device is rigid enough to cope with complex geological conditions such as gravel layer and pebble layer.

5. This machine adopts a taper clutch, which has the outstanding characteristics of high transmission torque, easy operation and maintenance-free.
