Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: AQ BQ NQ HQ PQ TQ LTK

Use: Rock Drilling

Application: Geological Drilling And Mineral Exploration

Material: Diamond

Machine Type: Drilling Equipment

Origin: China

Highlight:

mineral core bits

mineral impregnated diamond core drill bits

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: AQ、BQ、NQ、HQ、PQ、PQ3、HQ3、NQ3、BQ3、NQ2

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 1000 Piece/Month

Gallery

Nmlc Hmlc Diamond Reaming Shell Enhanced Drilling Safety

Product Description

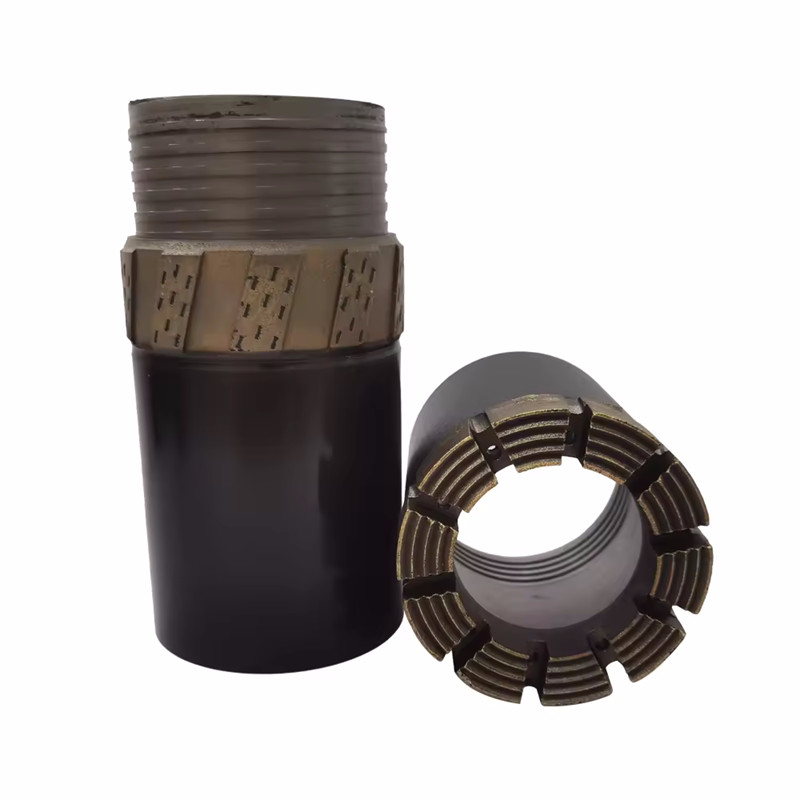

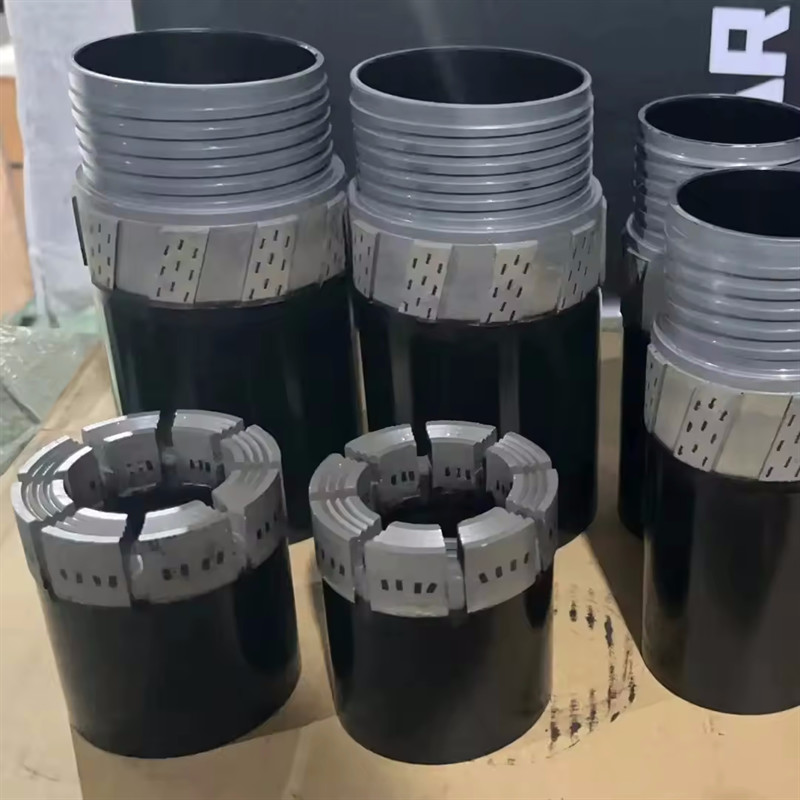

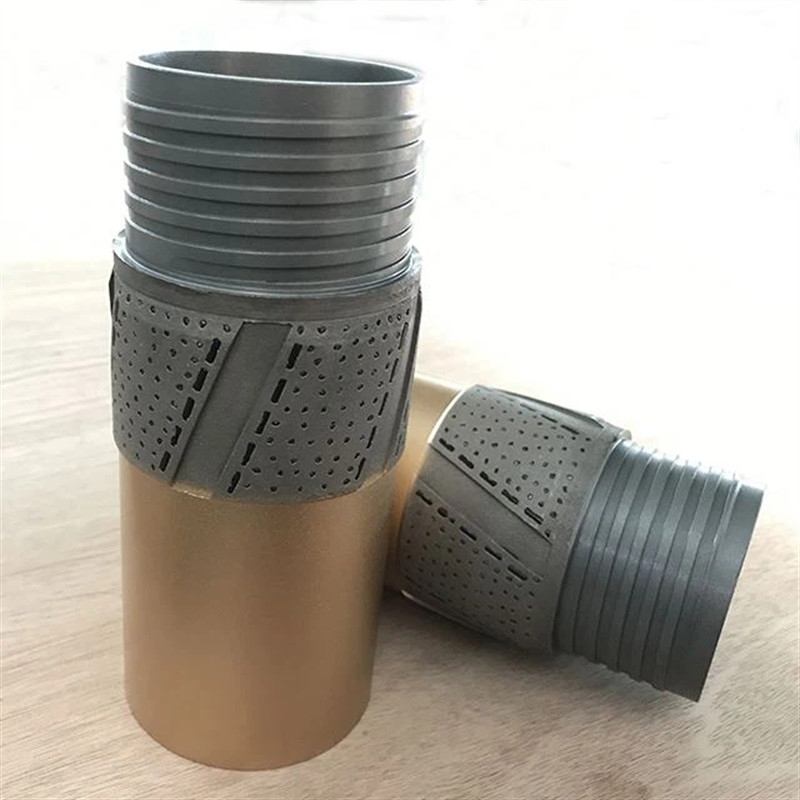

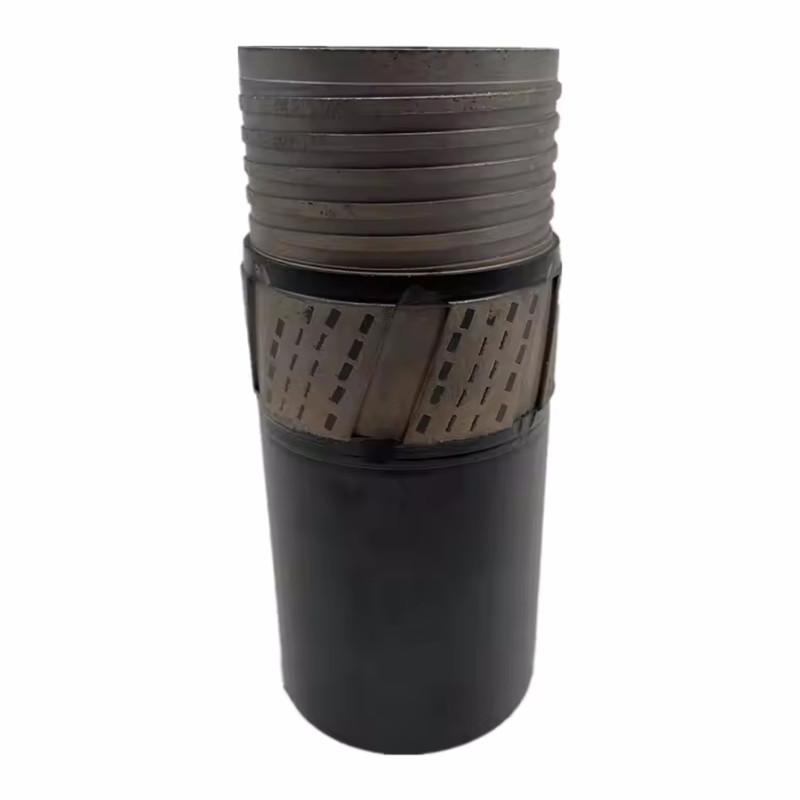

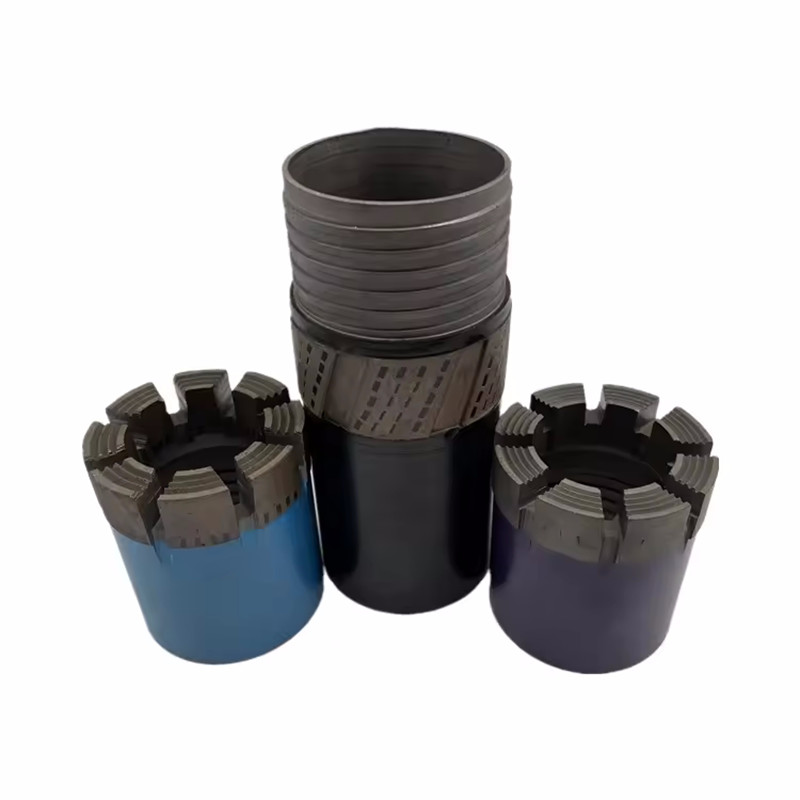

Nmlc Hmlc Diamond Reaming Shell Enhanced Drilling Safety

Product Description

Brief Introductions of Reaming Shells
Reaming shell is used to couple the drill bit with the core barrel. It is suitable for use on all conventional and wireline core barrel. This product is mainly designed to ream the hole to the standard diameter. It can keep the stability of the core barrel. When the old bit is replaced by the new one, reaming shell can also provide sufficient clearance for the new bit. It can also help to resist the abrasion of the core barrel. This type of diamond tool is physically longer than the standard type. So for the compensation of the difference in reaming shell length, an appropriate inner tube extension is necessary to be used.
Ranging from broken and abrasive to consolidated and non-abrasive formations, reaming shells are all suitable to use. We can produce reaming shells with 6", 10" and 18" length.

Features of Reaming Shells
1) Acts as a stabilizer for drill bit.
2) Be set with natural or synthetic diamond.
Our reaming shells enjoy the best quality and most special design in the industry. With several different types, we try our best to satisfy any of your requirements.

Regular double tube reamer

LTK Reamer

No.	Std.	Item	OD(mm)(mm)	Grade
1	LTK48(48TT)	reamer	48.0	B D
2*	LTK60(60TT)	reamer	60.0	B D

T Series Casing Reamer

No.	Std.	Item	OD(mm)	Grade
1*	T2-46	reamer	46.3	B
2*	T2-56	reamer	56.3	B
3*	T2-66	reamer	66.3	B D
4*	T2-76	reamer	76.3	B D
5	T2-86	reamer	86.3	B D
6	T2-101	reamer	101.3	B D
7	T6-76	reamer	76.3	B D
8*	T6-86	reamer	86.3	B D
9*	T6-101	reamer	101.3	B D
10*	T6-116	reamer	116.3	B D
11*	T6-131	reamer	131.3	B D
12*	T6-146	reamer	146.3	B D
13*	T6S-76	reamer	76.3	B D
14*	T6S-86	reamer	86.3	B D
15*	T6S-101	reamer	101.3	B D
16*	T6S-116	reamer	116.3	B D
17*	T6S-131	reamer	131.3	B D
18*	T36	reamer	36.3	B
19*	TT46	reamer	46.3	B
20*	TT56	reamer	56.3	B

MLC/WG/WM Reamer

No.	Std.	Item	OD(mm)	Grade
1	NMLC	reamer	75.7	B D
2	HMLC	reamer	99.2	B D
3*	AWG	reamer	48.0	B
4	BWG	reamer	59.9	B D
5	NWG	reamer	75.7	B D
6	NWM	reamer	75.7	B D

JP/YP Reamer

No.	Std.	Item	OD(mm)	Grade
1	YP36	reamer	37.0	B
2	YP47	reamer	47.0	B
3	JP75	reamer	75.7	B
4	JP95	reamer	95.5	B
5	JP110	reamer	111.5	B
6	JP130	reamer	131.5	B

FAQ:

Q: Can diamond reaming shells be used in drilling for blasting and quarrying?
A: Yes, diamond reaming shells can be used in drilling operations for blasting and quarrying purposes.
Q: Can diamond reaming shells be used in drilling for foundation engineering?
A: Yes, diamond reaming shells are applicable to drilling operations for foundation engineering projects.
Q: Can diamond reaming shells be used in drilling for soil investigation?
A: Yes, diamond reaming shells are commonly used in drilling operations for soil investigation and sampling.
Q: Can diamond reaming shells be used in drilling for groundwater monitoring wells?
A: Yes, diamond reaming shells are commonly used in drilling operations for groundwater monitoring well installation.
Q: Can diamond reaming shells be used in drilling for seismic exploration?
A: Yes, diamond reaming shells can be used in drilling operations for seismic exploration and data collection.
