Name: Small Hydraulic Core Drilling Machine For Soil And Rock Sampling
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: XY-100 type
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Highlight:

Small Hydraulic Core Drilling Machine

Soil Hydraulic Core Drilling Machine

Rock Hydraulic Core Drilling Machine

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: XY-100 type

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 50 Sets/Month

Gallery

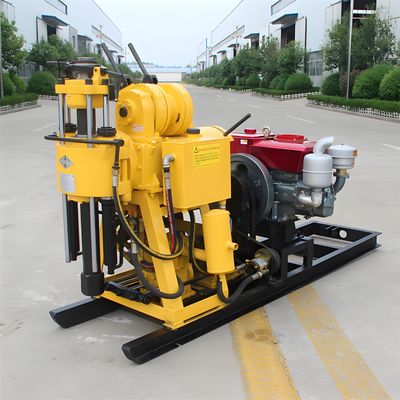

Small Hydraulic Core Drilling Machine For Soil And Rock Sampling

Product Description

Small Core Drill/Drilling Machine for Soil and Rock Sampling

XY-1 drilling machine for soil and rock sampling

Advantages:
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

Technical Specifications

Technical Specifications
Drill
Drilling depth	100m
Drill rod dia.	42mm
Initial hole dia.	110mm
Final hole dia.	75mm
Angle range	90°-75°
Dimensions(L×W×H)	1640×1030×1440 (mm)
Weight(without power unit)	500kg
Swivel Head
Spindle speed(3-speed)	142/285/570 r/min
Spindle stroke	450mm
upward displacement speed of idling vertical spindle	0.05m/s
Downward displacement speed of idling vertical spindle	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN
Hoist
Max .lifting capacity(1-speed,single rope)	10KN
Cable volume (number) of hoisting drum	27m
Wire rope dia.	9.3mm
Mud Pump
Model	Horizontal reciprocating single-acting piston pump
Displacement max
Equipped with diesel engine	95L/min
Equipped with motor	77L/mm
Allowable working pressure max	1.2Mpa
Continuous working pressure	0.7Mpa
Suction pipe dia	32mm
Discharge pipe dia	25mm
