Home /Products/Soil Investigation Drilling Rig/Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration

Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration

1 Set
MOQ
Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration
Features Gallery Product Description Request A Quote
Features
Specifications
Model: DTD-20
Drilling Depth (m): 5-30
Hole Diameter (mm): 44-108
Bit Type: Diamond Bit
Type: Portable
After-Sales Service Provided: Video Technical Support
Highlight:

Vertical Soil Investigation Drilling Rig

,

Soil Investigation Drilling Rig 30m

,

Diamond Soil Investigation Drilling Rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: DT-20
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

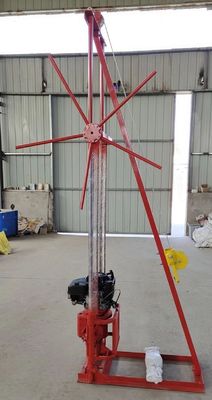

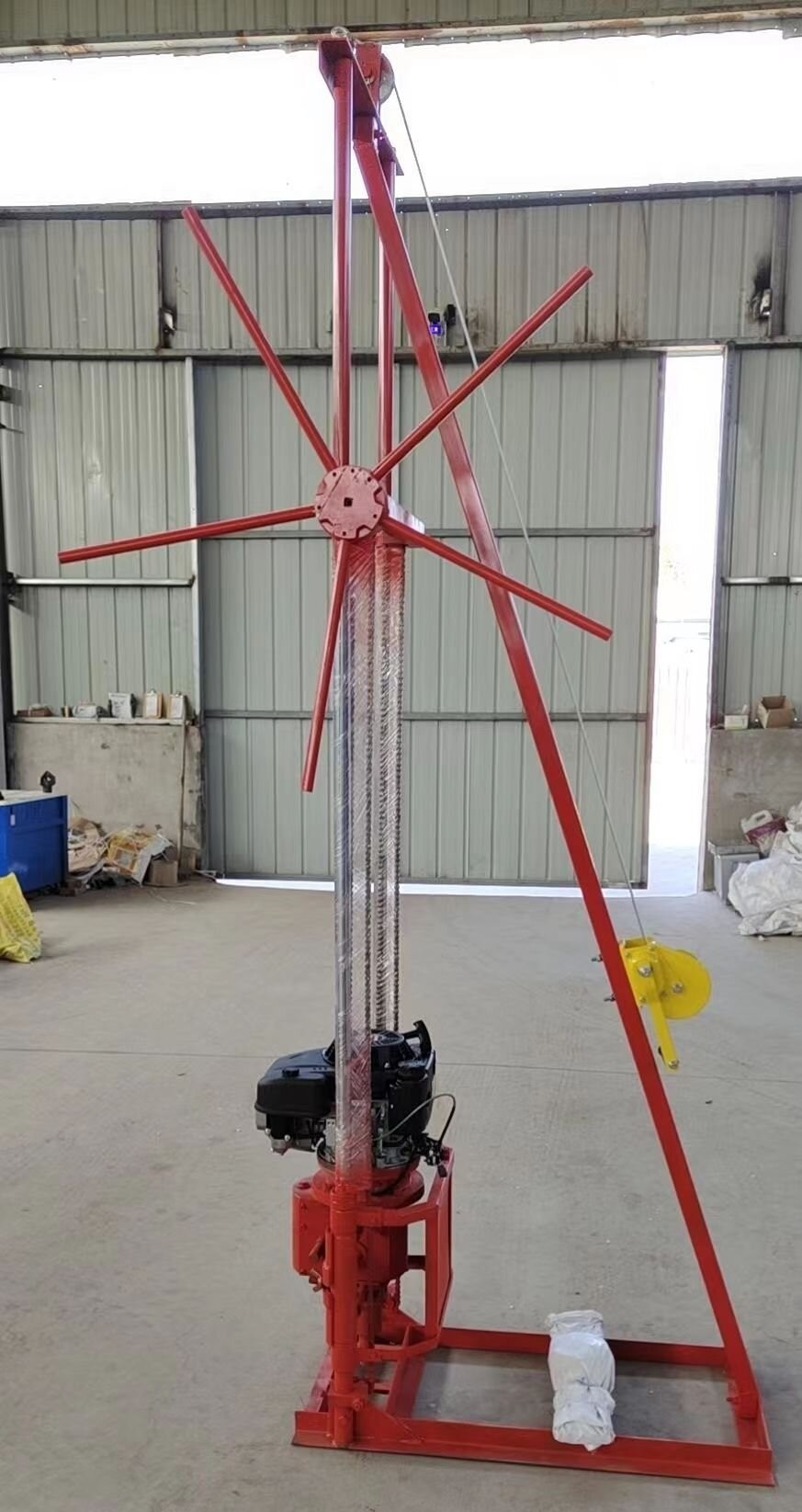

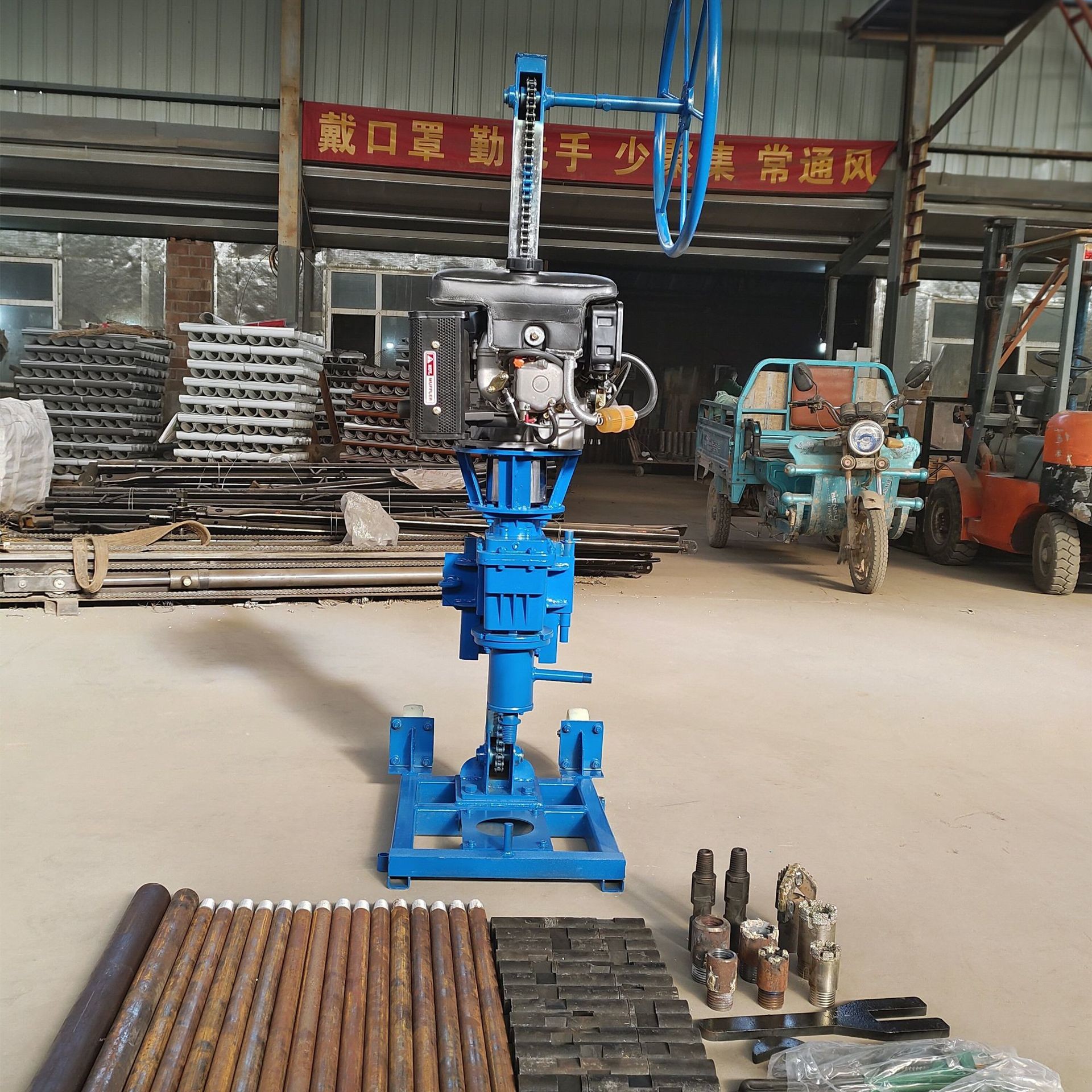

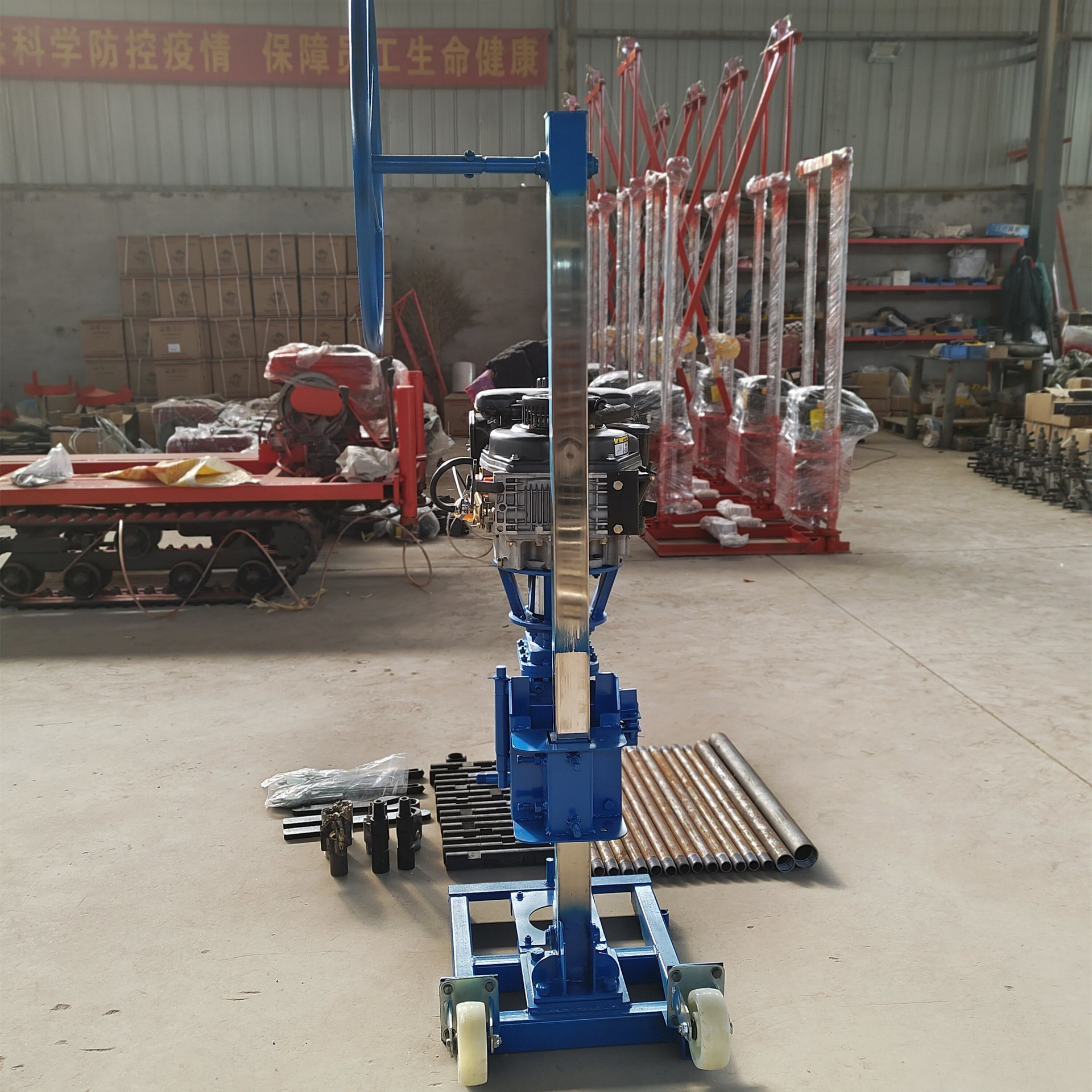

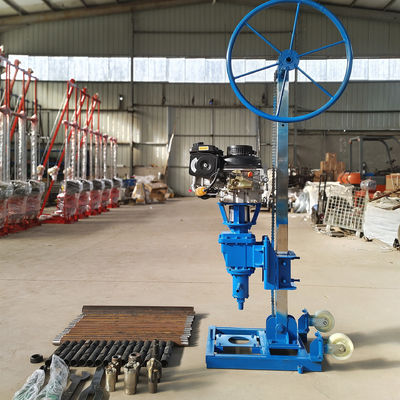

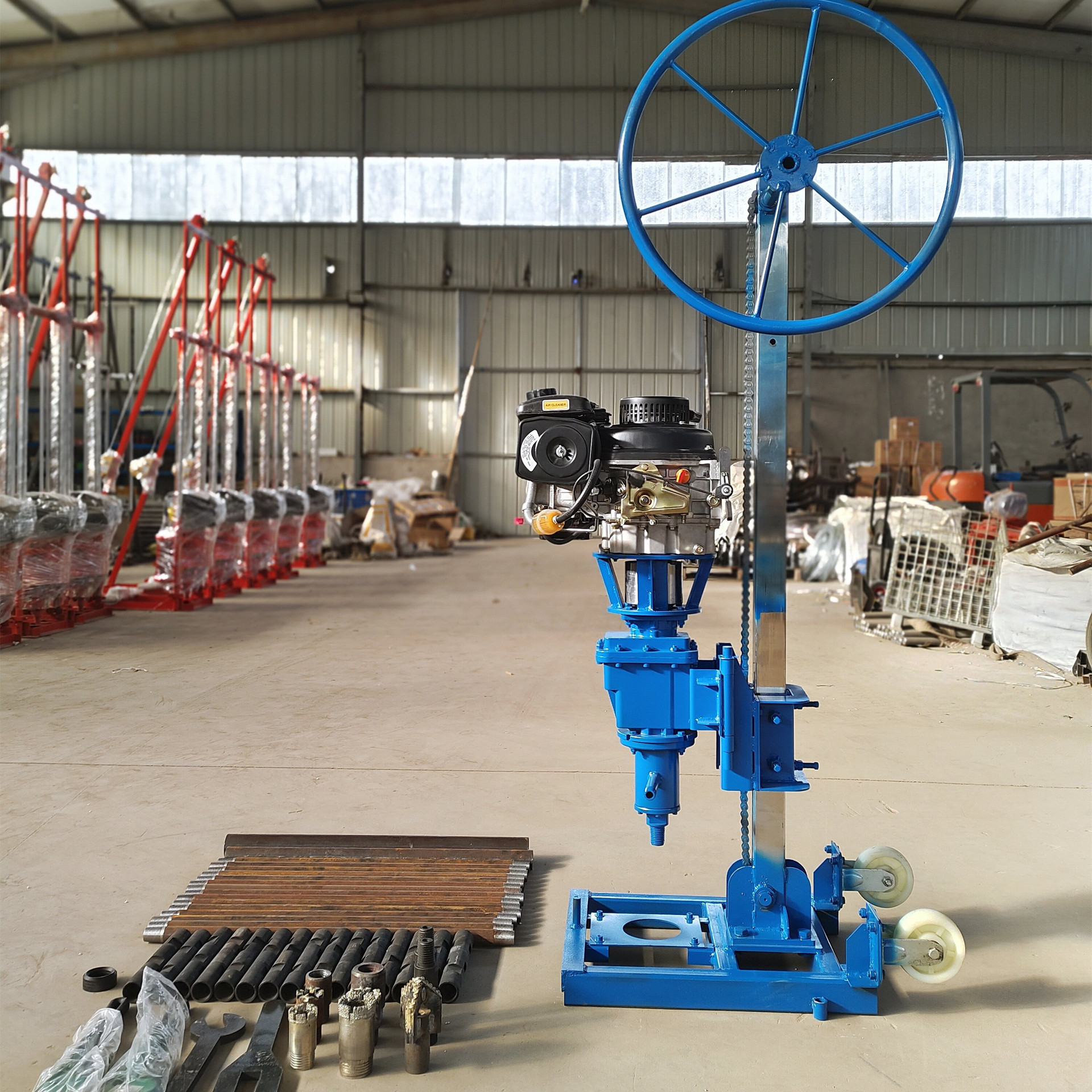

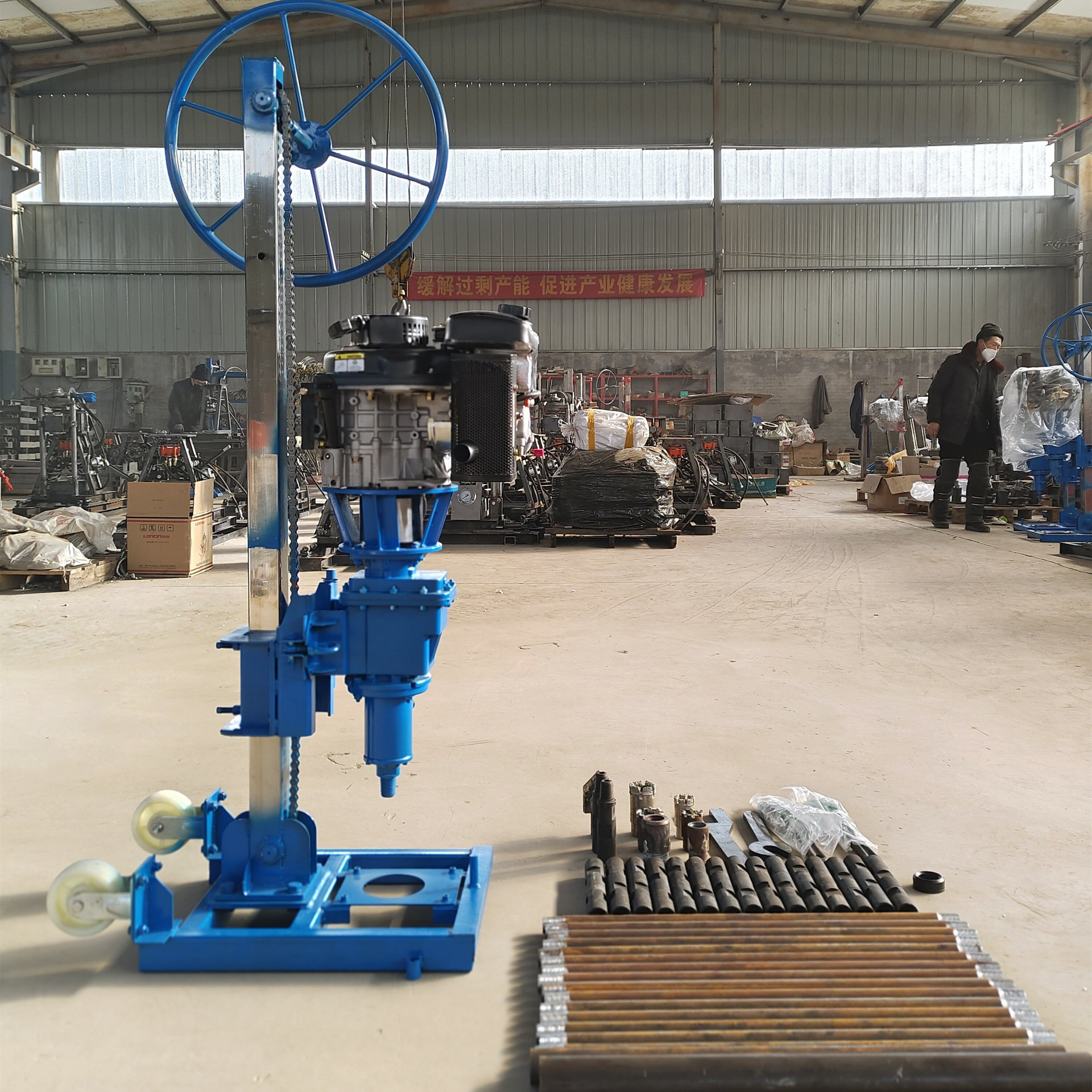

Portable 30m Diamond Core Geotechnical Exploration Impact Sampling Drilling Machine Vertical Backpack Drilling Rig



1. DTD-20 portable soil sampling rig is a portable soil sampling rig that is hand-held by a single person.
2. The effect is comparable to large hydraulic and pneumatic soil sampling RIGS.
3. The power (gasoline) soil sampling rig (soil sampler) simple operation, stable performance, can reduce the labor force of soil sampling personnel, take into account the sampling speed, simple.
4. Drilling applications: Geotechnical engineering investigation; Environmental soil survey; Agricultural soil survey. Groundwater investigation; Geological survey of coastal zone; Wetland environment survey. Tailings pond survey;Archaeological survey: Geophysical and geochemical exploration secondary halo sampling.



Model DTD-20 portable soil sampling rig
Drilling depth (m) 5-30
Hole Diameter (mm) 44-108
Drill pipe diameter (mm) 30
Power(kw) 4.5
HP 6
Displacement 225cc
Speed(r/min) 3600
Rig weight (kg) 60
Drill size(L*W*H)(mm) 800*1000*2000mm
Suitable for the soil Clay, silt, sand, artificial fill. Limestone, sandstone, granite



Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration 0Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration 1Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration 2Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration 3Diamond Bit Vertical Soil Investigation Drilling Rig 30m for Geotechnical Exploration 4

Tag:

Core Drilling Machine

Rig Drilling Machine

Core Drilling Rig
