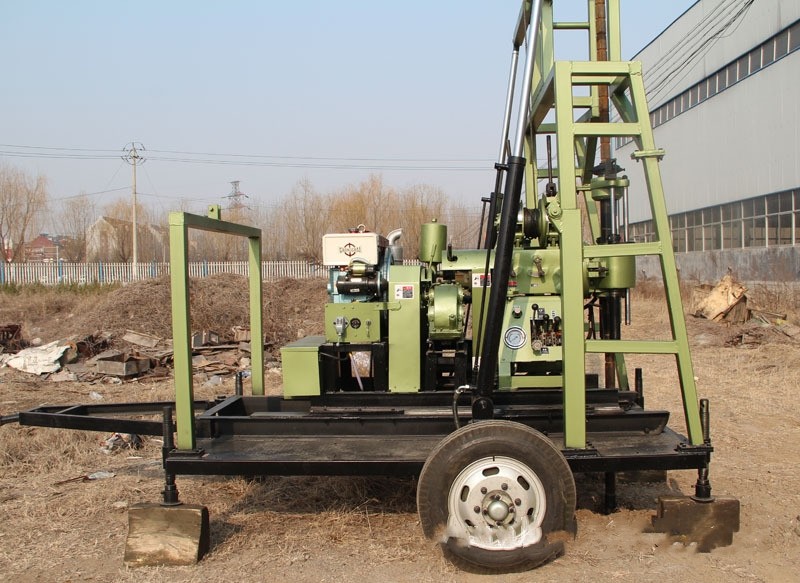

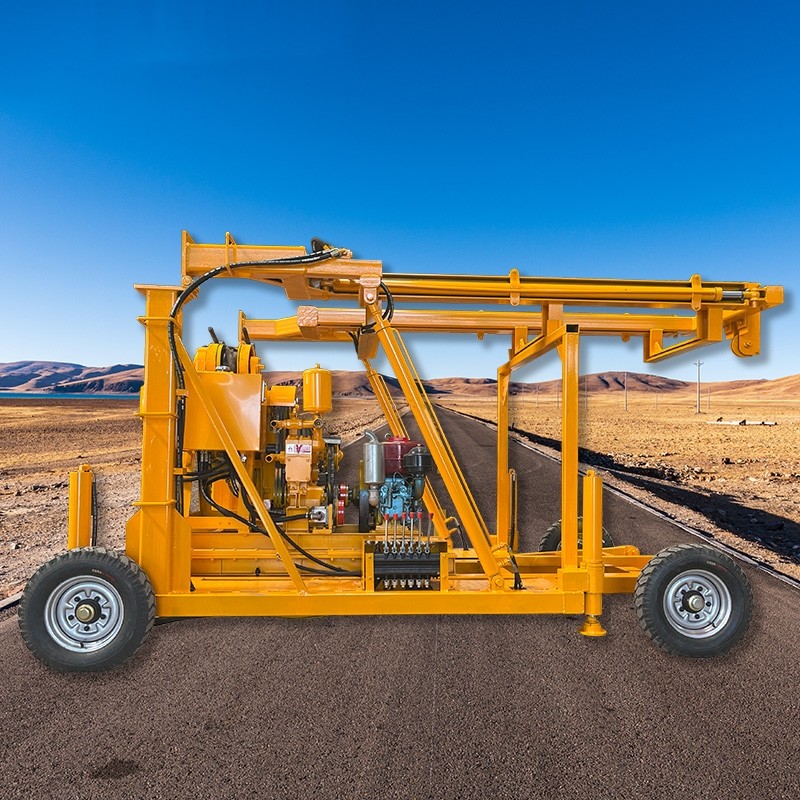

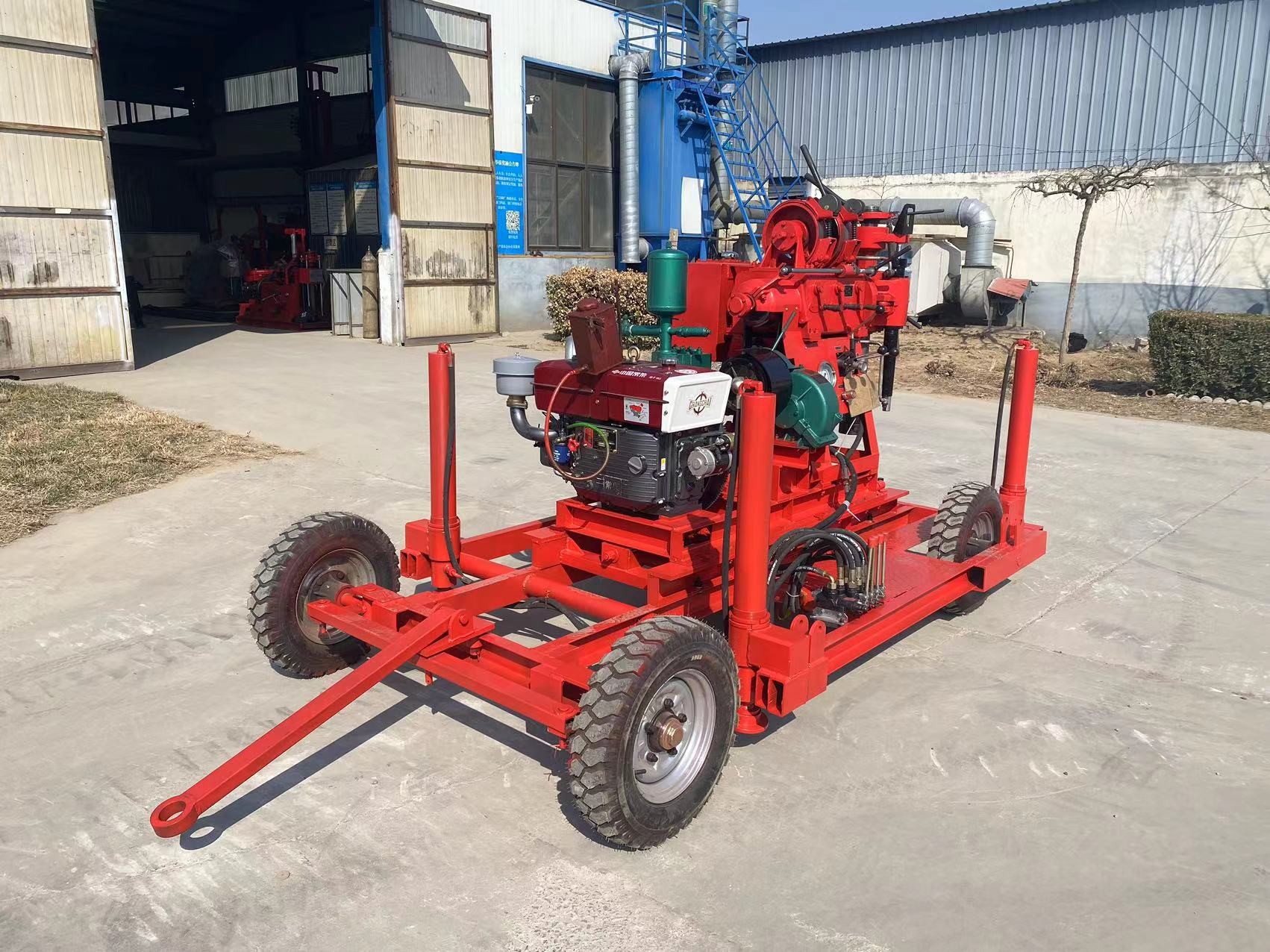

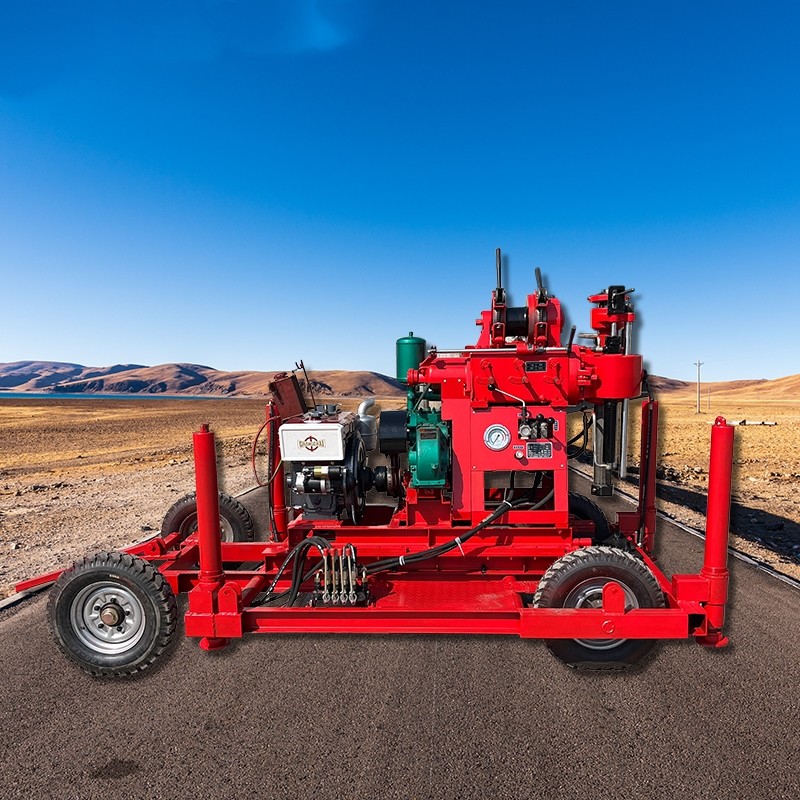

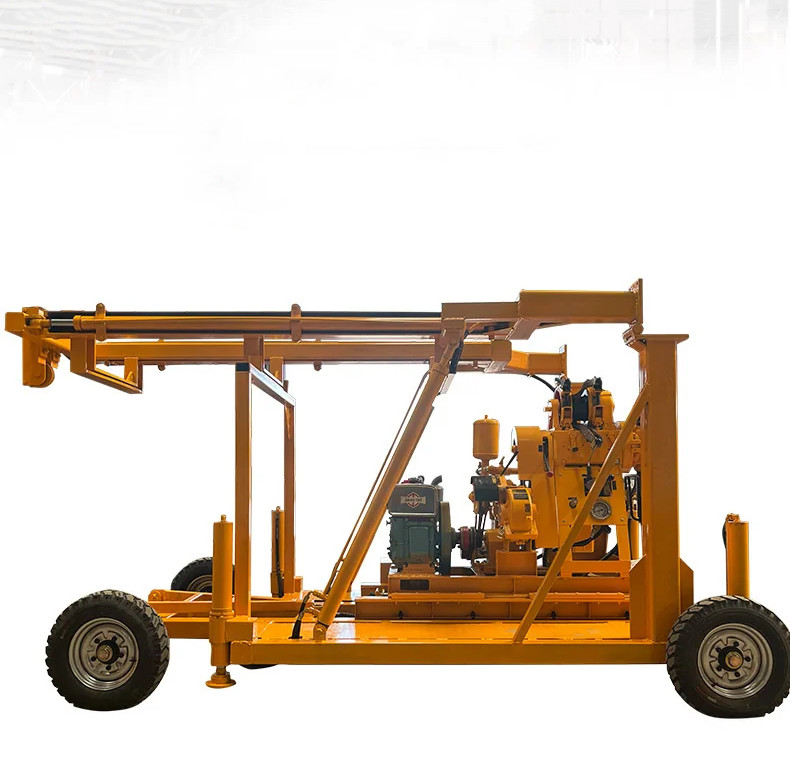

| Basic Parameters |
| Drilling depth |
45-180m |
| Drilling diameter |
300-76mm |
| Drill pipe diameter |
42mm 50mm AW BW AWJ BWJ |
| Gross weight of drilling machine(engine not included) |
500kg |
| Dimension (length ×width × height) |
2050 × 1180× 1420 mm |
| Revolving Plate |
| Rated speed |
60 200 400 610 1100 r/min |
| Maximum torque |
1800N*m |
| Driving travel |
450mm |
| Maximum Cylinder driving force |
20KN |
| Maximum Cylinder lifting force |
30KN |
| Lifter |
| Lifting capacity |
24KN |
| Bobbin line speed (2 layers) |
0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter |
125mm |
| Rope diameter |
11mm |
| Rope capacity |
26m |
| Oil pumps: |
|
| Displacement: |
20ml/r |
| Normal speed |
2500r/min |
| Normal pressure |
20MPa |
| Max pressure |
25MPa |
| Drive motor |
| Type |
Changchai ZS1100 diesel engine |
| Rated power |
12.1KW |
| Rated speed |
2200r/min |
| weight |
155kg |
| Frame |
| Type |
Sliding type(with base frame) |
| Movable travel of drill |
400m |
| Distance between drill and hole-opening |
280mm |
Common Problem:
- ,1. What are our payment methods?
100% prepayment for small sample orders., Prepay 30% deposit for bulk products and pay the remaining 70% before shipment.
2. How to transport products?
Express delivery, air freight, sea freight, train, etc.
3. How to place an order?
Please provide us with the required specifications, models, and quantities, and we will create a PI to confirm the order details. Once we have confirmed everything, we can arrange for payment and finally ship within the time frame we have specified.
4. How to inspect the goods?
Support customers to come to the factory for on-site inspection, support customers to designate third-party companies for inspection, and support video inspection.
5. Can you provide us with the necessary documents for customs clearance?
Yes, of course. We will send you commercial invoices, sales contracts, packing lists, and bills of lading (FOB or CFR, CIF terms).
6. After sales service
The product comes with an English manual and spare parts. We provide 24-hour service through online chat and phone, lifetime free technical support, and overseas service: if you need it, we can dispatch engineers to provide on-site service.
