| Type |

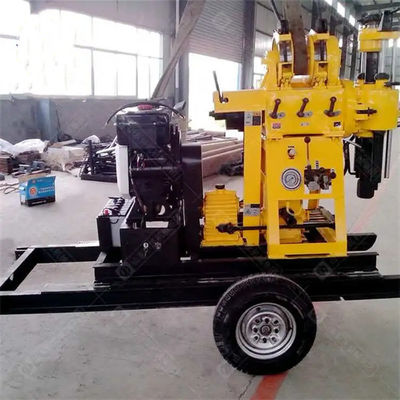

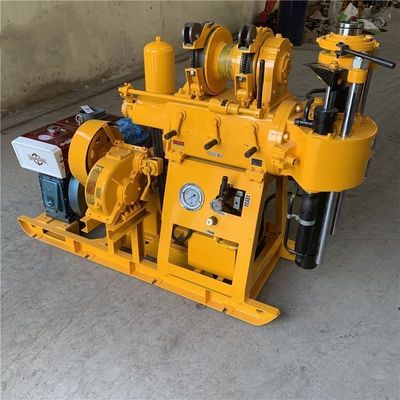

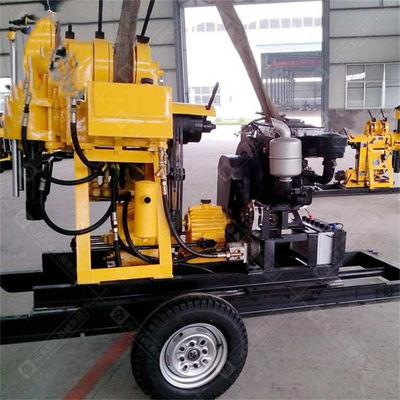

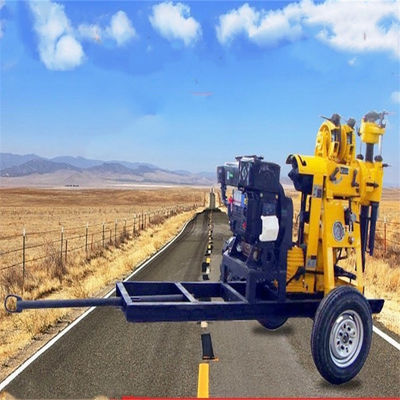

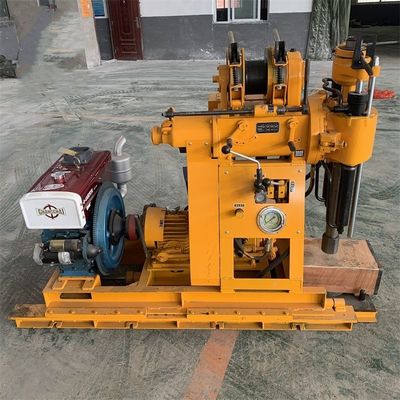

XY-100 Drilling Rig |
| Drilling depth(m) |
100 |
| Drilling rod diameter(mm) |
Φ42 |
| Head angle range |
360° |
| Cylinder stroke(mm) |
300 |
| Spindle speed(r/min) |
1442645901083 |
| Spindle hole diameter(mm) |
Φ54 |
| Spindle output torque(N.M) |
800 |
| Spindle stroke(mm) |
370 |
| Spindle driving force max.(KN) |
23 |
| Spindle lifting power max.(KN) |
30 |
| Lifting speed (m/s) |
0.36�.71.492.9 |
| Single rope lifting power(KN) |
10 |
| Steel wire rope diameter(mm) |
Φ11 |
| Mode of chuck |
Hand lever chuck |
| Weight(power unit excepted)(kg) |
550 |
| Dimensions(LxWxH)(mm) |
1200x650x1300 |
| Diesel engine |
ZS1110(12.1KW) |
| Electrometer |
Y160M-4(11KW) |
Hengshui Aoxing Metal Products Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials for water conservancy, geology, mining, tunnels, subways, construction, surveying, geotechnical and other engineering branches.
The main products include: inflatable or water filled packers, hand operated packers, high-pressure grouting pipes, air pressure hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, cement mixers, high-speed slurry making machines, slurry stations, spraying machines, Lugeon test packers, Lugeon testing equipment, drill bits, drill rods and casings, drilling rigs, water well drilling rigs, survey drilling rigs, hydraulic drilling rigs, air compressors, drilling tools, Grouting pump accessories and drilling rig accessories, etc.
