Home /Products/Soil Investigation Drilling Rig/Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m

Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m

1 Set
MOQ
Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m
Features Gallery Product Description Request A Quote
Features
Specifications
Hydraulic Geotechnical Geological Core Sampling Drilling Rig: XY-200
Motor: Diesel Engine
Drill Hole Diameter: 75-300mm
Drill Hole Depth: 200m
Bit Type: Diamond Bit
Drilling Way: Rotary
Usage: Soil Survey, Water Well, Coal
Highlight:

geological soil investigation rig

,

geological soil investigation drilling rig

,

rotary soil investigation rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XY-200 type
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

1. Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 hydraulic core drilling rig

Model XY-200
Maximum opening diameter 400mm
Maximum borehole depth 200m
Diameter of the end hole 75mm
Borehole dip angle 90-75°
Machine overall size 2.75*0.95*1.60m
Drill pipe diameter 50mm
Weight of drill rig diameter of drill pipe (without power) 760kg
Spindle
Shaft rotation speed 71/142/310/20r/min
Vertical axis stroke 450mm
Windlass
Maximum lifting weight of single rope 2008kb
Drum lifting speed 17/35/75/160 rm/s
Wire rope diameter: 13mm
Wire rope capacity 35mm
Width of sluice 70mm
Mud pump
Type: horizontal single cylinder double action flow:180L/min
Maximum pressure 1.5mpa
Working pressure 0.7mpa
Inlet size 50mm
Outlet pipe diameter 45mm
Power
Diesel oil 22hp
Rated speed 2200r/min
Electric machinery 15kw
Rated speed 1460r/min

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

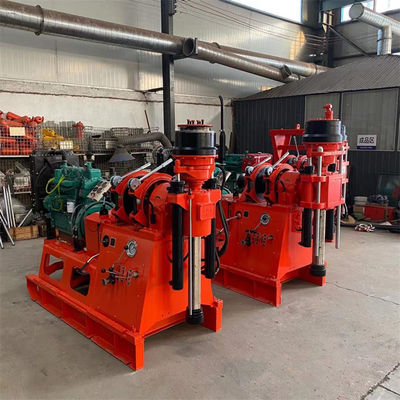

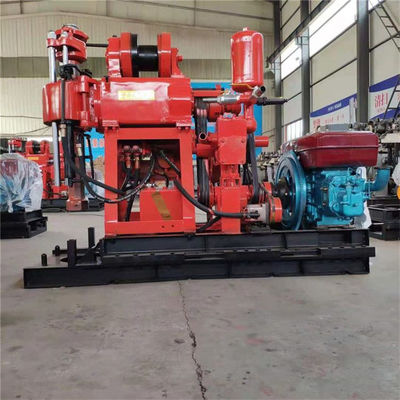

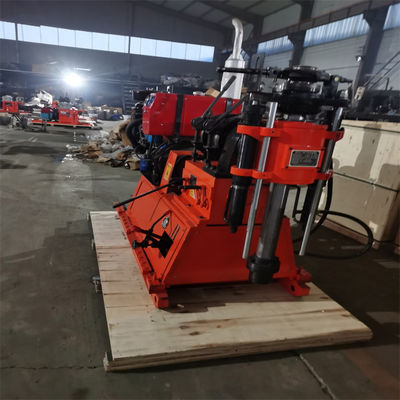

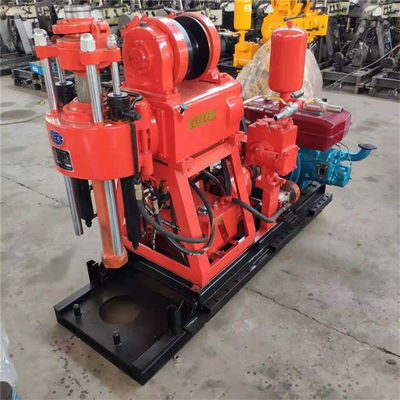

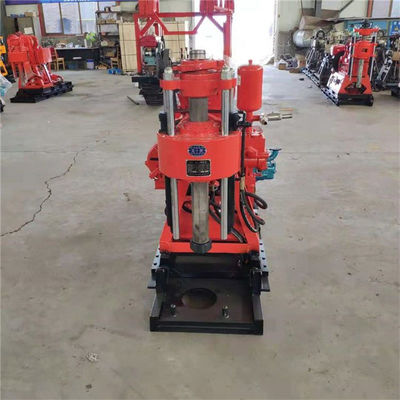

Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m 0Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m 1Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m 2

Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m 3Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m 4Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m 5Multi Use Hydraulic Core Sampling Geological Exploration Drill Rig 200m 6



Tag:

Core Drilling Machine

Rig Drilling Machine

Core Drilling Rig
