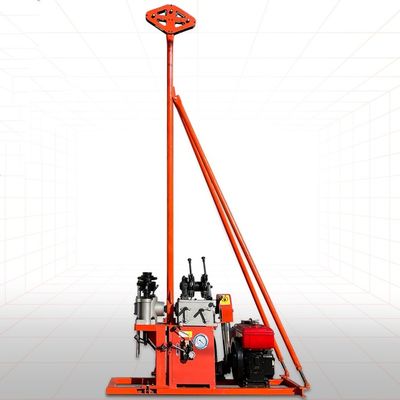

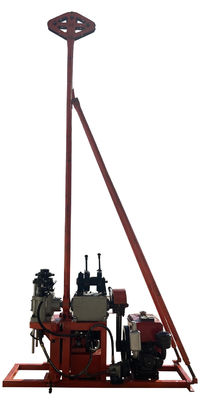

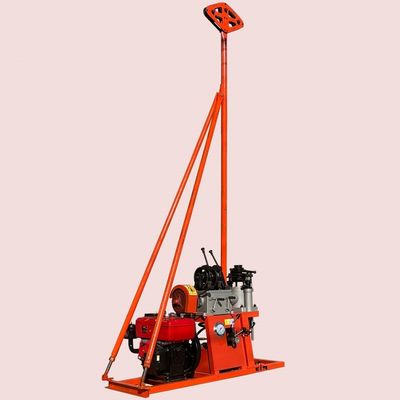

30 type core drilling rig, portable core drilling rig/ Mini Soil Sample Core Drilling Machine

1 Set
MOQ
30 type core drilling rig, portable core drilling rig/ Mini Soil Sample Core Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: XY-30
Condition: New
Drill Hole Diameter: 45-110mm
Drill Hole Depth: 30m
Bit Type: Diamond Bit
Drilling Way: Rotary
Type: Portable
Drill Tower Height: 3.2m
Length Of Drill Pipe: 1m
After-Sales Service Provided: Video Technical Support
Highlight:

mini core drilling rig

,

mini core drilling machine

,

30m core drilling rig

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: 30Type
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

30 type core drilling rig, portable core drilling rig/Mini Soil Sample Core Drilling Machine

1. Compact structure, small dimension, light weight and easy to disassemble and reassemble;
2. High efficiency drilling with hydraulic feeding structure;
3. High mechanization, low labor intensity;
4. Geotechnical investigation for road, building construction; blasting hole drilling;



1. DRILLING CAPABILITY
Drilling Dia(mm) 75 110
Drilling Depth(m) 30 15
Drilling Rod Dia(mm) 42
2. ROTARY TABLE
Speed(rpm) 136 338 578 r/m
Max Torque 350N·m
Feeding Travel 400mm
Max Feeding Force 8KN
Max Lifting Force 10KN
3. Hoist
Bobbin Dia φ90mm
Steel Rope Dia φ8mm
Bobbin Rope Capacity 18m
Max Hoisting(Single Rope) 4KN
Max Hoisting Speed Single Rope (2nd Layer) m/s 0.46 1.15 1.97
4. Oil Pump
Model CBW-F314-ALP Gear Oil Pump
Displacement 14mL/r
Rated Speed 2500r/min
Rated Pressure 20Mpa
Max Pressure 25Mpa
5. Engine Model Power Speed Weight
(1) Electric Motor Y132M-4 7.5KW 1440r/min 81kg
(2) Diesel Engine ChangchaiI R180 5.7KW 2600r/min 72kg
6. Rig Dimension 1510×600×1055mm
7. Weight(Engine not included) 260kg





30 type core drilling rig, portable core drilling rig/ Mini Soil Sample Core Drilling Machine 0

30 type core drilling rig, portable core drilling rig/ Mini Soil Sample Core Drilling Machine 130 type core drilling rig, portable core drilling rig/ Mini Soil Sample Core Drilling Machine 2

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.



The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed grouting machines, mud stations, sprayers, Lurong test packers and Lurong test equipment, diamond drill bits, hole extenders, geological drill rods and casings, exploration drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.



Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.



We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
