Features

Specifications

Model NO: BQ/NQ/HQ/PQ

Type: Single Or Double Packer

Specification: BQ/NQ/HQ/PQ

Purpose: Lugeon Test

Origin: China

Highlight:

Manual Pressure Test Pump

Hand Pressure Test Pump

Basic Infomation

Place of Origin: China

Brand Name: Aoxing

Certification: ISO9001

Model Number: AQ、BQ、NQ、HQ、PQ、

Payment & Shipping Terms

Packaging Details: in Plywood Case

Gallery

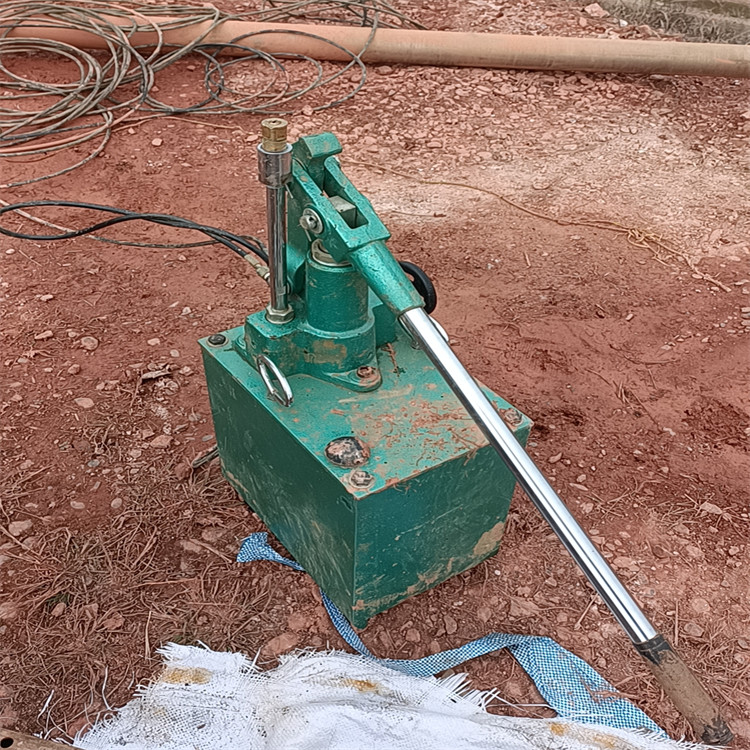

Hand Pump / Manual Pressure Test Pump Long Life

Product Description

Hand Pump/Manual Pressure Test Pump

Product Description

The Lugeon test, sometimes call also Packer test, is an in-situ testing method widely used to estimate the avarage hydraulic conductivity of rock mass. It is indeed In situ test of formation permeability performed by measuring the volume of water taken in a section of test hole when the interval is pressurized at given pressure (10 bars -150 psi). It is used primarily in variably permeable formations under evaluation of fracturating .

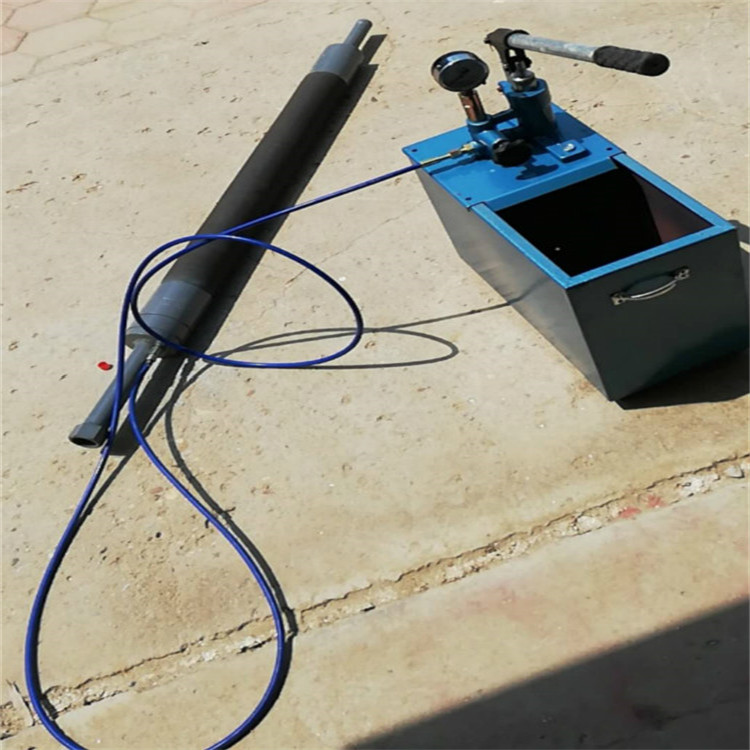

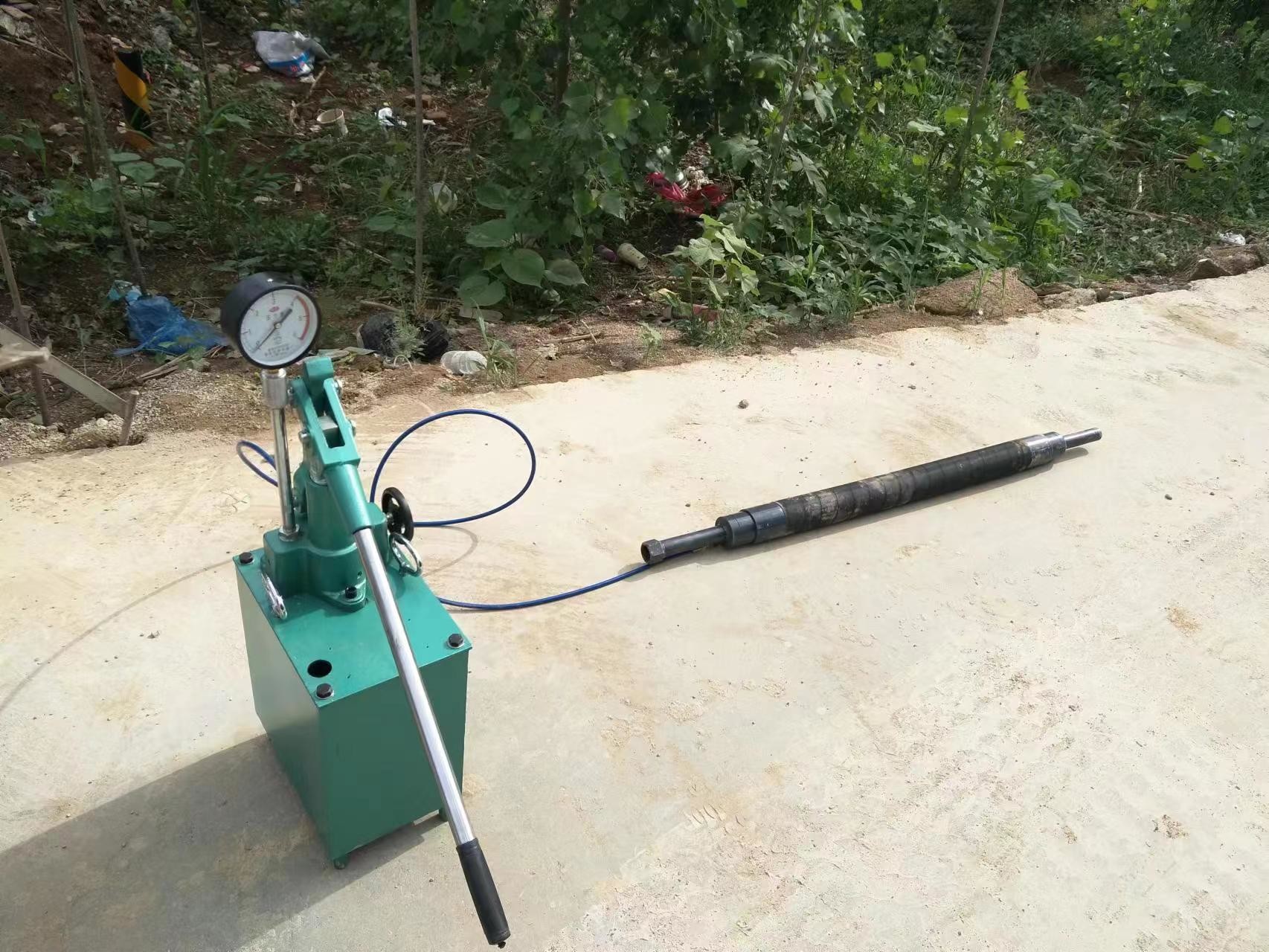

Deployment and operation is simple. The wireline permeability packer assemble is deployed down the drill rods until the bit seating sub lands on the drill rod bit. With the top seal assembly (tighthead) tightened, the packers are inflated and water is then pumped through the tighthead down the rods, through the packers and into the formation.

Model	OD (mm)	Expansion of scope (mm)	Hole dia. (mm)	Working pressure≤ (Mpa)	Compressive strength (Mpa)
Model	OD (mm)	Expansion of scope (mm)	Hole dia. (mm)	Working pressure≤ (Mpa)	Test pressure	Burst pressure
φ32-2	50±2.0	90 8-4	60	6	12	24
φ38-2	55±2.0	95 8-4	65	5	10	20
φ38-4	60±2.0	95 8-4	75	12	18	24
φ45-2	63±2.0	100 8-4	75	4	8	16
φ45-4	69±2.0	100 8-4	75	16	24	32
φ51-2	69±2.0	110 8-4	90	4	8	16
φ51-4	75±2.0	110 8-4	90	16	24	32
φ64-2	84±2.0	120 8-4	100	3	6	12
φ64-4	90±2.0	120 8-4	100	8	12	16
φ76-2	94±2.0	130 8-4	110	3	6	12
φ76-4	99±2.0	130 8-5	110	8	12	16
φ89-2	109±2.0	140 8-5	130	3	6	12
φ102-2	122±2.0	160 8-5	150	3	6	12

Hand Pump / Manual Pressure Test Pump Long Life 0

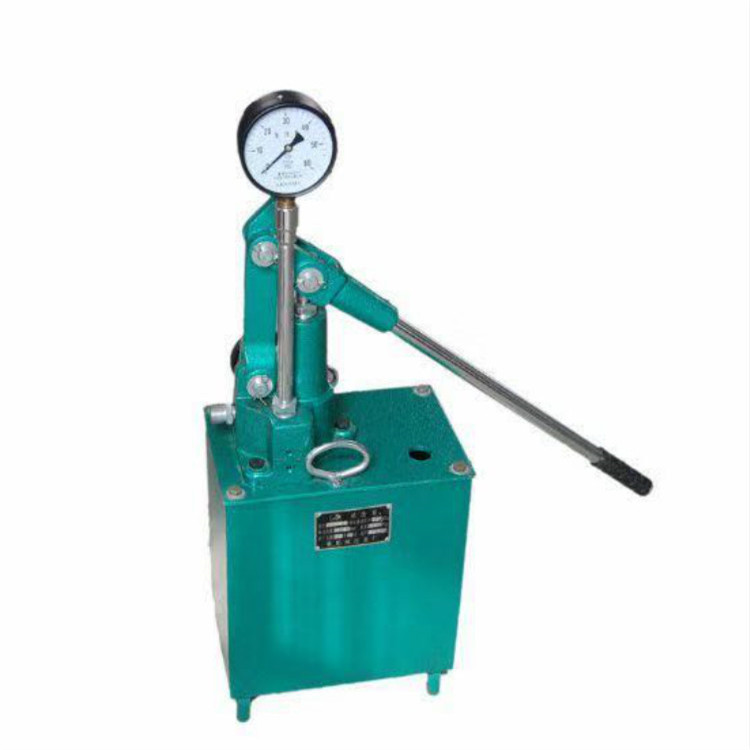

S-SYManual Pressure Testing Pump Series:

Main Technical Parameters:

Model	Pressure(Mpa)	Flow(ML/second)	Overall Weight(Kg)	External Dimensions(cm)
S-SY4.0	4	52.9	25	700300200
S-SY6.3	6.3	31.9	25	700300200
S-SY10	10	20.9	25	700300200
S-SY16	16	13.9	25	700300200
S-SY25	25	7.6	25	700300200

Hand Pump / Manual Pressure Test Pump Long Life 1

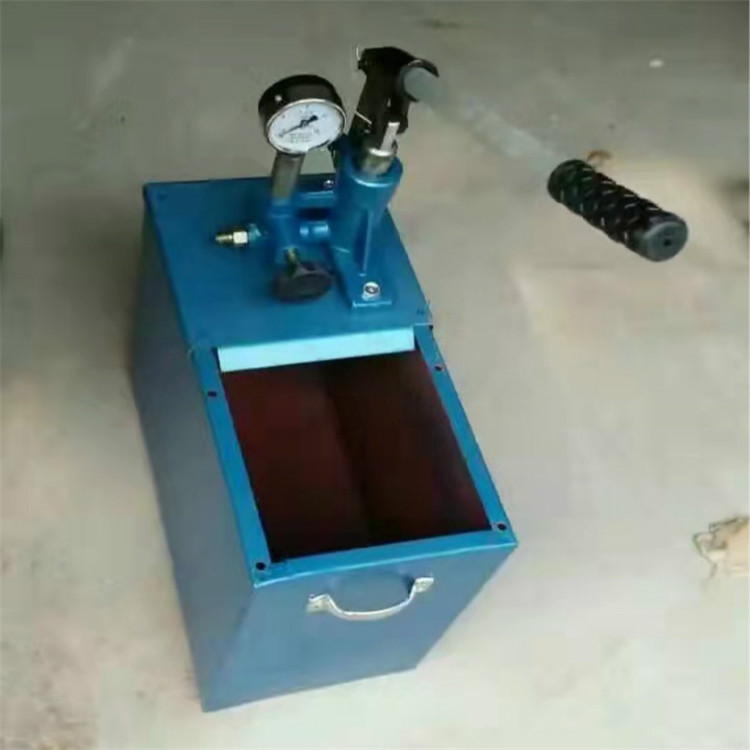

SB Manual Pressure Testing Pump Series:

Main Technical Parameters:

Model	Pressure(Mpa)	Flow (ML/second)	Overall Weight (Kg)	External Dimensions(cm)
SB-1.6	1.6	32	6	400170300
SB-2.5	2.5	32	6	400170300
SB-4	4	32	6	400170300
SB-6.3	6.3	32	7.5	460210340
SB-10	10	32	7.5	460210340
SB-16	16	25	7.5	460210340

Hand Pump / Manual Pressure Test Pump Long Life 2

Hand Pump / Manual Pressure Test Pump Long Life 3
