Name: Ltk48 Double Tube Core Barrel Assembly Double Tube Core Barrels
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: LRK48
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: LTK48

Length: 1.5m And 3m

Standard: International Standard

Specification: DCDMA, CDDA

Origin: China

Usage: Mining Exploration

Type: Core Drill

Customization: Available

Highlight:

double tube core barrels

mining core barrels

mining double tube core barrel

Basic Infomation

Place of Origin: China

Brand Name: Aoxing

Certification: ISO9001

Model Number: LRK48

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 100 Sets/Month

Gallery

Ltk48 Double Tube Core Barrel Assembly Double Tube Core Barrels

Product Description

Ltk48 Double Tube Core Barrel Assembly Double Tube Core Barrels

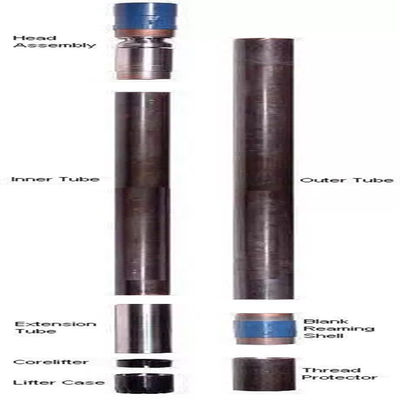

LTK48 Double Tube Core Barrel Components including: Double Tube Core Barrel Head, Inner Tube, Core Lifter, Core Lifter Case, Outer Tube and Thread Protector.

The LTK series core barrels system is a thinner wall core barrel than T2 series. They offer a cost effective, high production, which is designed for optimum production and core recovery in medium to extra hard rock formations. Available sizes 48 and 60mm.

We had been making great efforts to develop various drilling tools to meet the different needs for our customers. The drilling tools including drilling rig, PDC drill bit, TSP drill bit, diamond core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshots, drill rods, casing tubes, SPT Testing equipment and other drilling tools.

LTK Series Double Tube Core Barrels
Size	Hole (mm)	Core(mm)	Head Thread
LTK48	47.6	35.2	As per need
LTK60	59.8	44	AS per need

Core barrel size are available:

Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, BQU, NQU, HQU, BTW, NTW, HTW, Geobor S 146, CSK146, SK6L

T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

TT series: TT 46, TT 56

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146

B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

MLC series: BMLC, NMLC, HMLC, 3C, 4C, 6C

LTK series: LTK48, LTK60

WF series: HWF, 412F, PWF, SWF, UWF, ZWF

WT series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)

WG series: EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube)

WM series: EWM, AWM, BWM, NWM, HWM

Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, TBW, M101, Denison

Ltk48 Double Tube Core Barrel Assembly Double Tube Core Barrels 0
