Name: Plastic Liner Tube for Mazier 86 101 116 131 Triple Tube Core Barrel
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: T2-76 T2-86 T2-101
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: T2, T6 Series

Length: 1.5m 3m

Origin: China

Usage: Core Drilling, Mining Exploration

Specification: DCDMA, CDDA

Size: T2, T6 Series

Highlight:

Core Barrel Plastic Liner Tube

Triple Tube Core Barrel Liner Tube

Mazier 86 Core Barrel Liner Tube

Basic Infomation

Place of Origin: China

Brand Name: Aoxing

Certification: ISO9001

Model Number: T2-76 T2-86 T2-101

Payment & Shipping Terms

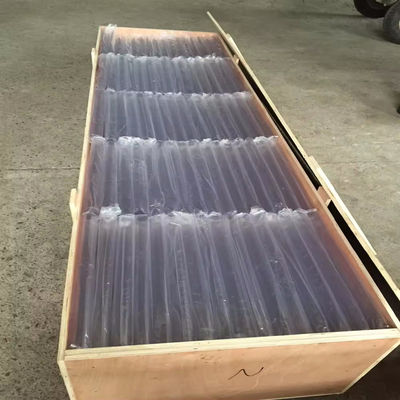

Packaging Details: in Plywood Case

Supply Ability: 50 Sets/Month

Gallery

Plastic Liner Tube for Mazier 86 101 116 131 Triple Tube Core Barrel

Product Description

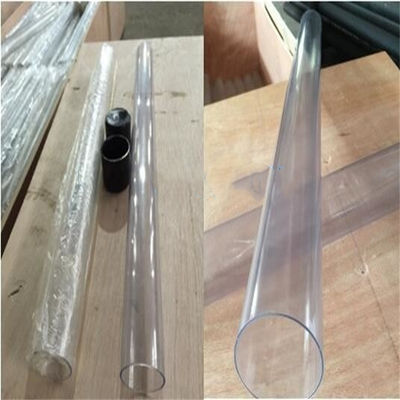

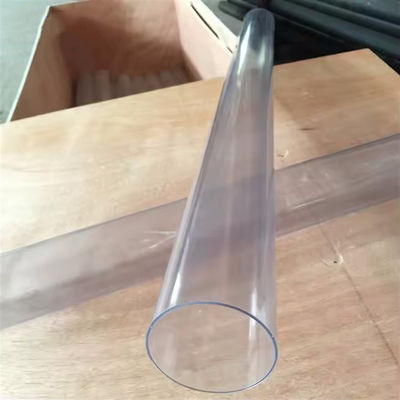

Coreliners are rigid, transparent PVC tubes with a wall thickness of approximately 1 mm, that fit snugly inside the core barrel inner tube.

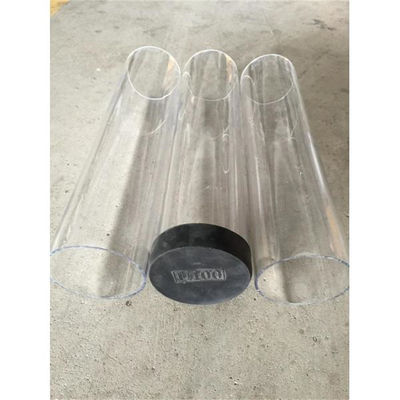

Coreliners can be supplied to fit most types and sizes of core barrel - metric, DCDMA and wireline. It is normally supplied in standard 5-10ft lengths, with or without plastic end caps.

To use the coreliner system a modified Core Bit and Core lifter is required with reduced internal diamete. This is to ensure that there is adequate clearance for the core to fit into the plastic coreliner tube. Such "coreliner set" bits and core lifters are available on request.

Core Barrel Size:

Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76

T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

TT series: TT 46, TT 56

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146

B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

MLC series: BMLC. NMLC, HMLC

LTK series: LTK48, LTK60

WF series: HWF, PWF, SWF, UWF, ZWF

WT series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)

WG series: EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube)

WM series: EWM, AWM, BWM, NWM, HWM

Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, M101
