Home /Products/Core Barrels/Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube

Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube

1 Set
MOQ
Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: T2, T6 Series
Length: 1.5m 3m
Origin: China
Usage: Core Drilling, Mining Exploration
Specification: DCDMA, CDDA
Size: T2, T6 Series
Highlight:

mining core barrels

,

mining diamond core barrel

,

mining exploration core barrels
Basic Infomation
Place of Origin: China
Brand Name: Aoxing
Certification: ISO9001
Model Number: T2-76 T2-86 T2-101
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 50 Sets/Month
Product Description

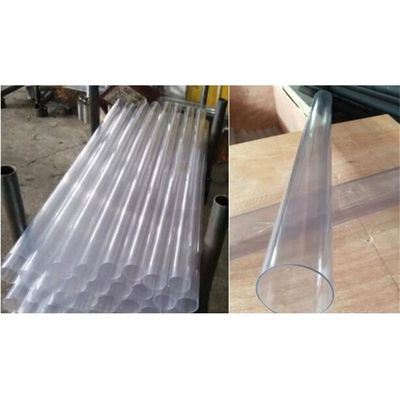

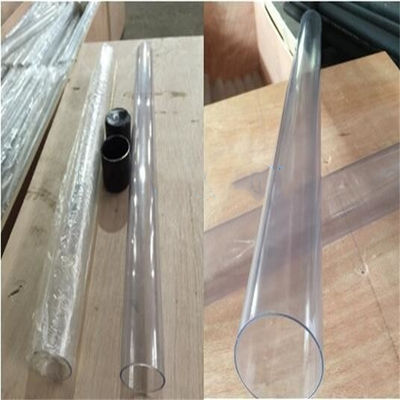

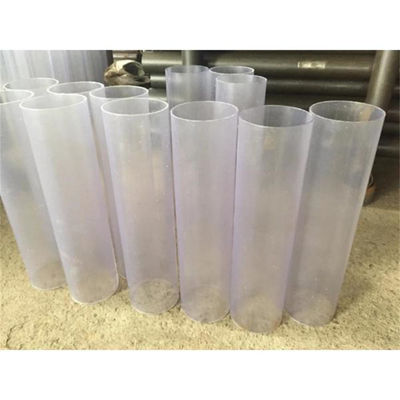

Coreliners are rigid, transparent PVC tubes with a wall thickness of approximately 1 mm, that fit snugly inside the core barrel inner tube.

Coreliners can be supplied to fit most types and sizes of core barrel - metric, DCDMA and wireline. It is normally supplied in standard 5-10ft lengths, with or without plastic end caps.

To use the coreliner system a modified Core Bit and Core lifter is required with reduced internal diamete. This is to ensure that there is adequate clearance for the core to fit into the plastic coreliner tube. Such "coreliner set" bits and core lifters are available on request.





Core Barrel Size:
Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series: BMLC. NMLC, HMLC
LTK series: LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, M101



Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube 0Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube 1Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube 2Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube 3Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube 4Bq3 Nq3 Hq3 Pq3 Plastic Coreliners/Core Barrel PVC Inner Tube 5

Tag:

Wireline Core Barrels

Drilling Core Barrel

Tube Core Barrel
