Name: B36 B46 B56 B66 B76 B86 B101 B116 B131 B146 Single Tube Core Barrels
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: B36 B46 B56 B66 B76 B86 B101 B116 B131 B146
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: B36 B46 B56 B66 B76 B86 B101 B116 B131 B146

Specification: 0.5m 0.75m 1.5m 3m

Origin: China

Usage: Core Drilling, Mining Exploration

Material: Carbon Steel

Size: B Series

Highlight:

mining core barrels

mining diamond core barrel

mining exploration core barrels

Basic Infomation

Place of Origin: China

Brand Name: Aoxing

Certification: ISO9001

Model Number: B36 B46 B56 B66 B76 B86 B101 B116 B131 B146

Payment & Shipping Terms

Packaging Details: in Plywood Case

Supply Ability: 50 Sets/Month

Gallery

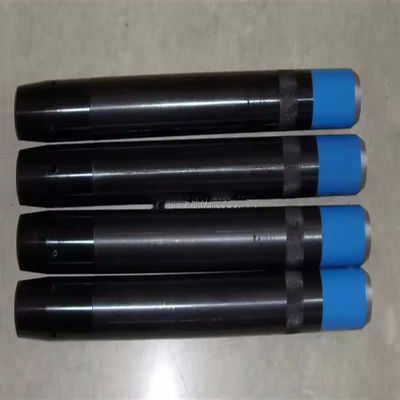

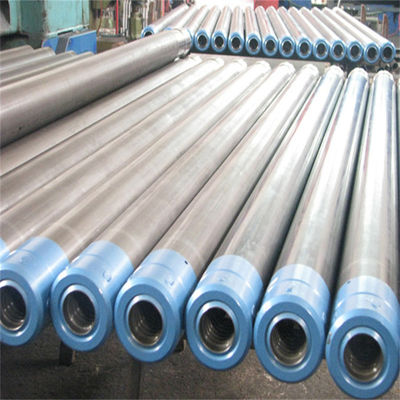

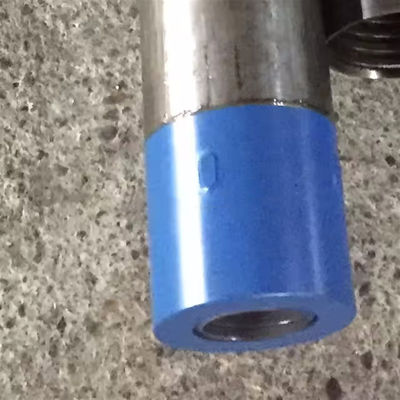

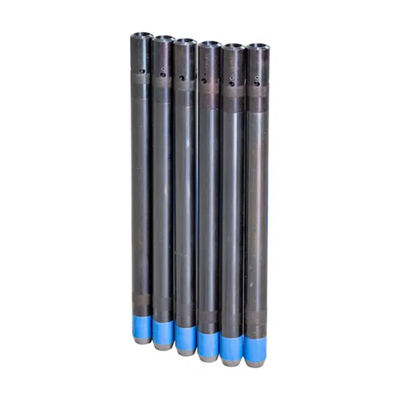

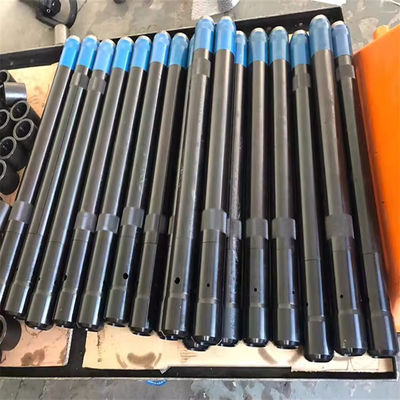

B36 B46 B56 B66 B76 B86 B101 B116 B131 B146 Single Tube Core Barrels

Product Description

B36 B46 B56 B66 B76 B86 B101 B116 B131 B146 Single Tube Core Barrels

B Series are single tube core barrels, The thin kerf design makes this single tube core barrel ideal for drilling concrete or for drilling in soft formations where no core examination is required.Available diameters 36-146mm.

The core barrel is fully extendable. Several core tubes can be connected together to extend the barrel to the required length. For drilling through difficult overburden, a full range of metric casing tubes are available to prevent the borehole from caving in.

The core bit is not supplied with the barrel assembly, but should be ordered separately. Tungsten carbide and diamond core bits are available to suit all drilling applications.

B Series Single Tube Core Barrels
B-36	36	22	As per need
B-46	46	32	As per need
B-56	56	42	As per need
B-66	66	52	As per need
B-76	76	62	As per need
B-86	86	72	As per need
B-101	101	86.6	As per need
B-116	116	101.7	As per need
B-131	131	116.7	As per need
B-146	146	131.7	As per need

Core Barrel Size:

Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, BQU, NQU, HQU, BTW, NTW, HTW, Geobor S 146

T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

TT series: TT 46, TT 56

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146

B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

MLC series: BMLC, NMLC, HMLC, 3C, 4C, 6C

LTK series: LTK48, LTK60

WF series: HWF, 412F, PWF, SWF, UWF, ZWF

WT series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)

WG series: EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube)

WM series: EWM, AWM, BWM, NWM, HWM

Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, TBW, M101, Denison
