T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations

1 Piece
MOQ
T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: T256 66 76 86 101
Type: Core Drill Bit
Material: Diamond
Usage: Exploration, Mining Drill
Matrix Height: 6mm-12mm
Shape: Round
Manufacturing Arts: Sinter
Kind: Diamond Drill
Specification: DCDMA, CDDA, BS
Origin: China
Highlight:

T86 Tc Core Bits

,

Unconsolidated Formations Core Bits

,

T2 86 Core Bits

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: T256 66 76 86 101
Payment & Shipping Terms
Packaging Details: in Plywood Case
Product Description

T2 86, T86 Tc Core Bit for Drilling Softer Unconsolidated Formations

Product Description

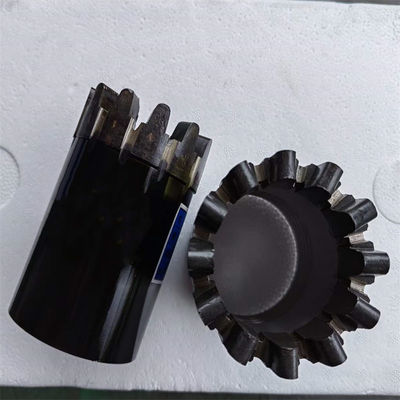

TC (Tungsten Carbide) Core Bits possess no as hard cutting media as diamond so have a limited range of application; they are a very cost effective choice for drilling softer unconsolidated formations and is applied primarily in geotechnical soil investigation or for core drilling in overburden layers that are composed mainly of clay, sand, gypsum or soft shale.  TC Core Bit's crown is composed of a tough, wear resistant matrix body with tungsten carbide wear pads gauge protection.

Sizes Available:
Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series: NMLC, HMLC, 3C, 4C, 6C, 8C
LTK series LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H
Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard: 59mm, 76mm, 93mm, 112mm, 132mm, 152 mm




T Series Bit





No. Std. Item OD*ID(mm) Crown Height SN.
1 T2-46 diamond bit 46.0*31.7 C6 K3 K5 K7 K9
2 T2-56 diamond bit 56.0*41.7 C6 K3 K5 K7 K9
3 T2-66 diamond bit 66.0*51.7 C6 K3 K5 K7 K9
4 T2-76 diamond bit 76.0*61.7 C6 K3 K5 K7 K9
5 T2-86 diamond bit 86.0*71.7 C6 K3 K5 K7 K9
6 T2-101 diamond bit 101.0*83.7 C6 K3 K5 K7 K9
7 T6-76 diamond bit 76.0*57.0 C6 C9 K3 K5 K7 K9
8 T6-86 diamond bit 86.0*67.0 C6 C9 K3 K5 K7 K9
9 T6-101 diamond bit 101.0*79.0 C6 C9 K3 K5 K7 K9
10 T6-116 diamond bit 116.0*93.0 C6 C9 K3 K5 K7 K9
11 T6-131 diamond bit 131.0*108.0 C6 C9 K3 K5 K7 K9
12 T6-146 diamond bit 146.0*123.0 C6 C9 K3 K5 K7 K9
13 T6S-76 diamond bit 76.3*47.7 C6 C9 K3 K5 K7 K9
14* T6S-86 diamond bit 86.3*57.7 C6 C9 K3 K5 K7 K9
15 T6S-101 diamond bit 101.3*71.7 C6 C9 K3 K5 K7 K9
16 T6S-116 diamond bit 116.3*85.7 C6 C9 K3 K5 K7 K9
17 T6S-131 diamond bit 131.3*100.7 C6 C9 K3 K5 K7 K9
18 T36 diamond bit 36.0*21.7 C6 K3 K5 K7 K9
19 TT46 diamond bit 46.0*35.2 C6 K3 K5 K7 K9
20 TT56 diamond bit 56.0*45.2 C6 K3 K5 K7 K9



T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations 0T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations 1T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations 2T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations 3T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations 4T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations 5
