Features

Specifications

Model NO.: T256 66 76 86 101

Type: Core Drill Bit

Material: Diamond

Usage: Exploration, Mining Drill

Matrix Height: 6mm-12mm

Shape: Round

Manufacturing Arts: Sinter

Kind: Diamond Drill

Specification: DCDMA, CDDA, BS

Origin: China

Highlight:

T6s Drill Core Bits

Drill Core Bits 56mm

Drill Core Bits 146mm

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: T256 66 76 86 101

Payment & Shipping Terms

Packaging Details: in Plywood Case

Gallery

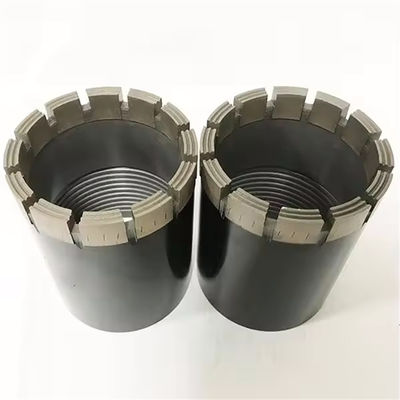

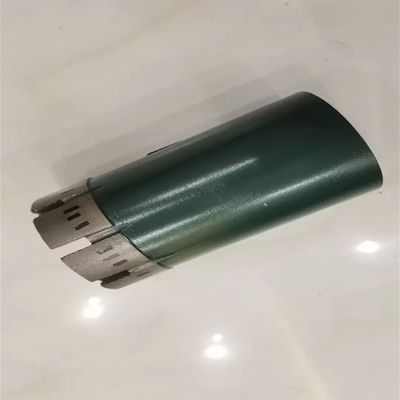

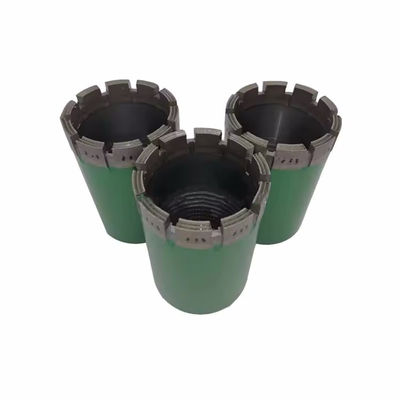

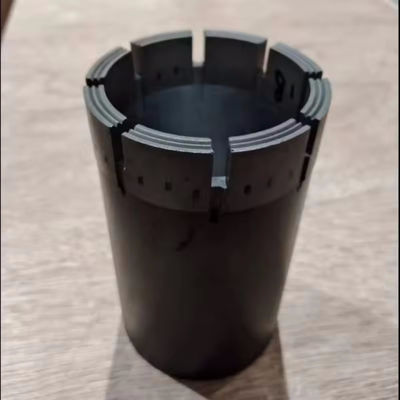

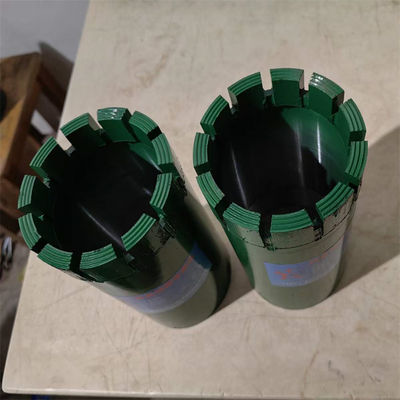

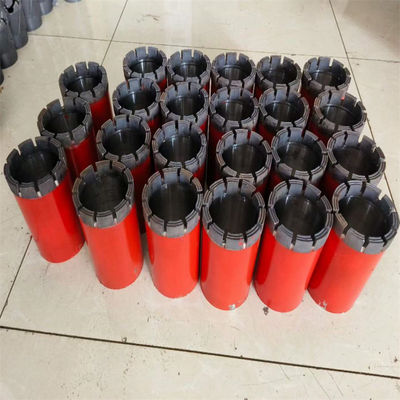

T2 T6 T6s Drill Core Bits 56mm 66mm 76mm 86mm 101mm 116mm 131mm 146mm

Product Description

T2 T6 T6s (56, 66, 76, 86, 101, 116, 131, 146mm) Drill Bits

T2 series core bits are used for surface exploration with the T2 series core barrel.

The main crown technical parameters of impregnated diamond core bits include diamond grade,size,
concentrarion and quality,matrix hardness and crown shapes. The users can make rational selections according to the formations to be drilled.

To avoid excessive bit wear, tungsten carbide inserts are used on both sides on the waterway, and gage stones are a bit larger.

T Series Bit

No.	Std.	Item	OD*ID(mm)	Crown Height	SN.
1	T2-46	diamond bit	46.0*31.7	C6	K3 K5 K7 K9
2	T2-56	diamond bit	56.0*41.7	C6	K3 K5 K7 K9
3	T2-66	diamond bit	66.0*51.7	C6	K3 K5 K7 K9
4	T2-76	diamond bit	76.0*61.7	C6	K3 K5 K7 K9
5	T2-86	diamond bit	86.0*71.7	C6	K3 K5 K7 K9
6	T2-101	diamond bit	101.0*83.7	C6	K3 K5 K7 K9
7	T6-76	diamond bit	76.0*57.0	C6 C9	K3 K5 K7 K9
8	T6-86	diamond bit	86.0*67.0	C6 C9	K3 K5 K7 K9
9	T6-101	diamond bit	101.0*79.0	C6 C9	K3 K5 K7 K9
10	T6-116	diamond bit	116.0*93.0	C6 C9	K3 K5 K7 K9
11	T6-131	diamond bit	131.0*108.0	C6 C9	K3 K5 K7 K9
12	T6-146	diamond bit	146.0*123.0	C6 C9	K3 K5 K7 K9
13	T6S-76	diamond bit	76.3*47.7	C6 C9	K3 K5 K7 K9
14*	T6S-86	diamond bit	86.3*57.7	C6 C9	K3 K5 K7 K9
15	T6S-101	diamond bit	101.3*71.7	C6 C9	K3 K5 K7 K9
16	T6S-116	diamond bit	116.3*85.7	C6 C9	K3 K5 K7 K9
17	T6S-131	diamond bit	131.3*100.7	C6 C9	K3 K5 K7 K9
18	T36	diamond bit	36.0*21.7	C6	K3 K5 K7 K9
19	TT46	diamond bit	46.0*35.2	C6	K3 K5 K7 K9
20	TT56	diamond bit	56.0*45.2	C6	K3 K5 K7 K9

T2 T6 T6s Drill Core Bits 56mm 66mm 76mm 86mm 101mm 116mm 131mm 146mm 0
