Name: Mining Full Diamond Core Drilling Rig For With Hq Nq Bq Pq Core Lifters
Brand: Hengshui Aoxing Geological Equipment Co., Ltd
SKU: QYD-800
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO: QYD800

Condition: New

Drill Hole Diameter: Bq,Nq,Hq

Drill Hole Depth: 1000M

Mobility: Crawler Mounted Core Drilling Rig

Type: Surface Mining Core Drilling Rig

Drilling Angle: 0-90

Usage: Geotechnical, Mining Exploration

Origin: China

Highlight:

Full Diamond Core Drilling Rig

Mining Diamond Core Drilling Rig

Pq Core Lifters Diamond Drilling Rig

Basic Infomation

Place of Origin: Hebei,China

Brand Name: Aoxing

Certification: ISO9001

Model Number: QYD-800

Payment & Shipping Terms

Packaging Details: in New Strong Plywood Case

Supply Ability: 30 Sets/Month

Gallery

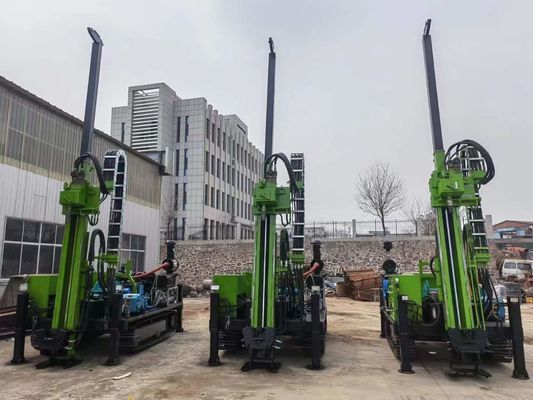

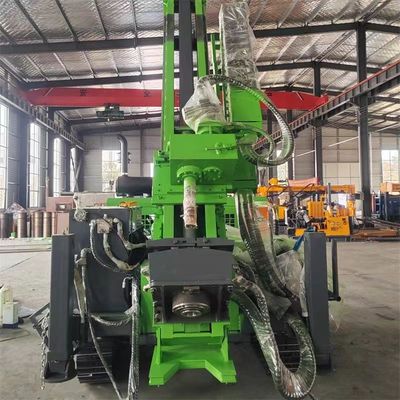

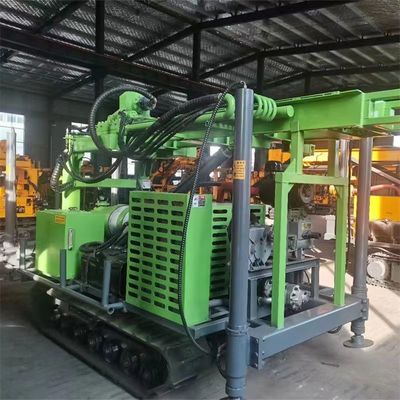

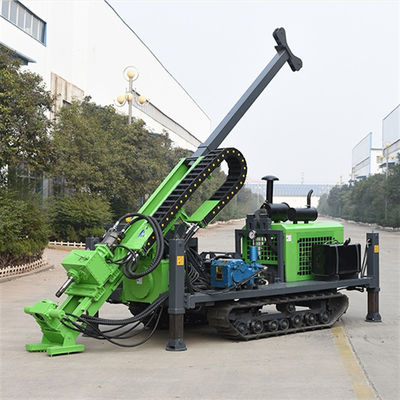

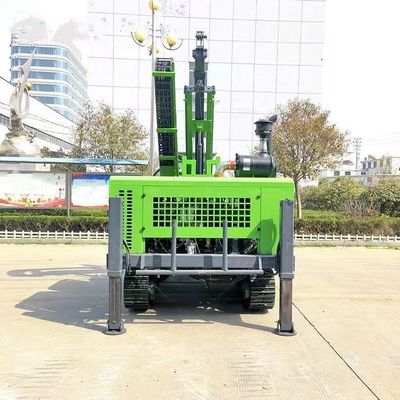

Mining Full Diamond Core Drilling Rig For With Hq Nq Bq Pq Core Lifters

Product Description

Mining Full Diamond Core Drilling Rig Equipment For With Hq Nq Bq Pq Core Lifters

Product Description:

Full hydraulic driving, travelling with crawlers itself. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 45 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.

Full hydraulic core exploration drilling rig uses and advantages

1. This full hydraulic core exploration drilling rig using for prospecting, gold ore, iron ore, coal, lithium ore, rubidium ore, stone ore, etc. 2. It is easy to install, and the rope coring process does not need to lift the drill pipe. The winch is connected to the salvage device, and the coring efficiency is high.The traditional vertical shaft control machine drills and lifts the drill pipe, which has low efficiency and troublesome disassembly and assembly of the tower, which requires large equipment to be lifted and transported, and the cost is high. 3. Thin-wall drilling tools, the core diameter is 56, and the wall of the drill bit is thin. Traditional drilling rig Core diameter 48 bit wall thickness.

Model	YQD-400	YQD-600	YQD-800	YQD-1000
	180-400-500	200-600-650	400-800-1000	500-1000-1100
Rated pressure(MPA)	21	21	25	28
Rated Flow(L/min)	168	192	260	300
Heat Dissipation Mode
Engine Brand	Yuchai	Yuchai	Yuchai	Cummins
Rated power/speed	78kW/ 2400r/min	92kW/ 2400r/min	92kW/ 2400r/min	154kW/ 2400r/min
	0-90	45-90	45-90	45-90
Lifting Force(T)	12	16	24	30
Feed Force(T)	6	8	12	15
	30-90(L/min)	30-90(L/min)	90-180(L/min)	90-180(L/min)
Hydraulic Mud pump power	4-7(MPA)	4-7(MPA)	4-7(MPA)	4-7(MPA)
Dimension(mm)	400019001800	400020001800	550021002000	600022002400
Weight	4.3T	4.5/5.5T	6.5T	7.5T
