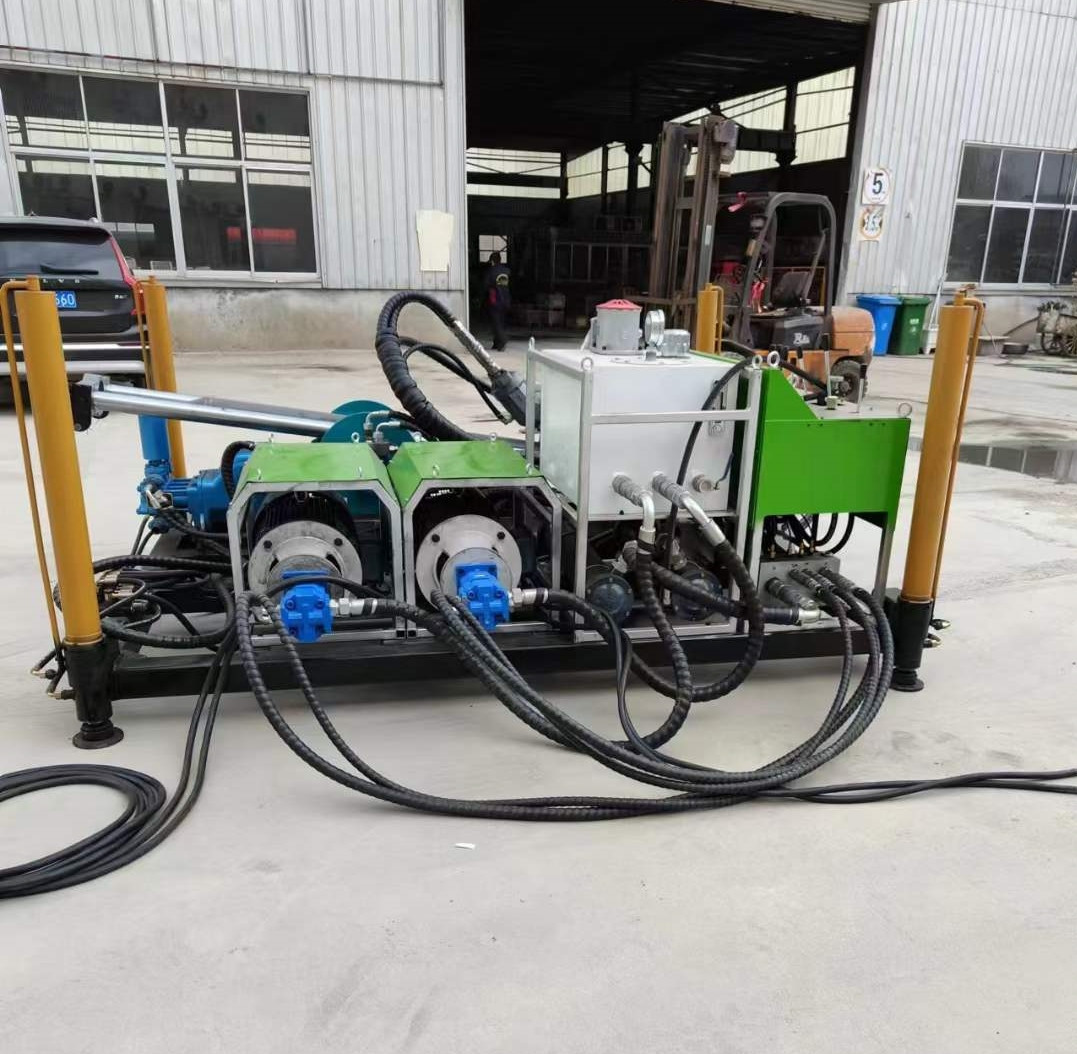

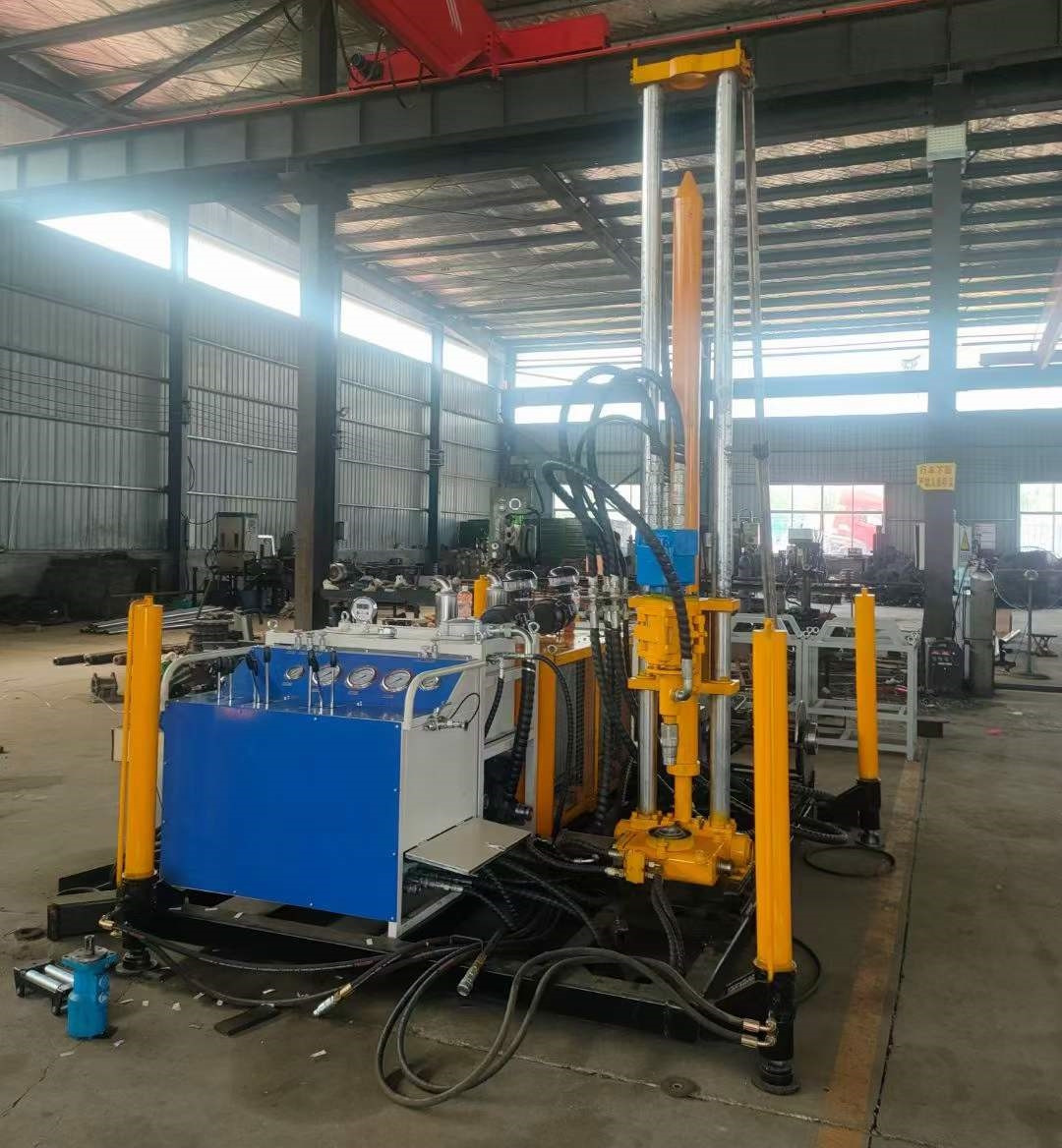

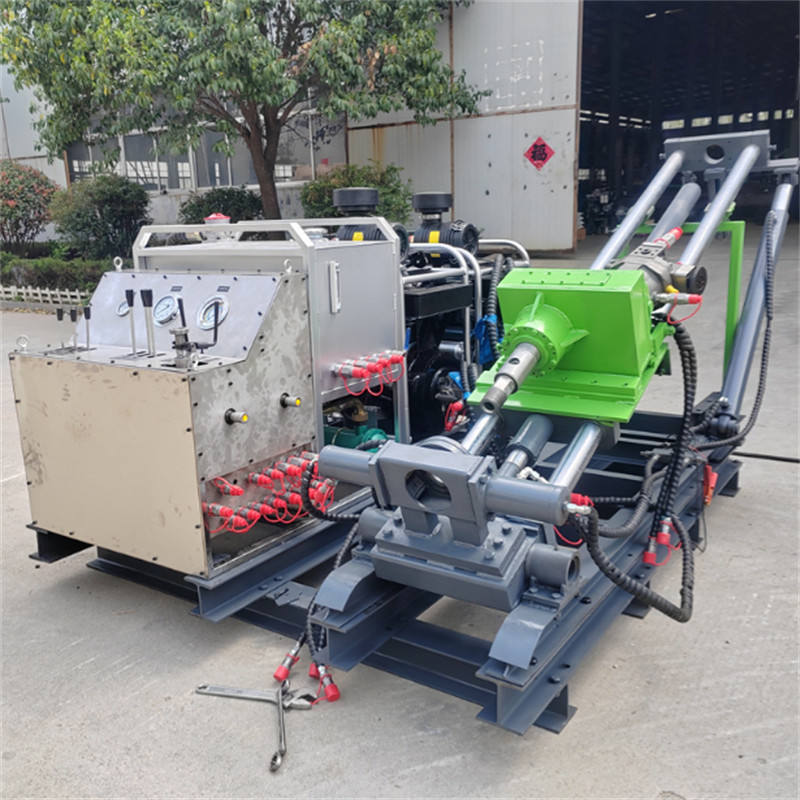

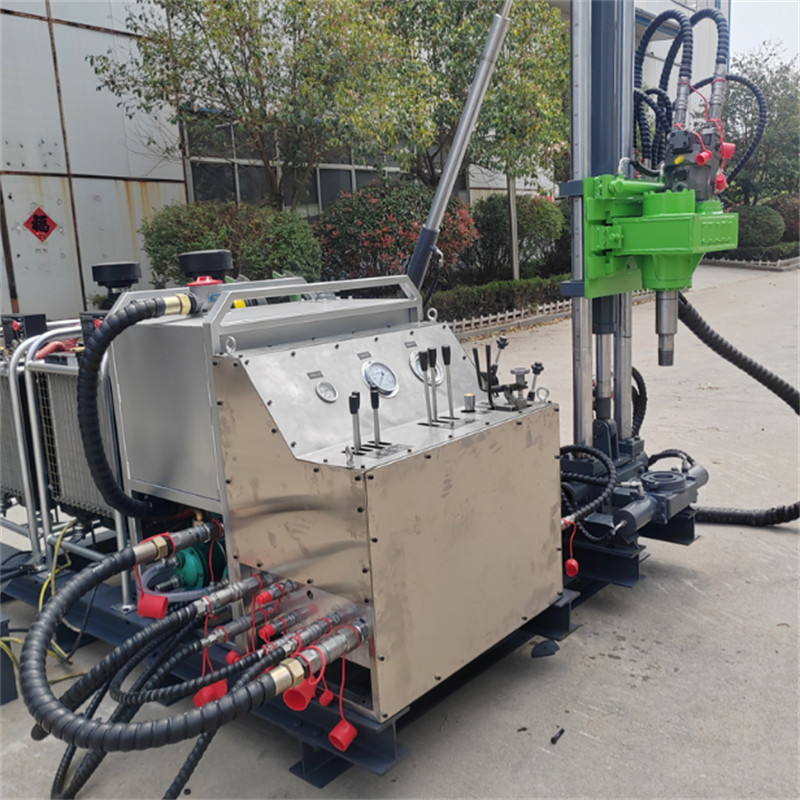

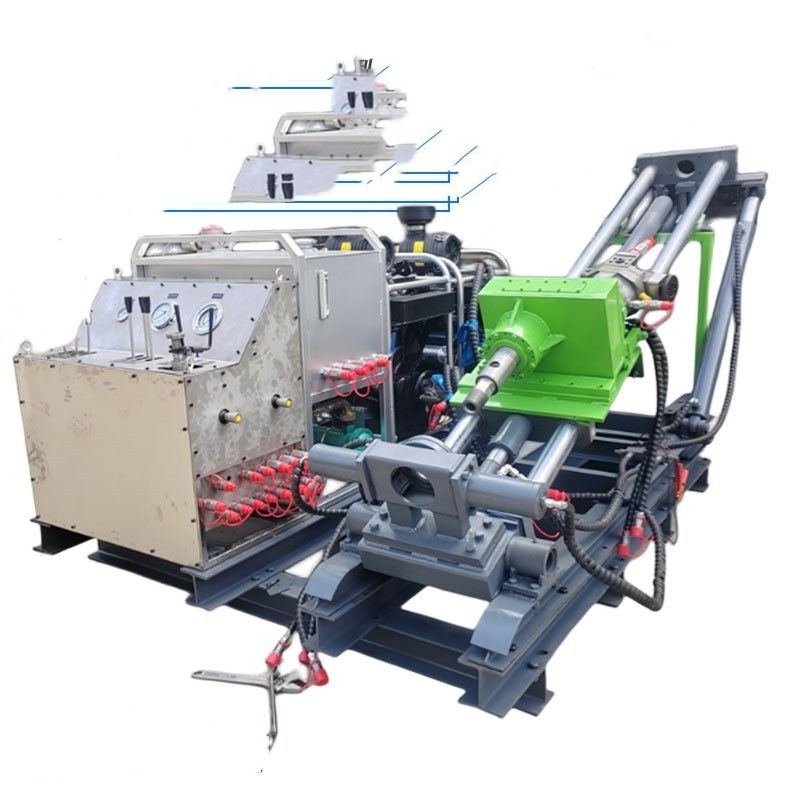

Wireline Mineral Exploration Diamond Drilling Rig Hydraulic For Mountainous Areas

Portable Fully Hydraulic Diamond Wireline Mineral Exploration and Coring Drilling Rig Suitable for Mountainous Areas Without Roads

portable core drilling rigs, including electric (E) and diesel (d) power stations. The structure is light and flexible, which is suitable for core exploration and construction in different geological and geomorphic environments. Hengwang Group F series portable core drilling rig adopts the most classic lightweight module design of portable drilling rig. The main structure is made of high-strength aviation aluminum alloy material, which greatly reduces the weight of the machine while ensuring high standard strength and toughness. The maximum module weight of the representative model is only 180kg, which is convenient for manual handling on site.

The XT series portable drilling rig adopts a modular design, which can realize rapid assembly and disassembly. The lightweight design is convenient for mountain transportation and reduces the initial preparation cost of the drilling rig. This drilling rig is suitable for geological exploration, geophysical exploration, road and building exploration and drilling projects such as blasting holes. Different core drill bits and core barrels can be selected for drilling according to different strata.

1. Equipped with hydraulic automatic feeding system to improve drilling efficiency and reduce labor intensity of workers;
2. Light weight modular design, the maximum weight of the unit is 200kg, which is convenient for handling and assembly;
3. The winch is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impacts;
4. Aero engine, stable performance, strong power and higher rotate speed;
5. Imported motor & oil pump, quick connector link, safe and reliable.

Modular portable drilling rig is an efficient and flexible drilling equipment that adopts modular design, allowing the rig to be quickly assembled and disassembled according to different work requirements. This drilling rig is not only easy to carry, but also adaptable to various complex environments, greatly improving the efficiency and convenience of drilling work.
