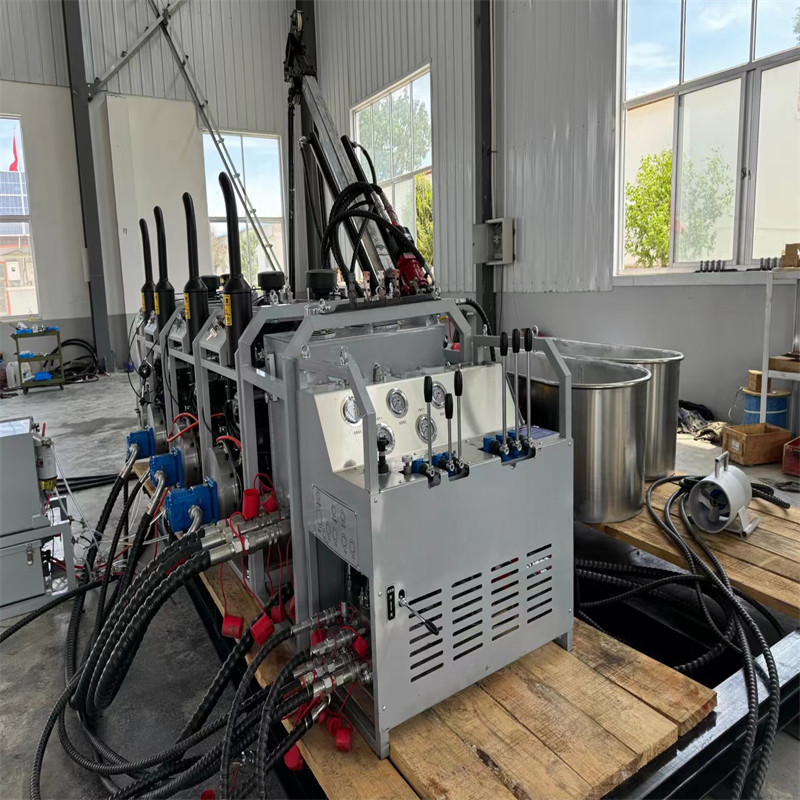

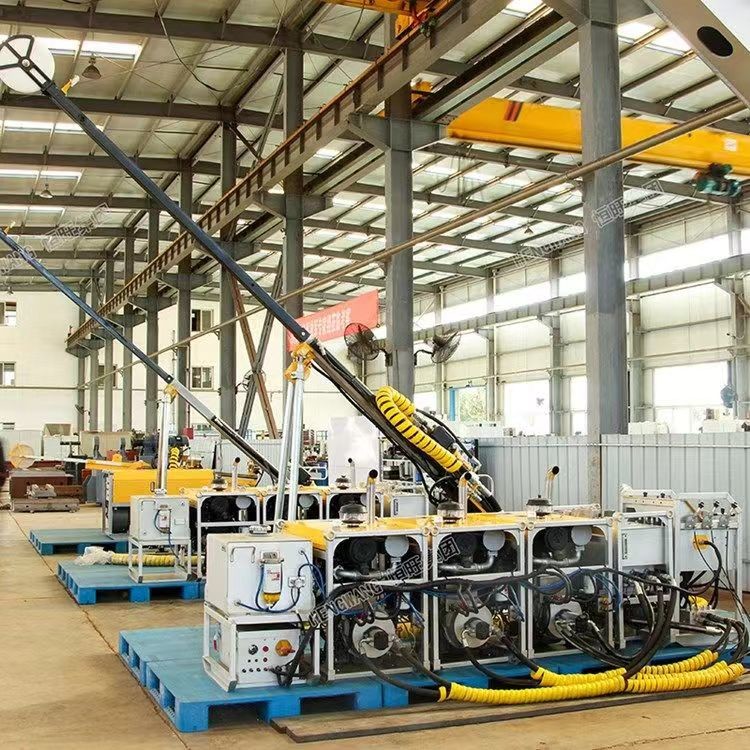

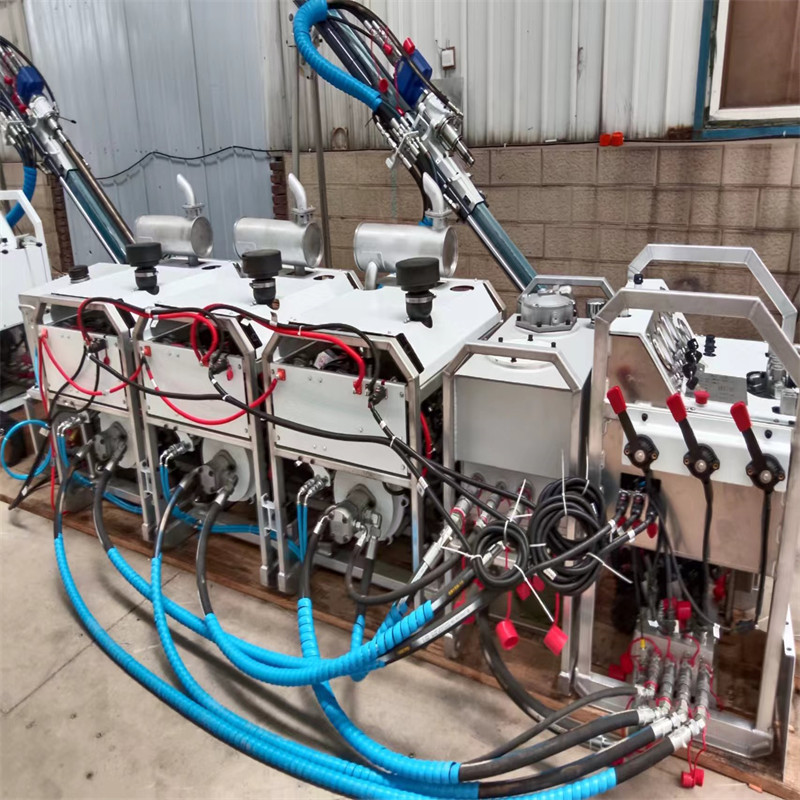

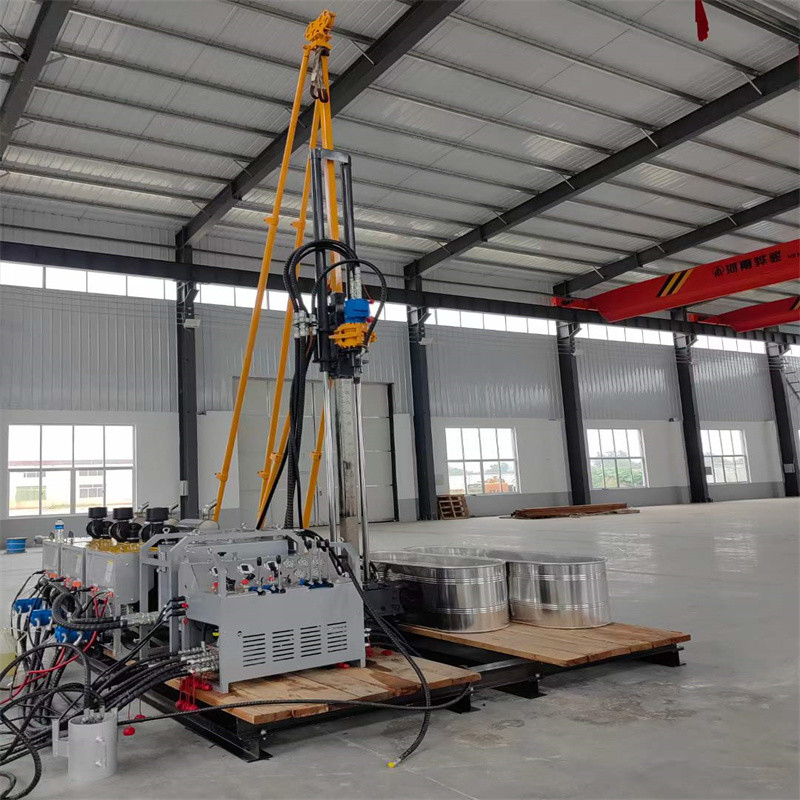

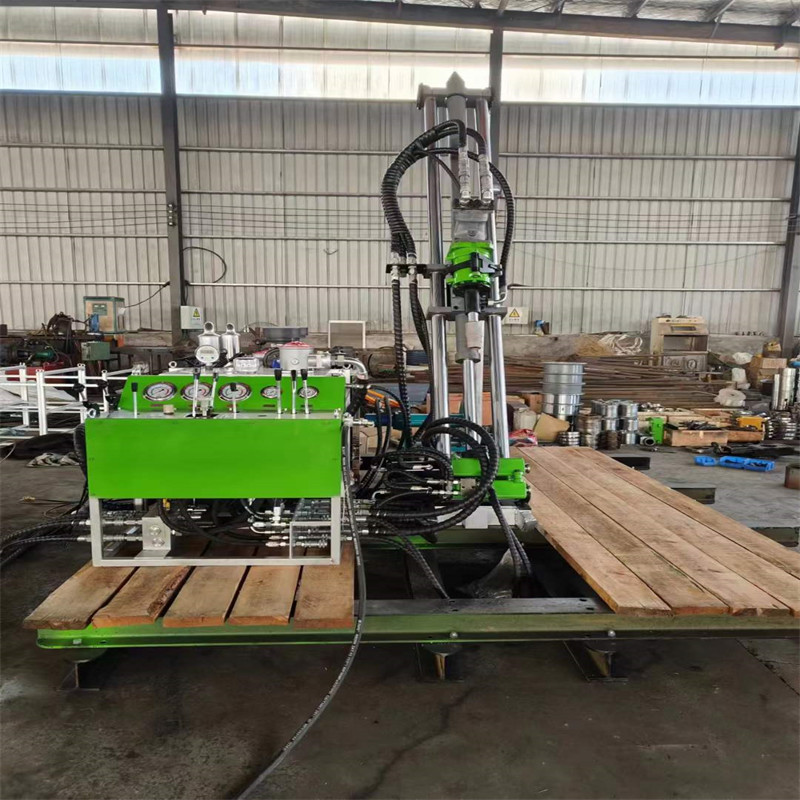

Hydraulic Rotary Diamond Core Drilling Rig for Geotechnical Investigation

Portable Full Hydraulic Rotary Head Mining Exploration Diamond Wireline Coring Drill Machine/Geotechnical Investigation Core Drilling Rig

The XT series portable drilling rig adopts a modular design, which can realize rapid assembly and disassembly. The lightweight design is convenient for mountain transportation and reduces the initial preparation cost of the drilling rig. This drilling rig is suitable for geological exploration, geophysical exploration, road and building exploration and drilling projects such as blasting holes. Different core drill bits and core barrels can be selected for drilling according to different strata.

1. Equipped with hydraulic automatic feeding system to improve drilling efficiency and reduce labor intensity of workers;
2. Light weight modular design, the maximum weight of the unit is 200kg, which is convenient for handling and assembly;
3. The winch is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impacts;
4. Aero engine, stable performance, strong power and higher rotate speed;
5. Imported motor & oil pump, quick connector link, safe and reliable.

Modular portable drilling rigs can be transported manually or by pack horses through small paths in areas with inconvenient transportation conditions, greatly saving customers investment in building temporary roads, shortening exploration periods, saving labor, and reducing handling risks and costs. The drilling rig is driven by hydraulic pressure, modular, structurally safe and reliable, easy to operate, reduces labor intensity, and is more user-friendly; The airport uses a 12V DC power supply for safer electricity usage; When relocating the machine, it is easy to disassemble and install, making it easy to move the drilling rig. The maximum weight of a single component in the drilling rig shall not exceed 180 kilograms, with a total weight of 1160 kilograms.
