Full Hydraulic Surface Geological Exploration Diamond Core Drilling Rig For Coal Gold Copper Iron Mining Project

1 Set
MOQ
Full Hydraulic Surface Geological Exploration Diamond Core Drilling Rig For Coal Gold Copper Iron Mining Project
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO: QYD-1000
Condition: New
Motor: Diesel Engine
Drill Hole Diameter: Bq, Nq, Hq, Pq
Drill Hole Depth: 300-1400M
Transport Way: Crawler
Bit Type: Diamond Bit
Drilling Way: Rotary
Drilling Capacity: Bq, Nq, Hq, Pq
After-sales Service: Provide Train Video Or Remote
Warranty: Main Parts Within Six Months
Highlight:

hydraulic diamond core drilling rig

,

hydraulic exploration diamond drilling rig

,

mining diamond core drilling rig

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: QYD-800
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Supply Ability: 30 Sets/Month
Product Description







Crawler Mounted Full Hydraulic Core Drill Rigs Exploration
Hydraulic Crawler drilling rig machine is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,sub grade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner,etc. Crawler drilling rig console and platform combination, easy to operate,with platform wide enough to enable the operator and the assistant to leave the mud appropriate height operations, folding walking platform, the control system to focus on the operation platform.

Core Drilling Rig Machine for Sale is suitable for drilling works such as core drilling, general exploration, geophysical exploration, road and building exploration, blasting hole drilling and so on.
1, With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
2, The use of ball clamping mechanism instead of chuck, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
3, With a hole-bottom pressure gauge, easy to control the situation in hole.
4, Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.
Model
QYD600
QYD800
QYD1000
Drilling Capacity
BTW (m)
650
1200
1400
NTW (m)
600
1000
1200
HTW (m)
300
800
1000
PQ (m)
200
600
800
Hydraulic Systems
Rated Pressure Mpa
32+16
32+16
32+16
Cooling Method
Air cooling + Water cooling
Air cooling + Water cooling
Air cooling + Water cooling
Engine Parameter
Model
Yuchai 4 Cylinder
Yuchai 6 Cylinder
Yuchai 6 Cylinder
Rated Speed Kw
92
92
129
Rated Speed rpm
2200
2200
2300
Power Head parameters
Maximum Torque N.m
1400
1800
2600
Maximum speed rpm
1400
1400
1400
Stroke / m
2
2
3.5
Lifting Force kN
240
300
360
Thrust kN
120
150
180
Parameters of Rope Coring Winch
Wire Rope Length Capacity m
800
1000
1200
Lifting Force kN
15
20
24
Lifting Speed m/min
110
110
110
Wire Rope Diameter/mm
5
5
6
Mast Parameters
Height/m
6.1
6.1
7.9
Drilling Angle°
45-90
45-90
35-90
Slip Stroke mm
800
800
1200
Gripper Parameters
BQ/NQ/HQ/PQ
130mm
130mm
Track Parameters
Maximum climbing angle°
20
20
20
Maximum Walking Speed km/h
2
2
2
Package Size
L*W*H mm
4500*1900*2650
4500*2100*2800
5600*2200*3000
Weight(t)
4.5
6
7.3
Note: The above parameters are standard parameters, if there are changes, the actual product shall prevail.

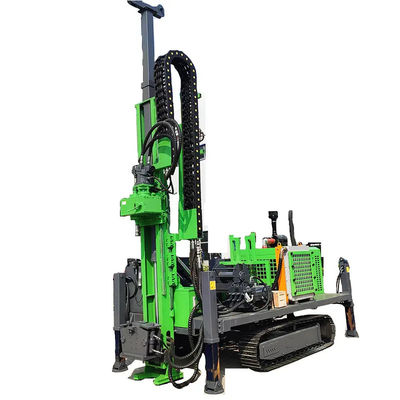

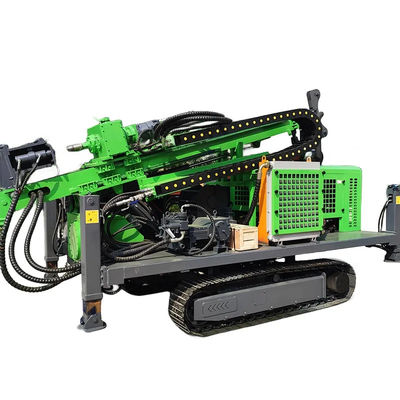

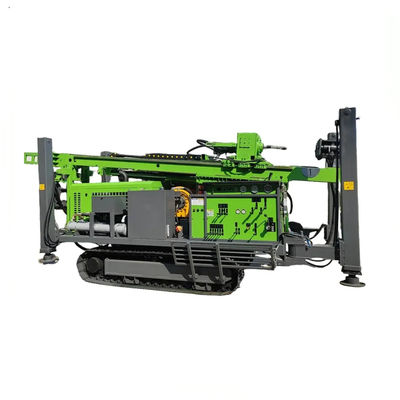

Full Hydraulic Surface Geological Exploration Diamond Core Drilling Rig For Coal Gold Copper Iron Mining Project 0Full Hydraulic Surface Geological Exploration Diamond Core Drilling Rig For Coal Gold Copper Iron Mining Project 1Full Hydraulic Surface Geological Exploration Diamond Core Drilling Rig For Coal Gold Copper Iron Mining Project 2

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.



The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed grouting machines, mud stations, sprayers, Lurong test packers and Lurong test equipment, diamond drill bits, hole extenders, geological drill rods and casings, exploration drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.



Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.



We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
