Full Hydraulic Rock Diamond Core Drill Rig For Geological Exploration

1 Set
MOQ
Full Hydraulic Rock Diamond Core Drill Rig For Geological Exploration
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO: QYD-800
Condition: New
Motor: Diesel Engine
Drill Hole Diameter: Bq, Nq, Hq, Pq
Drill Hole Depth: 300-1400M
Transport Way: Crawler
Bit Type: Diamond Bit
Drilling Way: Rotary
Drilling Capacity: Bq, Nq, Hq, Pq
After-sales Service: Provide Train Video Or Remote
Warranty: Main Parts Within Six Months
Highlight:

Rock Diamond Core Drill Rig

,

Hydraulic Diamond Core Drill Rig

,

Geological Exploration Core Drill Rig

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: QYD-800
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Supply Ability: 30 Sets/Month
Product Description

Diamond Core Drill Rig Rock Drill For Geological Exploration Portable Rock Drilling Machine Full Hydraulic





Full hydraulic core drilling rig is a new type of drilling rig developed by our company on the basis of referring to the advanced technology of similar drilling rigs at home and abroad. It is mainly suitable for the drilling of solid mineral deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and can also be used for engineering drilling such as tunnel ventilation, drainage, and dam grouting. The drilling rig is driven by full hydraulic pressure, the rotation of the power head is driven by an axial plunger pump and an inclined-axis plunger motor, two mechanical gears plus stepless speed regulation, and an advanced structure. The power head adopts an oil cylinder chain double-speed feeding mechanism, which is stable and reliable in movement, and has a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and fall to slide as a whole, and can drill holes within the range of 0-90°. The hydraulic system adopts load sensitive control, with high working efficiency and large torque. The drilling rig is equipped with hydraulic trojan grippers, hydraulic leveling legs, retractable mast and other devices to facilitate the rapid positioning of the drilling rig. Equipped with wireless remote control crawler, it is suitable for various terrains and controls the crawling of the drilling rig within a safe distance to prevent sudden danger.
Model
QYD600
QYD800
QYD1000
Drilling Capacity
BTW (m)
650
1200
1400
NTW (m)
600
1000
1200
HTW (m)
300
800
1000
PQ (m)
200
600
800
Hydraulic Systems
Rated Pressure Mpa
32+16
32+16
32+16
Cooling Method
Air cooling + Water cooling
Air cooling + Water cooling
Air cooling + Water cooling
Engine Parameter
Model
Yuchai 4 Cylinder
Yuchai 6 Cylinder
Yuchai 6 Cylinder
Rated Speed Kw
92
92
129
Rated Speed rpm
2200
2200
2300
Power Head parameters
Maximum Torque N.m
1400
1800
2600
Maximum speed rpm
1400
1400
1400
Stroke / m
2
2
3.5
Lifting Force kN
240
300
360
Thrust kN
120
150
180
Parameters of Rope Coring Winch
Wire Rope Length Capacity m
800
1000
1200
Lifting Force kN
15
20
24
Lifting Speed m/min
110
110
110
Wire Rope Diameter/mm
5
5
6
Mast Parameters
Height/m
6.1
6.1
7.9
Drilling Angle°
45-90
45-90
35-90
Slip Stroke mm
800
800
1200
Gripper Parameters
BQ/NQ/HQ/PQ
130mm
130mm
Track Parameters
Maximum climbing angle°
20
20
20
Maximum Walking Speed km/h
2
2
2
Package Size
L*W*H mm
4500*1900*2650
4500*2100*2800
5600*2200*3000
Weight(t)
4.5
6
7.3
Note: The above parameters are standard parameters, if there are changes, the actual product shall prevail.

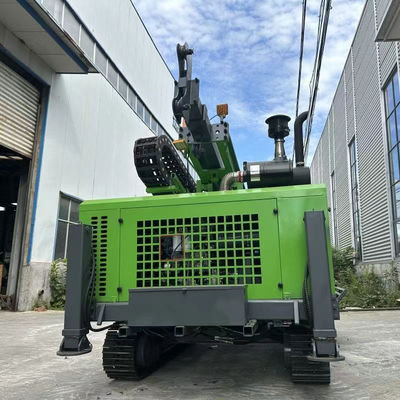

Full Hydraulic Rock Diamond Core Drill Rig For Geological Exploration 0

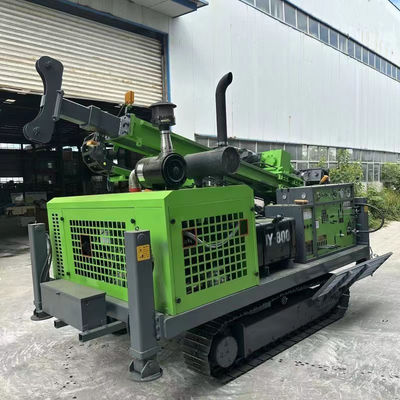

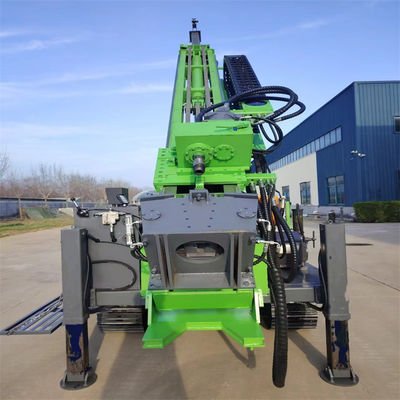

Full Hydraulic Rock Diamond Core Drill Rig For Geological Exploration 1Full Hydraulic Rock Diamond Core Drill Rig For Geological Exploration 2
FAQ:

1. What are our payment methods?

100% prepayment for small sample orders., Prepay 30% deposit for bulk products and pay the remaining 70% before shipment.

2. How to transport products?

Express delivery, air freight, sea freight, train, etc.

3. How to place an order?

Please provide us with the required specifications, models, and quantities, and we will create a PI to confirm the order details. Once we have confirmed everything, we can arrange for payment and finally ship within the time frame we have specified.

4.How is the quality of your machines?

Our products undergo strict quality inspections before leaving the factory to ensure they are qualified before shipment.

5. How to inspect the goods?

1) Support customers to come to the factory for on-site inspection.

2) Support customers to designate third-party companies for inspection.

3) Support video inspection.

6.Do you have after-sales service?

Yes, we have a dedicated service team to provide you with professional technical guidance. If needed, we can send engineers to your workplace and provide training for your employees.

7.How about quality assurance?

We provide a one-year quality guarantee for the host of the machine.
